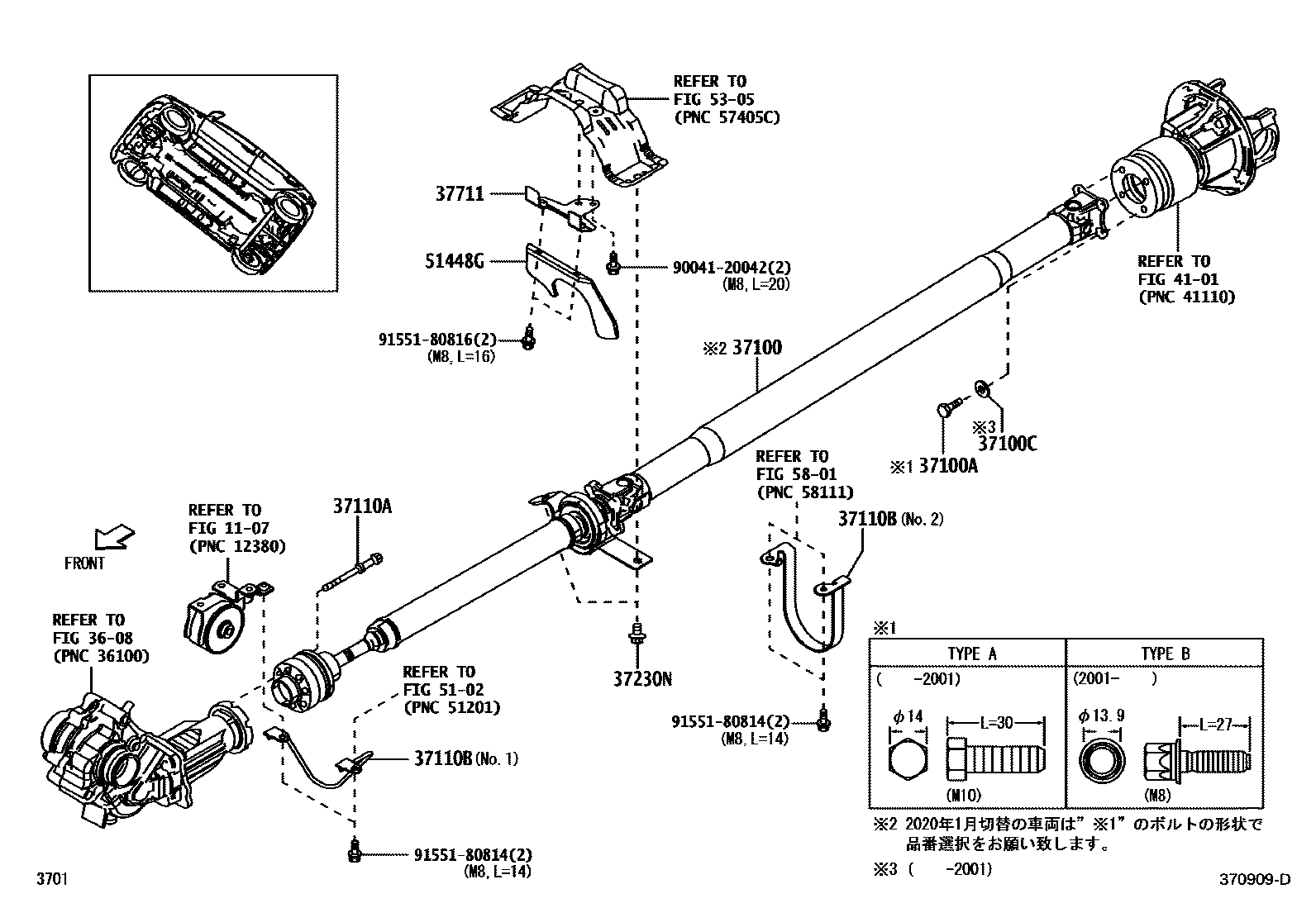

PROPELLER SHAFT & UNIVERSAL JOINT

1107MOUNTING

→ Go to FIG 11-07

3608TRANSFER ASSEMBLY & GASKET KIT

→ Go to FIG 36-08

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-B2151iLA360201705-202001

main37100-B2152iLA360202001

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90041-01681×4iLA360201705-202001

main90041-B9060×4iLA360202001

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90042-06065×4iLA360201705-202001

37110ABOLT (FOR PROPELLER SHAFT)

main90041-01684×4iLA360..B,G,L,X201705

37110BGUARD, PROPELLER SHAFT

main51569-B2010iLA360..B,G,L,X201705

main51569-B2040iLA360..B,G,L,X201705

37230NBOLT, NO.2 (FOR CENTER SUPPORT BEARING)

main90041-20226×2iLA360201705-201803

main91651-61020×2iLA360201804

37711BRACKET, PROPELLER SHAFT DUST COVER, NO.1

main37711-B2020iLA360..B,G,L,X201705

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51448GPROTECTOR, PROPELLER SHAFT

main51448-B2020iLA360..B,G,L,X201705

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9004120042

main90041-20042

9155180814

main91551-80814

9155180816

main91551-80816

17 parts on this diagram · 1 diagram in section
