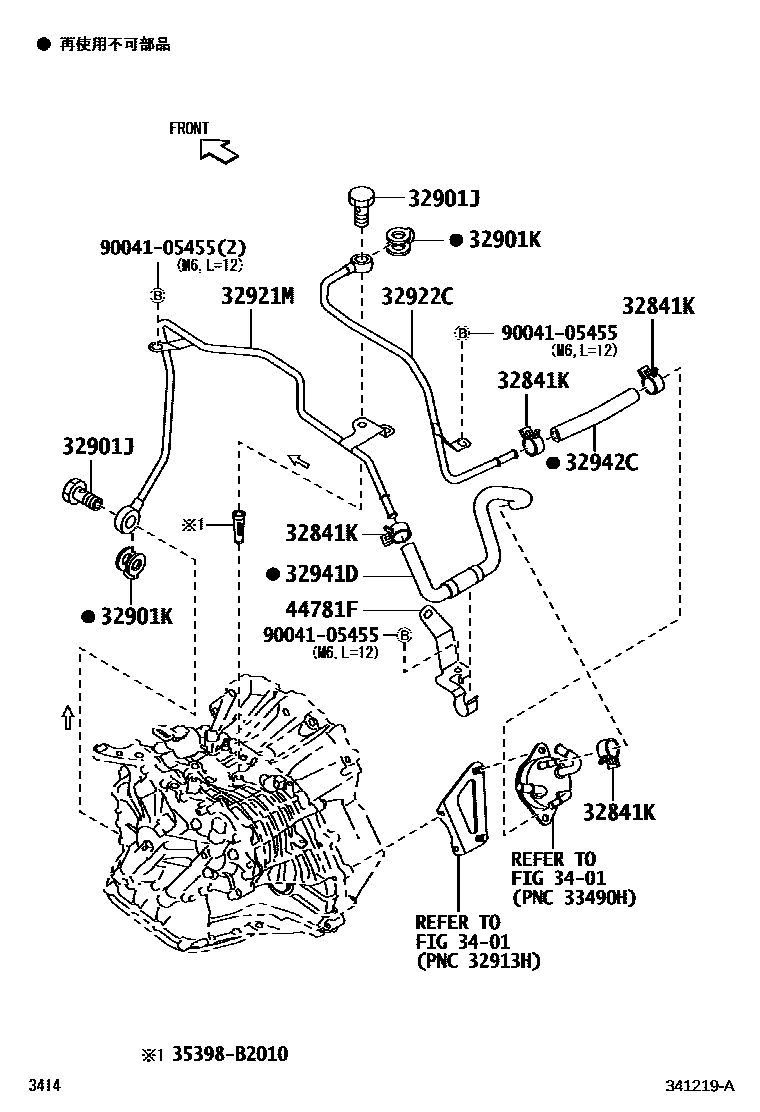

OIL COOLER & TUBE(CVT)

32841KCLIP, NO.1(FOR OIL COOLER HOSE)

main90044-67590×4iLA350,360201705

32901JBOLT, UNION(FOR OIL COOLER)

main90044-01081×2iLA350,360201705

32901KGASKET(FOR OIL COOLER UNION)

main90044-30329×2iLA350,360201705

32921MTUBE, OIL COOLER INLET, NO.1

main32904-B2070iLA350,360201705

32922CTUBE, OIL COOLER OUTLET, NO.1

main32905-B2080iLA350,360201705

32941DHOSE, OIL COOLER INLET

main32941-B2120iLA350,360201705

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-B2130iLA350,360201705

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

44781FBRACKET, HOSE CLAMP

main44781-B2020iLA350,360201705

35398B2010STRAINER, LUBRICATION OIL

main35398-B2010

9004105455

main90041-05455
