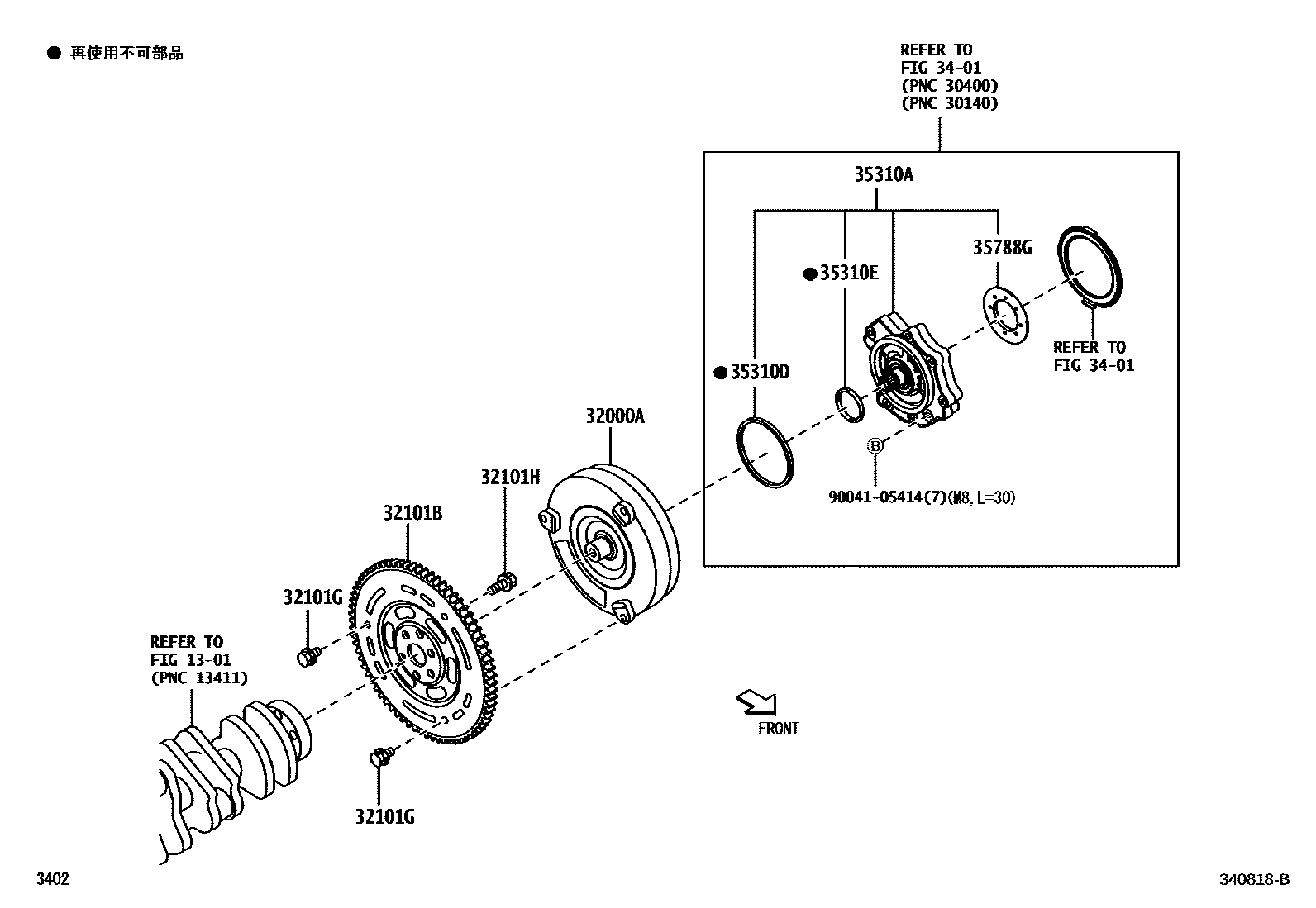

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

32000ACONVERTER ASSY, TORQUE

main32000-B2080iLA350,360201705

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-B2021iLA350,360201705

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05280iLA350,360201705-201908

main90041-05281×2iLA350,360201705-201908

main90041-05595iLA350,360201909

main90041-05596×2iLA350,360201909

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90048-01037×6iLA350,360201705

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-B9051iLA350,360201705-201909

main35310-B9052iLA350,360201910

35310DRING, O (FOR FRONT OIL PUMP)

main90043-01332iLA350,360201705

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main90043-11423iLA350,360201705

35788GRACE, THRUST BEARING

main35789-B2061iLA350,360201705

main35789-B2071iLA350,360201705

main35789-B2081iLA350,360201705

main35789-B2091iLA350,360201705

main35789-B2101iLA350,360201705

main35789-B2111iLA350,360201705

9004105414

main90041-05414

11 parts on this diagram · 1 diagram in section
