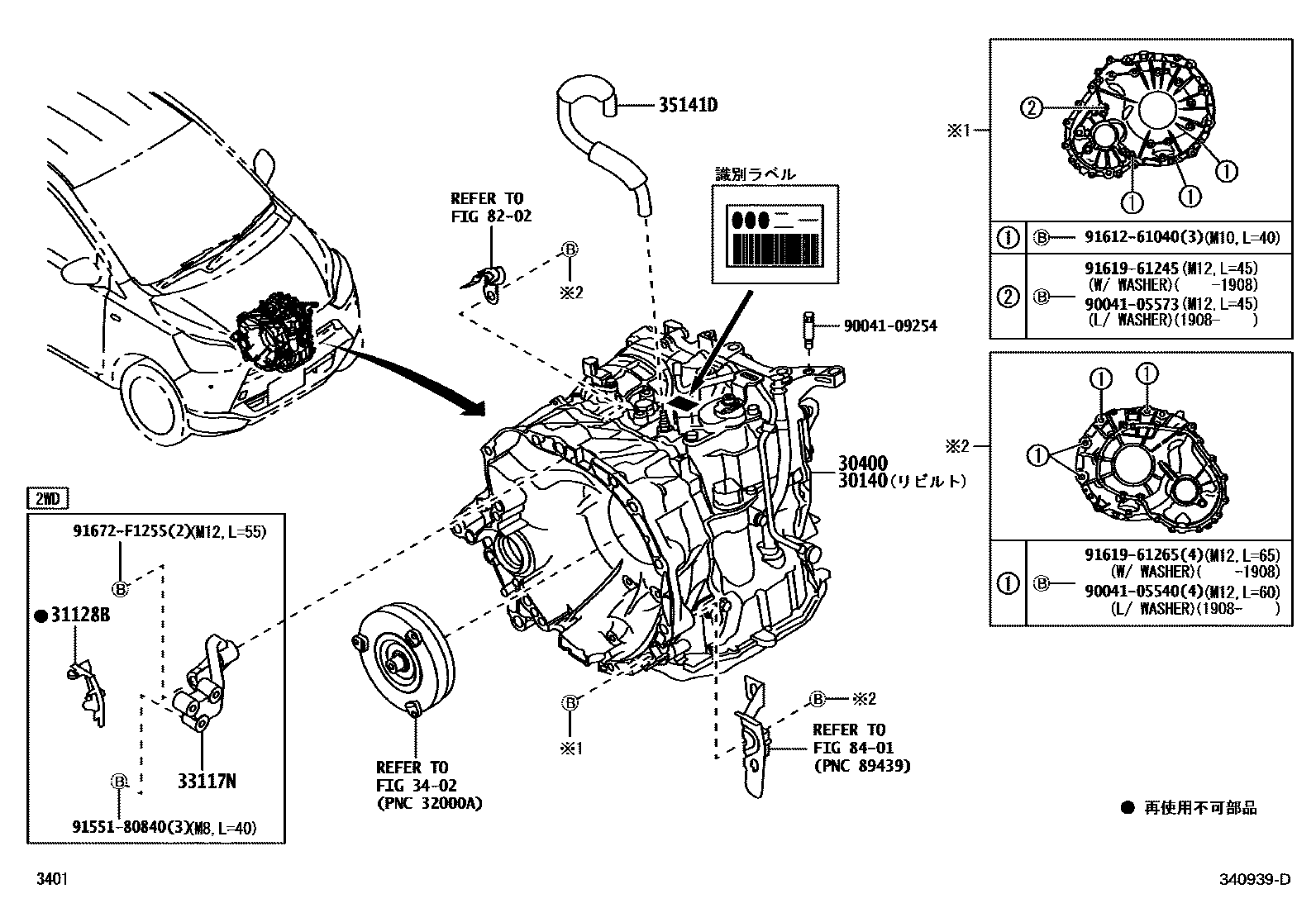

TRANSAXLE ASSY(CVT)

0001 1ILLUST NO.1 OF 5 0002 1ILLUST NO.2 OF 5 0003 1ILLUST NO.3 OF 5 0004 1ILLUST NO.4 OF 5 0005 1ILLUST NO.5 OF 5

30140TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)

main30140-B0670iLA350201705

main30140-B0680iLA360201705

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-B2670iLA350201705

main30400-B2680iLA360201705

31128BCOVER, CLUTCH HOUSING UNDER

main31128-B2060iLA350201705

33117NBRACKET, STIFFENER PLATE

main33117-B2050iLA350..B,G,L,X201705

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

35141DHOSE(FOR BREATHER PLUG)

main35121-B2070iLA350,360201705-202004

main35121-B2080iLA350,360202005

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105540

main90041-05540

9004105573

main90041-05573

9004109254

main90041-09254

9155180840

main91551-80840

9161261040

main91612-61040

9161961245

main91619-61245

9161961265

main91619-61265

91672F1255

main91672-F1255

16 parts on this diagram · 5 diagrams in section
