STARTER

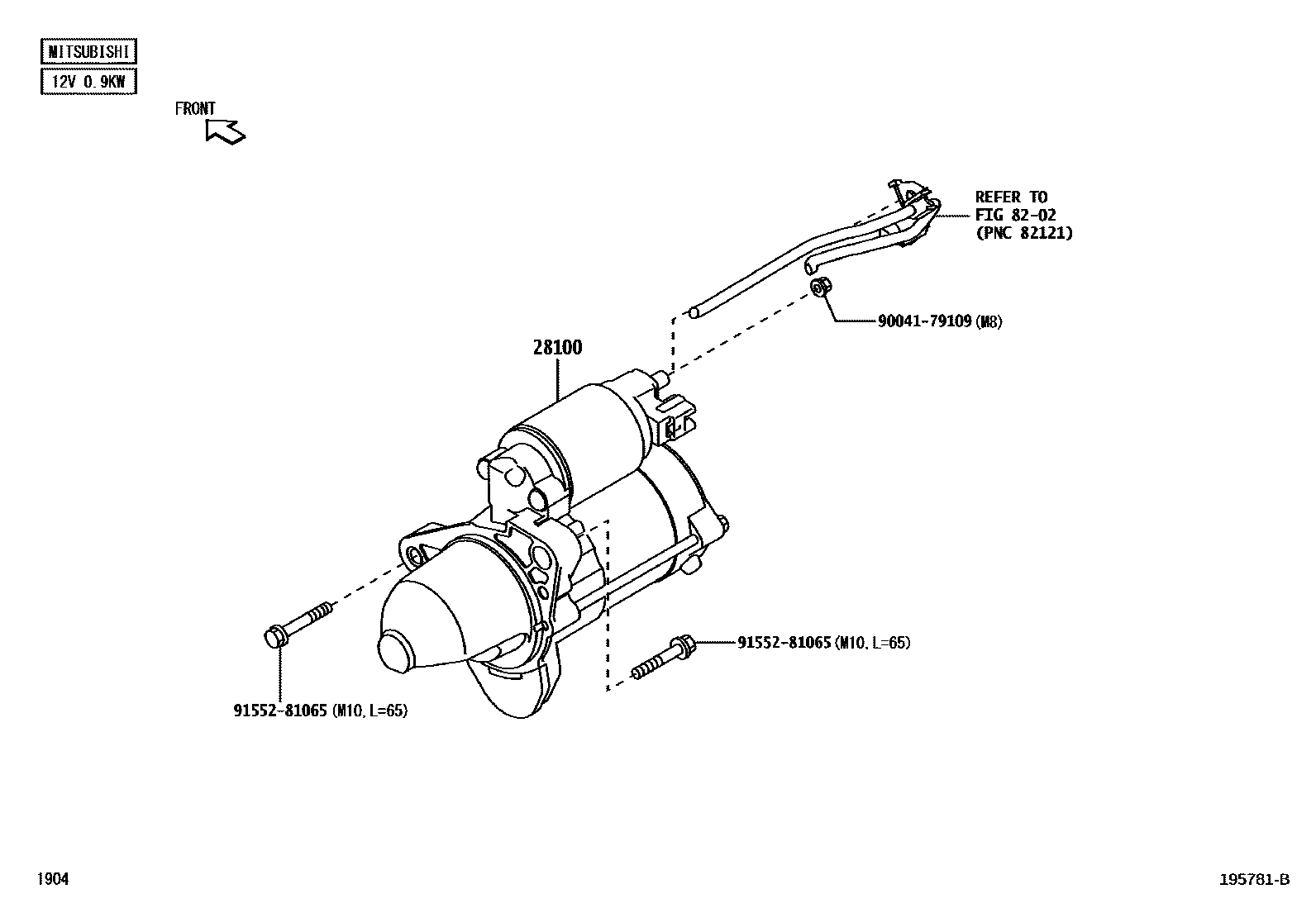

Parts diagram

28100STARTER ASSY

main28100-B2272i201705-201807

main28100-B2280i201705-202007

main28100-B2281i202008

8202WIRING & CLAMP

→ Go to FIG 82-02

9004179109

main90041-79109

9155281065

main91552-81065

4 parts on this diagram · 2 diagrams in section
