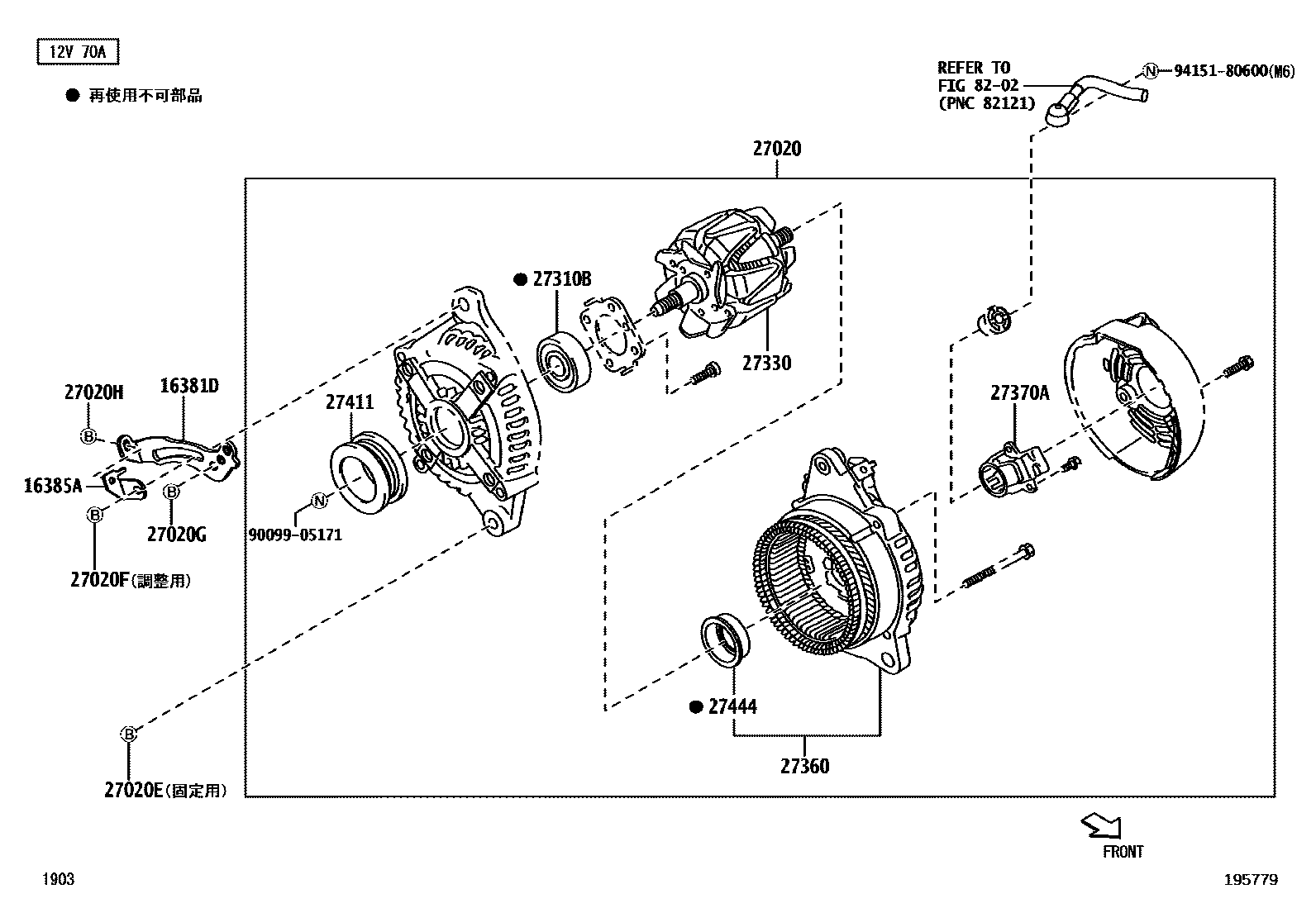

ALTERNATOR

16381DBAR, FAN BELT ADJUSTING

main16381-B2011iKFVE..LA350,360..B,G,L,X201705

16385ASLIDER, FAN BELT ADJUSTING

main16385-B2021iKFVE..LA350,360..B,G,L,X201705

27020ALTERNATOR ASSY

main27060-B2150iKFVE..LA350,360201705-202310

main27060-B2151iKFVE..LA350,360202311

27020EBOLT(FOR ALTERNATOR)

main91552-81075iKFVE..LA350,360201705

27020FBOLT, NO.1(FOR ALTERNATOR)

main90041-20195iKFVE..LA350,360201705-201906

main90041-20345iKFVE..LA350,360201907

27020GBOLT, NO.2(FOR ALTERNATOR)

main91671-80825iKFVE..LA350,360201705

27020HBOLT, NO.3(FOR ALTERNATOR)

main90041-05403iKFVE..LA350,360201705

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main9004C-37002iKFVE..LA350,360..B,G,L,X201705

27330ROTOR ASSY, ALTERNATOR

main27330-B5010iKFVE..LA350,360201705

27360COIL ASSY, ALTERNATOR

main27360-B2010iKFVE..LA350,360..B,G,L,X201705

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-B2020iKFVE..LA350,360..B,G,L,X201705

27411PULLEY, ALTERNATOR

main27411-B2010iKFVE..LA350,360201705

27444PACKING, ALTERNATOR BEARING COVER

main27444-B1010iKFVE..LA350,360..B,G,L,X201705

8202WIRING & CLAMP

→ Go to FIG 82-02

9009905171

main90099-05171

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
