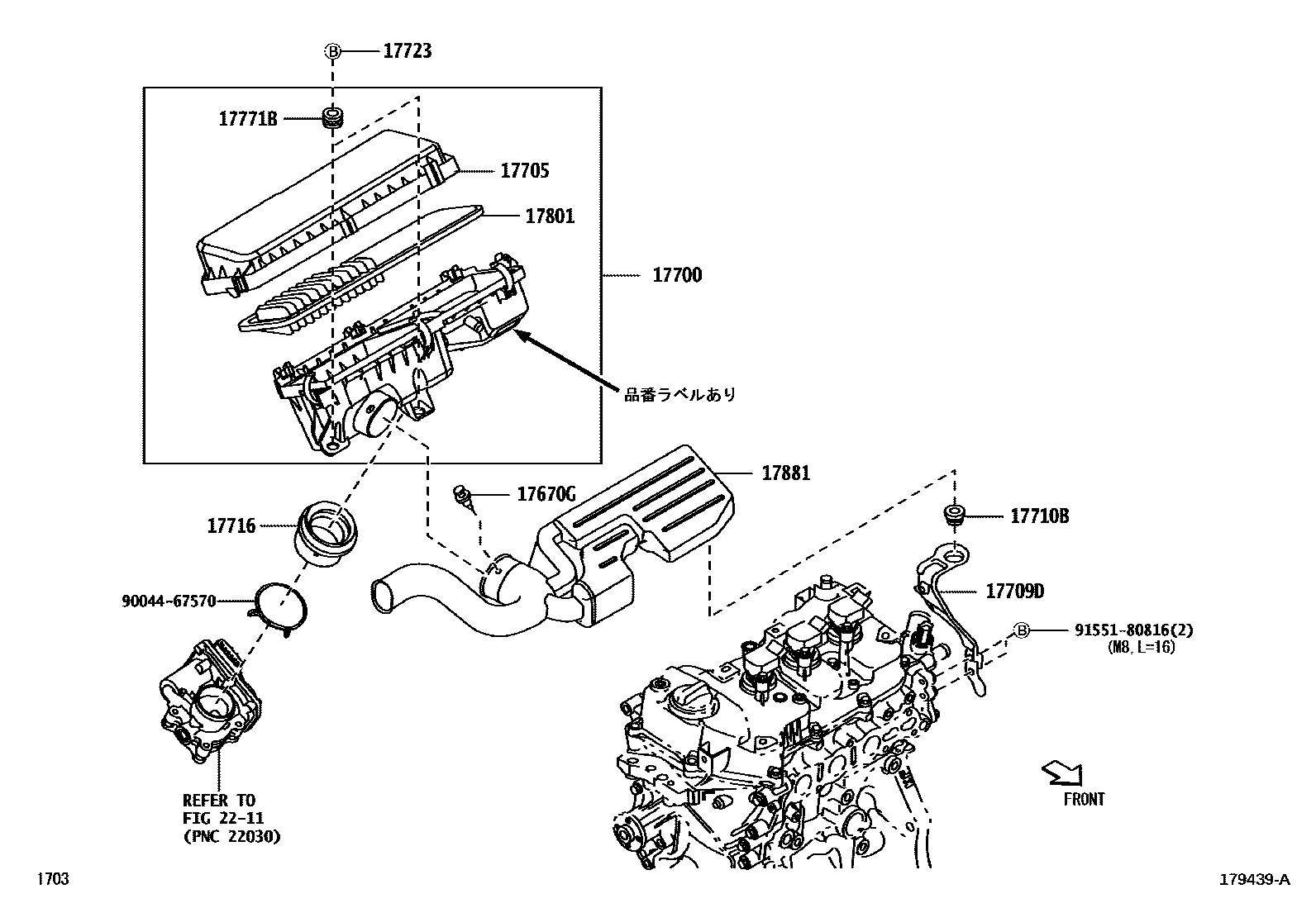

AIR CLEANER

17670GCLIP(FOR AIR HOSE NO.1)

main90044-67568iKFVE..LA350,360..B,G,L,X201705

17700CLEANER ASSY, AIR

main17700-B2200iKFVE..LA350,360..B,G,L,X201705

17705CAP SUB-ASSY, AIR CLEANER

main17705-B2170iKFVE..LA350,360..B,G,L,X201705

17709DBRACKET, AIR CLEANER INLET, NO.1

main53763-B2030iKFVE..LA350,360..B,G,L,X201705

17710BGROMMET

main90044-80598iKFVE..LA350,360..B,G,L,X201705

17716SUPPORT,AIR CLEANER CAP

main17716-B2020iKFVE..LA350,360..B,G,L,X201705

17723BOLT, AIR CLEANER CAP

main90041-19A42×2iKFVE..LA350,360201910

main90041-20322×2iKFVE..LA350,360201705-201909

17771BGROMMET(FOR AIR CLEANER BRACKET)

main90044-80673×2iKFVE..LA350,360..B,G,L,X201705

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-B2090iKFVE..LA350,360..B,G,L,X201705

17881HOSE, AIR CLEANER, NO.1

main17881-B2110iKFVE..LA350,360..B,G,L,X201705

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9004467570

main90044-67570

9155180816

main91551-80816

13 parts on this diagram · 1 diagram in section
