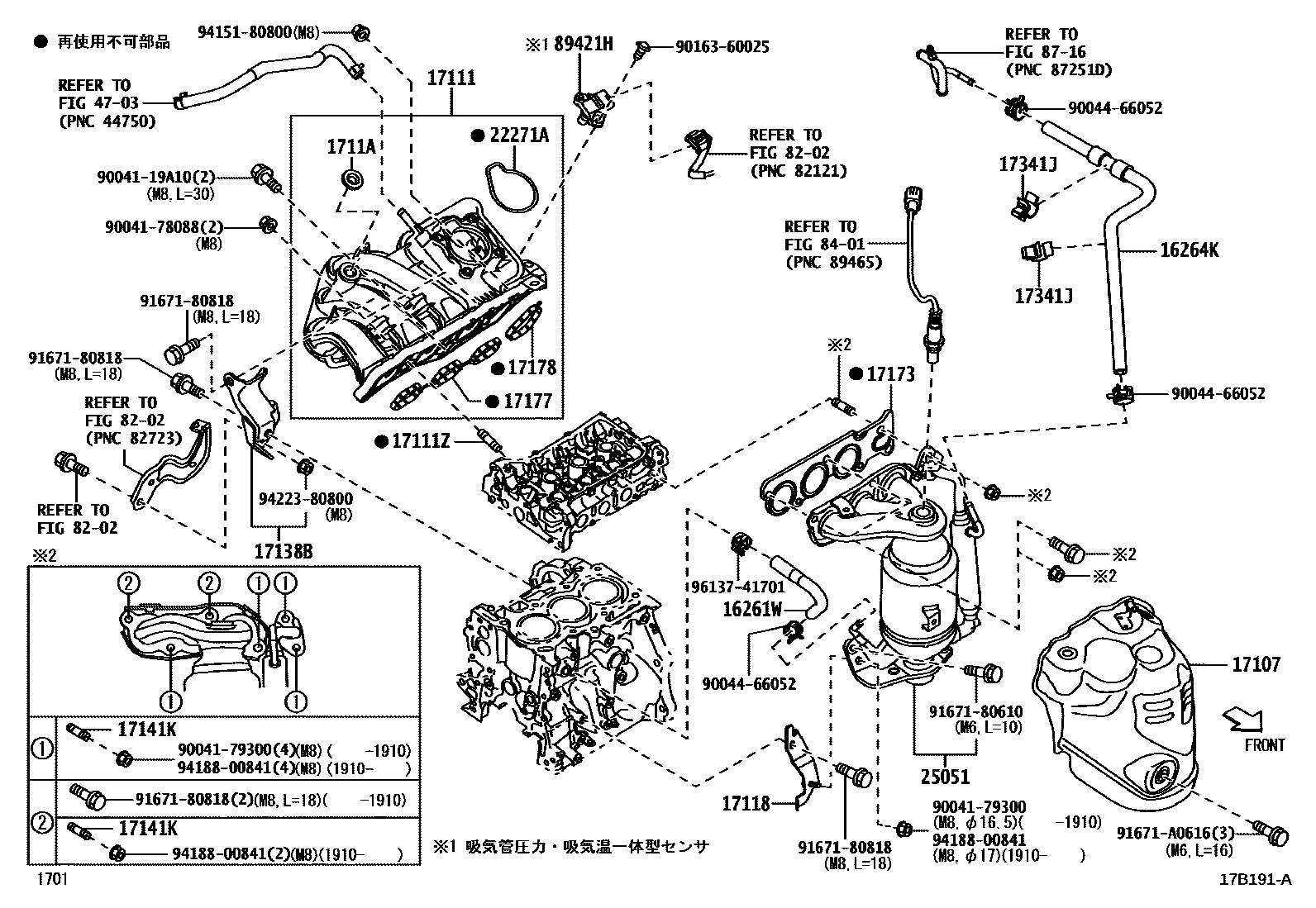

MANIFOLD

16261WHOSE, WATER BY-PASS, NO.1

main16261-B2210iKFVE..LA350,360201705

16264KHOSE, WATER BY-PASS, NO.2

main16264-B2080iKFVE..LA350,360201705

17107INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT

main17107-B2080iKFVE..LA350,360201705-201706

main17107-B2081iKFVE..LA350,360201706-201908

main17107-B2082iKFVE..LA350,360201909

17111MANIFOLD, INTAKE

main17120-B2130iKFVE..LA350,360201705-202207

main17120-B2190iKFVE..LA350,360202207

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90041-26003×3iKFVE..LA350,360201705-202006

main90041-26013×3iKFVE..LA350,360202007

17118STAY, MANIFOLD

main17118-B2080iKFVE..LA350,360201705-201709

main17118-B2081iKFVE..LA350,360201710

1711AGROMMET

main90044-80676iKFVE..LA350,360201705

17138BSTAY, INTAKE MANIFOLD

main17138-B2050iKFVE..LA350,360201705

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90041-16487×4iKFVE..LA350,360201705-201910

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-B2060iKFVE..LA350,360201705

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-B2050iKFVE..LA350,360201705

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-B2010iKFVE..LA350,360201705

17341JCLAMP, HOSE

main90044-64886×2iKFVE..LA350,360201705

22271AGASKET, THROTTLE BODY

main22271-B2030iKFVE..LA350,360201705

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-B2470iKFVE..LA350,360201705

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

89421HSENSOR, VACUUM

main89421-B2040iLA350,360201705

9004119A10

main90041-19A10

9004178088

main90041-78088

9004179300

main90041-79300

9004466052

main90044-66052

9016360025

main90163-60025

9167180610

main91671-80610

9167180818

main91671-80818

91671A0616

main91671-A0616

9415180800

main94151-80800

9418800841

main94188-00841

9422380800

main94223-80800

9613741701

main96137-41701

32 parts on this diagram · 1 diagram in section
