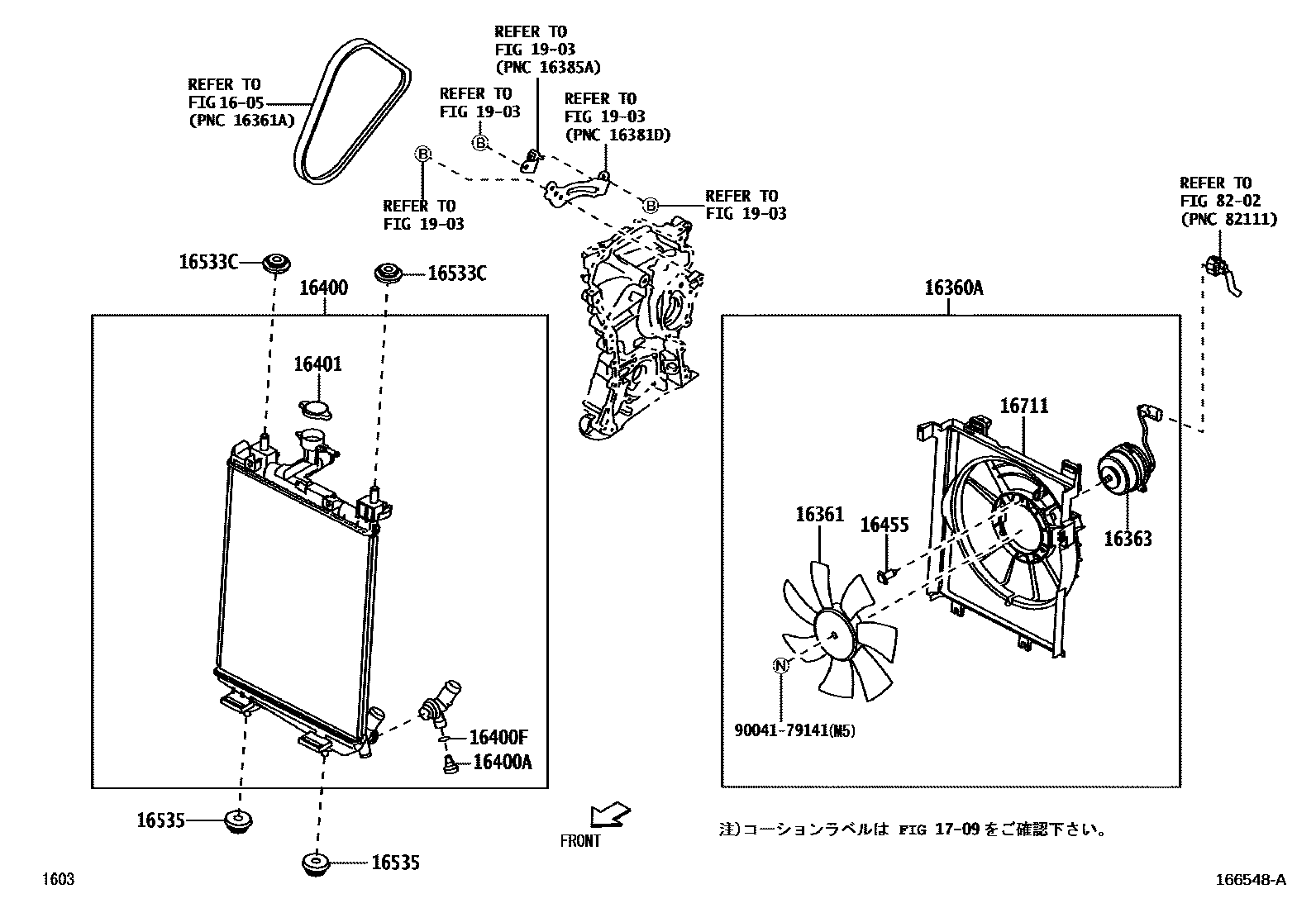

RADIATOR & WATER OUTLET

0001 1������ 0002 1���

1605V-BELT

→ Go to FIG 16-05

16360AFAN ASSY, W/MOTOR

main16360-B2220iKFVE..LA350,360201705-202304

main16360-B2221iKFVE..LA350,360202305

16361FAN

main16361-B2070iKFVE..LA350,360201705

16363MOTOR, COOLING FAN

main16363-B2040iKFVE..LA350,360201705

16400RADIATOR ASSY

main16400-B2350iKFVE..LA350,360..B,G,L,X201705

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-B2010iKFVE..LA350,360..B,G,L,X201705

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16442-97201iKFVE..LA350,360..B,G,L,X201705

16401CAP SUB-ASSY, RADIATOR

main16401-87211iKFVE..LA350,360..B,G,L,X201705

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main16672-87201×3iKFVE..LA350,360201705

16533CGROMMET(FOR RADIATOR SUPPORT)

main90044-80621×2iKFVE..LA350,360..B,G,L,X201705

16535SUPPORT, RADIATOR, LOWER

main90044-80592×2iKFVE..LA350,360..B,G,L,X201705

16711SHROUD, FAN

main16711-B2120iKFVE..LA350,360201705

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

1903ALTERNATOR

→ Go to FIG 19-03

8202WIRING & CLAMP

→ Go to FIG 82-02

9004179141

main90041-79141

16 parts on this diagram · 2 diagrams in section
