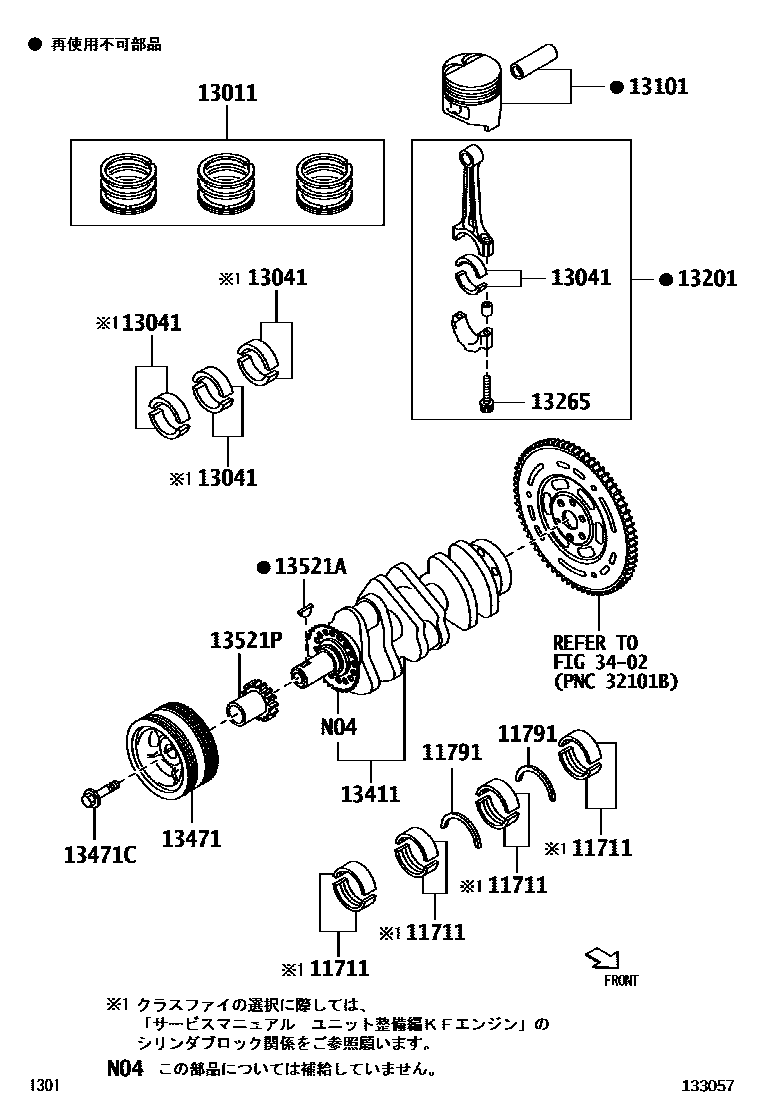

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-B2011-02×4iKFVE..LA350,360201705-201903

main11701-B2011-03×4iKFVE..LA350,360201705-201903

main11701-B2011-04×4iKFVE..LA350,360201705-201903

main11701-B2011-05×4iKFVE..LA350,360201705-201903

main11701-B2040-02×4iKFVE..LA350,360201903

main11701-B2040-03×4iKFVE..LA350,360201903

main11701-B2040-04×4iKFVE..LA350,360201903

main11701-B2040-05×4iKFVE..LA350,360201903

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B2020×2iKFVE..LA350,360..B,G,L,X201705

13011RING SET, PISTON

main13011-B2043iKFVE..LA350,360201705-202108

main13011-B2150iKFVE..LA350,360202108

13041BEARING, CONNECTING ROD

main13041-B2010-01×3iKFVE..LA350,360201705

main13041-B2010-02×3iKFVE..LA350,360201705

main13041-B2010-03×3iKFVE..LA350,360201705

13101PISTON SUB-ASSY, W/PIN

main13101-B2210×3iKFVE..LA350,360..B,G,L,X201705

13201ROD SUB-ASSY, CONNECTING

main13201-B9060×3iKFVE..LA350,360..B,G,L,X201705

13265BOLT, CONNECTING ROD

main13265-B9020×6iKFVE..LA350,360..B,G,L,X201705

13411CRANKSHAFT

main13401-B2010iKFVE..LA350,360201705-201902

main13401-B2050iKFVE..LA350,360201903

13471PULLEY, CRANKSHAFT

main13470-B2060iKFVE..LA350,360..B,G,L,X201705

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90041-05369iKFVE..LA350,360201705-201812

main90041-05587iKFVE..LA350,360201901

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90042-80034iKFVE..LA350,360..B,G,L,X201705

13521PPULLEY, CRANKSHAFT TIMING

main13521-B2020iKFVE..LA350,360..B,G,L,X201705

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

13 parts on this diagram · 1 diagram in section
