CYLINDER BLOCK

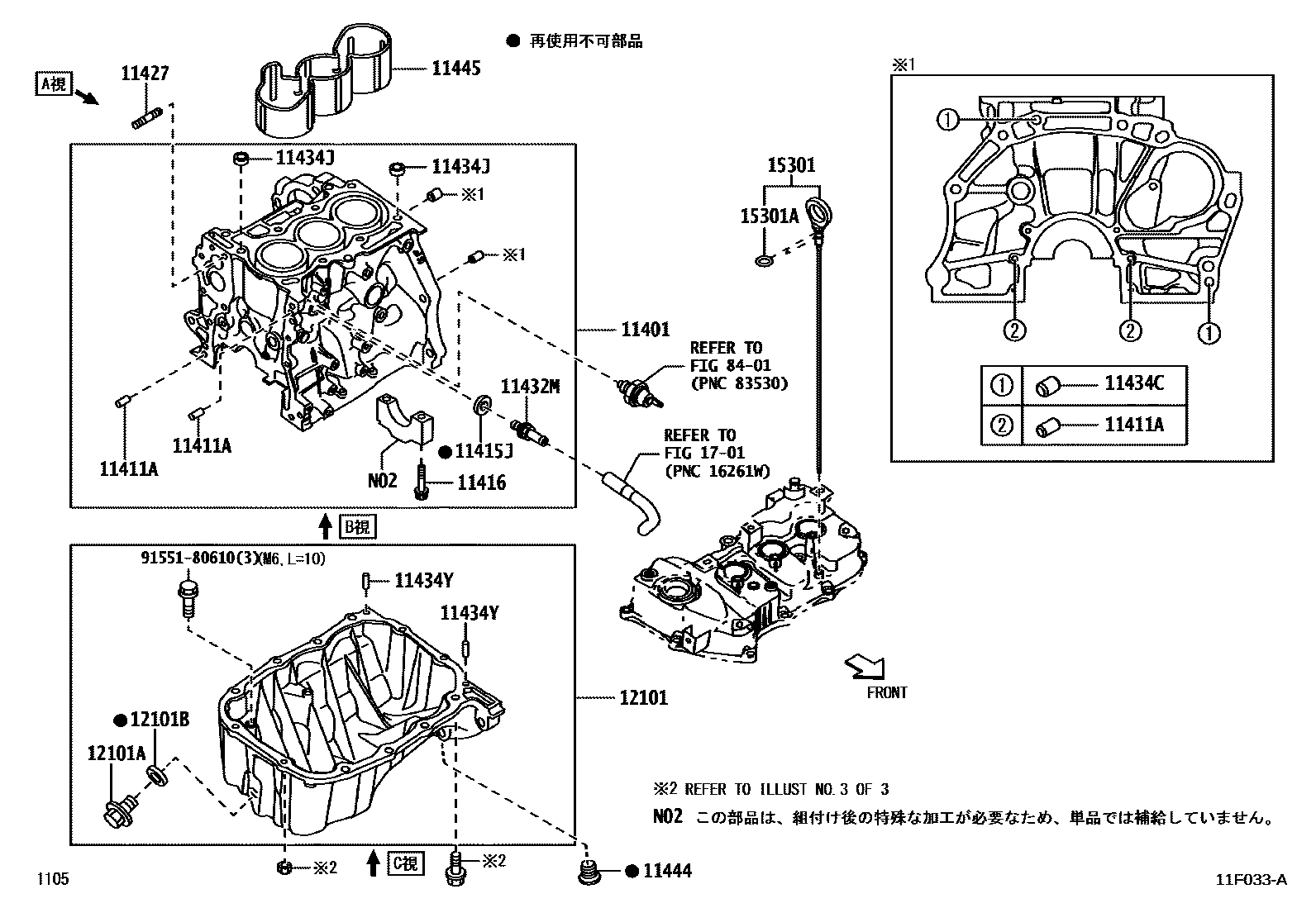

0001 1ILLUST NO.1 OF 3 0002 1ILLUST NO.2 OF 3 0003 1ILLUST NO.3 OF 3

11401BLOCK SUB-ASSY, CYLINDER

main11401-B2190iKFVE..LA350,360201705

11411APIN, RING(FOR CYLINDER BLOCK NO.1 )

main90042-50122×4iKFVE..LA350,360201705

11415JGASKET(FOR DRAIN COCK)

main90044-30279iKFVE..LA350,360201705

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90041-05368×8iKFVE..LA350,360201705

11427BOLT, STUD(FOR TIMING CHAIN COVER SET)

main90041-16498iKFVE..LA350,360201705

11432MUNION(FOR CYLINDER BLOCK)

main90044-04158iKFVE..LA350,360201705

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90042-50207×2iKFVE..LA350,360201705

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90042-53013×2iKFVE..LA350,360201705

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-06003×2iKFVE..LA350,360201705

11444PLUG, HOLE

main11444-B2010×2iKFVE..LA350,360201705

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-B2030iKFVE..LA350,360201705

12101PAN SUB-ASSY, OIL

main12101-B2025iKFVE..LA350,360201705

12101APLUG(FOR OIL PAN DRAIN)

main90043-41087iKFVE..LA350,360201705

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90044-30281iKFVE..LA350,360201705

15301GAGE SUB-ASSY, OIL LEVEL

main15301-B2061iKFVE..LA350,360201705

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005×2iKFVE..LA350,360201705

1701MANIFOLD

→ Go to FIG 17-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9155180610

main91551-80610

19 parts on this diagram · 3 diagrams in section
