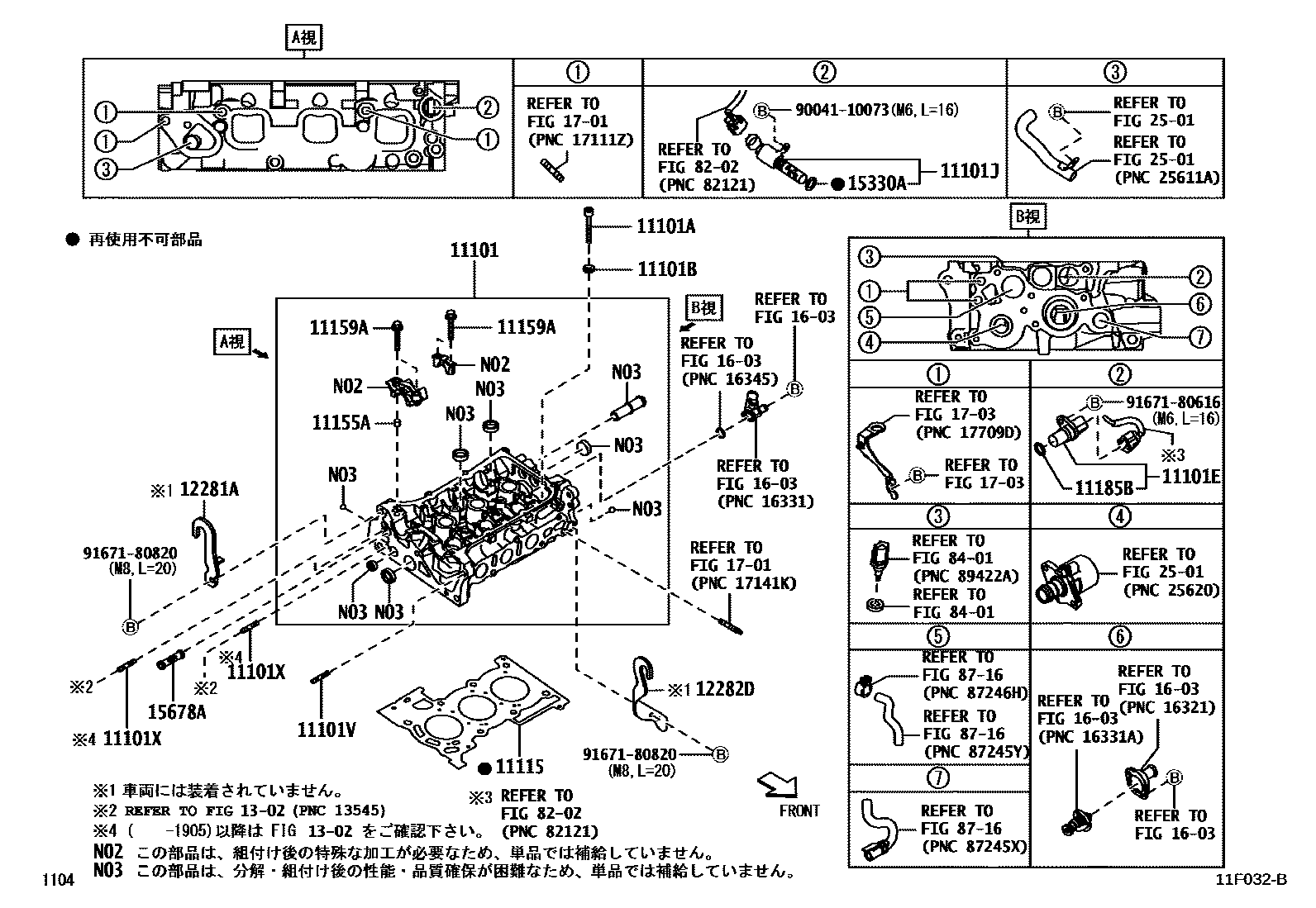

CYLINDER HEAD

0001 1��������� 0002 1�������������

11101HEAD SUB-ASSY, CYLINDER

main11101-B2250iKFVE..LA350,360201705

11101ABOLT(FOR CYLINDER HEAD SET)

main90041-09258×8iKFVE..LA350,360..B,G,L,X201705

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90042-01637×8iKFVE..LA350,360..B,G,L,X201705

11101ESENSOR, CAM POSITION

main19311-B2011iKFVE..LA350,360..B,G,L,X201705

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-B2040iKFVE..LA350,360..B,G,L,X201705

11101VBOLT(FOR CYLINDER HEAD SET SUB)

main92132-81040iKFVE..LA350,360..B,G,L,X201705

11101XBOLT(FOR CYLINDER HEAD SET SUB)

main92122-80630×2iKFVE..LA350,360201705-202008

11115GASKET, CYLINDER HEAD

main11115-B2042iKFVE..LA350,360..B,G,L,X201705

11155APIN, RING W/HEAD

main90042-53010×2iKFVE..LA350,360..B,G,L,X201705

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90041-19911×16iKFVE..LA350,360..B,G,L,X201705

11185BRING, O

main9004C-30008iKFVE..LA350,360201705

12281AHANGER, ENGINE, NO.1

main12281-B2010iKFVE..LA350,360201705-202309

main12281-B2030iKFVE..LA350,360202309

12282DHANGER, ENGINE, NO.2

main12282-B2060iKFVE..LA350,360201705-202311

main12282-B2130iKFVE..LA350,360202312

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90043-01262iKFVE..LA350,360..B,G,L,X201705

15678AFILTER, OIL CONTROL VALVE

main15678-B2020iKFVE..LA350,360..B,G,L,X201705

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9004110073

main90041-10073

9167180616

main91671-80616

9167180820

main91671-80820

26 parts on this diagram · 2 diagrams in section
