STANDARD TOOL

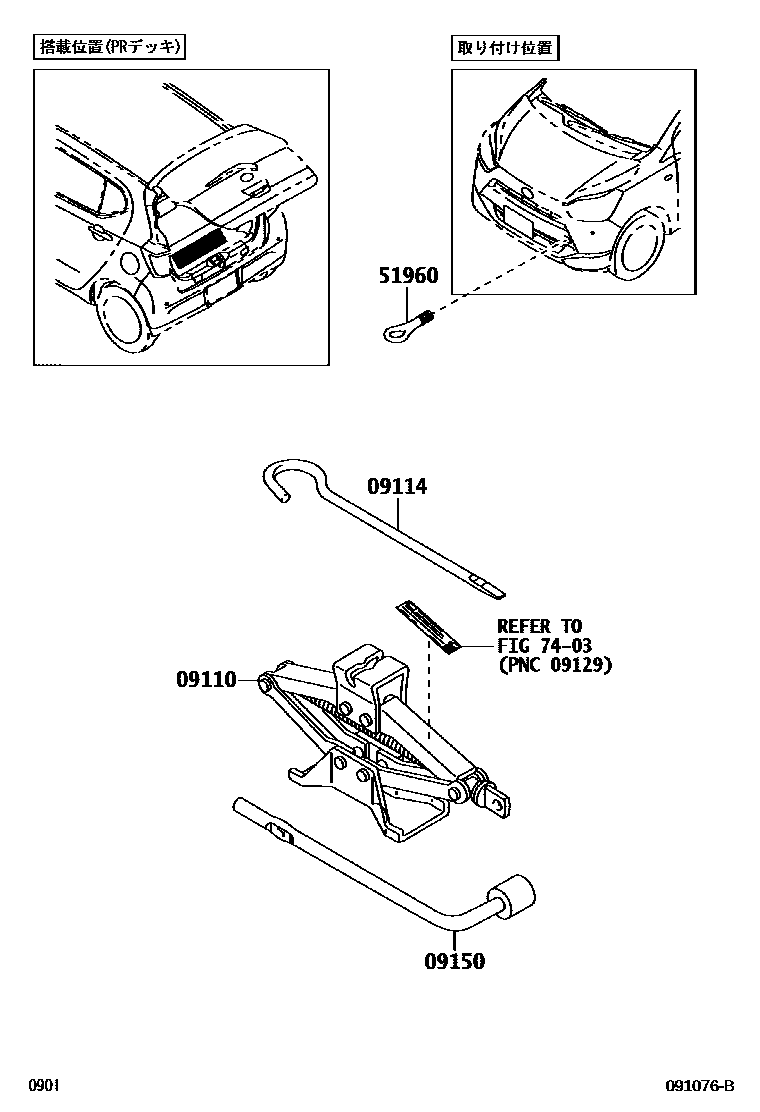

Parts diagram

09110JACK ASSY

main09111-B2010i201705-201712

main09111-B2011i201801

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-B1010i201705

09150WRENCH, HUB NUT BOX

main09151-B1010i201705

51960HOOK ASSY, FRONT

main51961-B1040i201705

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

5 parts on this diagram · 2 diagrams in section
