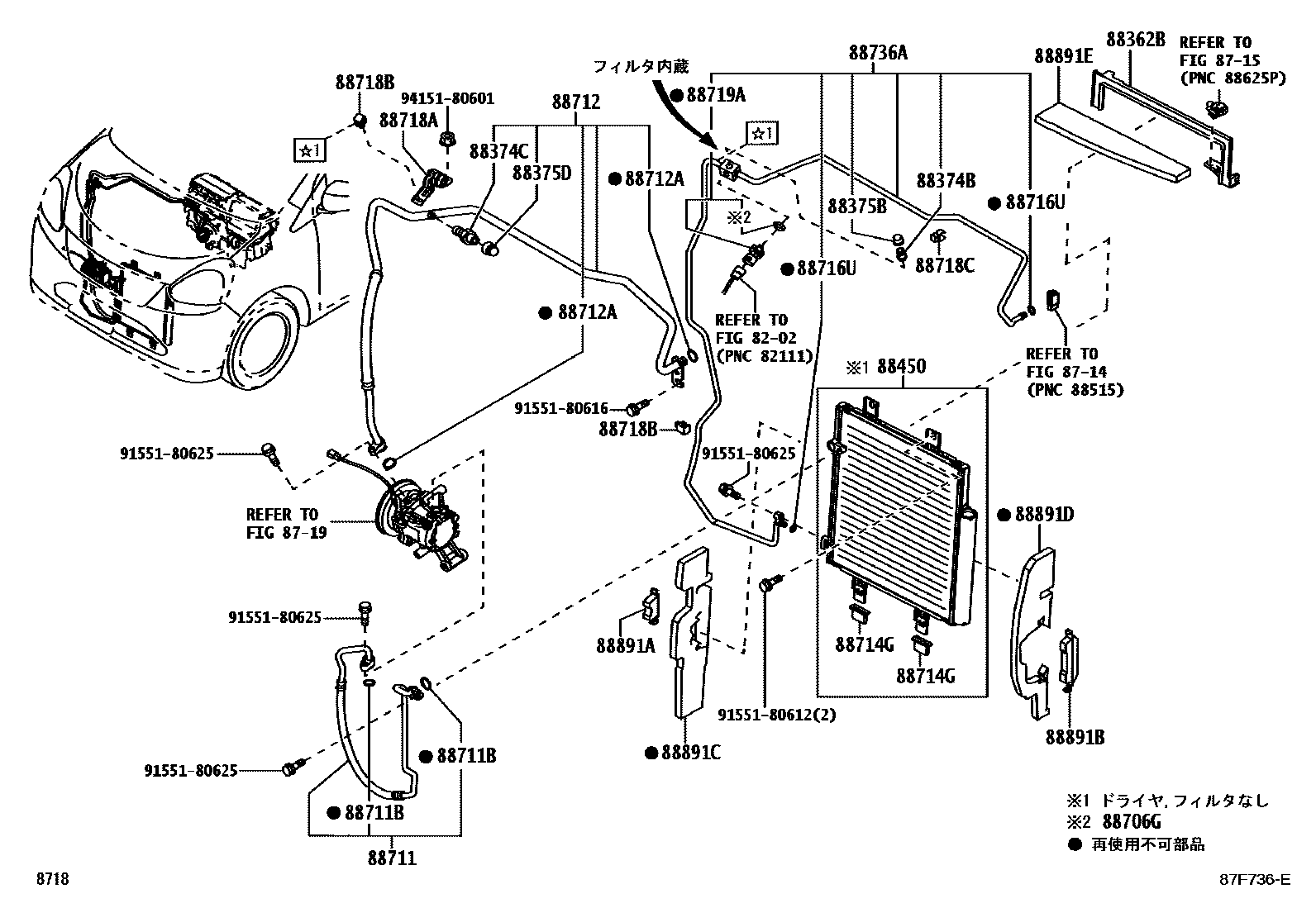

HEATING & AIR CONDITIONING - COOLER PIPING
8202WIRING & CLAMP
8714HEATING & AIR CONDITIONING - COOLER UNIT
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88450CONDENSER ASSY, W/RECEIVER
88706GRING, O(FOR LIQUID TUBE)
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711BRING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88714GINSULATOR, COOLER REFRIGERANT PIPE, NO.1
88716URING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88719ASENSOR, AIR CONDITIONER PRESSURE
88736ATUBE, LIQUID, A(FOR COOL BOX)
88891APACKING A (FOR COOLER)
88891BPACKING B (FOR COOLER)
88891EPACKING E (FOR COOLER)
9155180612
main91551-80612
9155180616
main91551-80616
9155180625
main91551-80625
9415180601
main94151-80601
31 parts on this diagram · 2 diagrams in section
