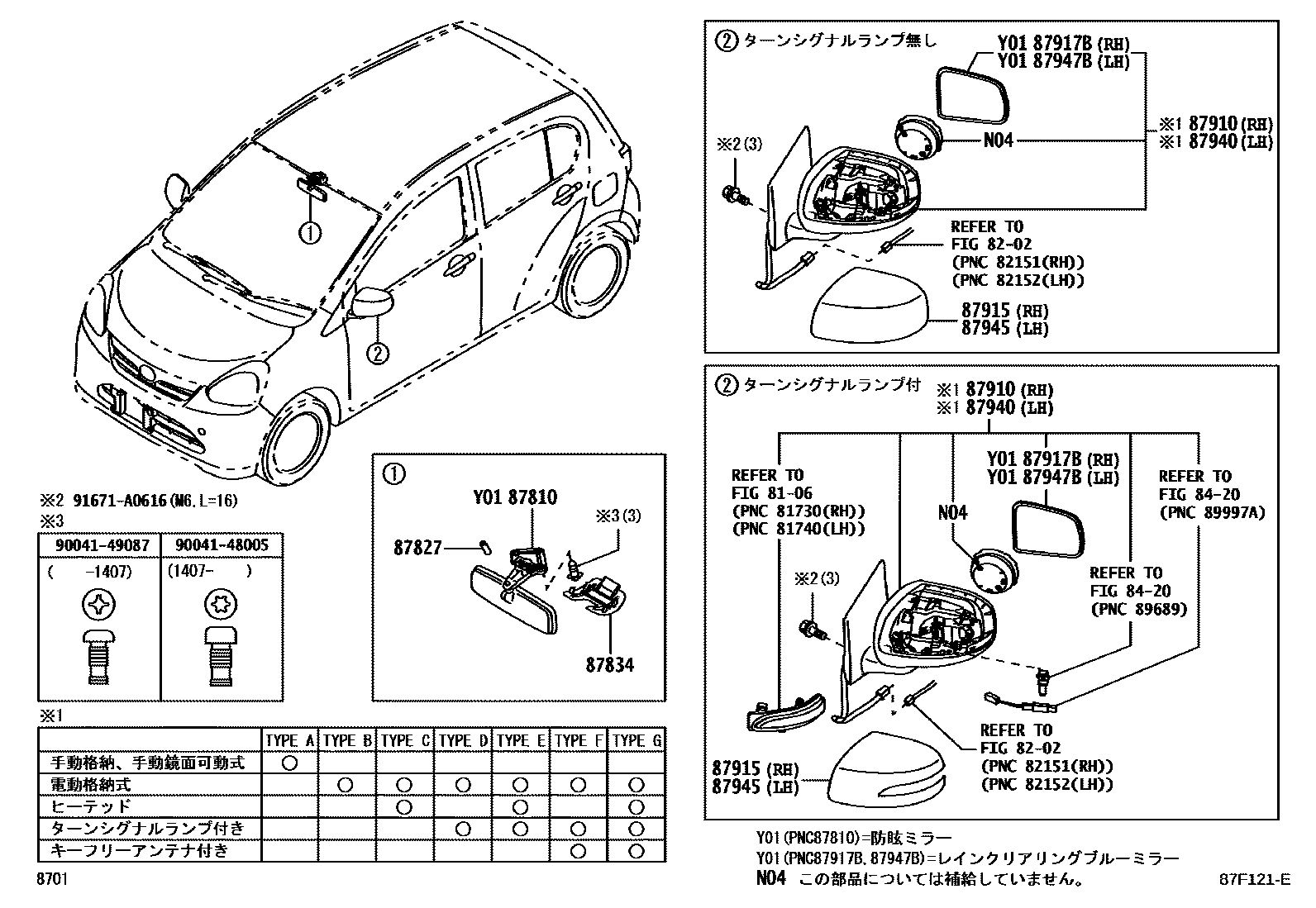

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8202WIRING & CLAMP

→ Go to FIG 82-02

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

87810MIRROR ASSY, INNER REAR VIEW

main87810-B2010-N1iLA300,310201204-201307

BLACK,TRIM1#

main87810-B2020-N1supersedes 87810-B2010-N1iLA300,310201307

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-B1010iLA300,310201204-201307

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-B2090-B0iLA300,310201307

LT.GRAY,TRIM1#

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-B2D20iLA300,310..D,L,LF201204-201307

main87910-B2D21iLA300,310..D,L,LF201307

main87910-B2D30iLA300..X201204-201307

main87910-B2D31iLA300..X201307

main87910-B2D40iLA310..XF201204-201307

main87910-B2D41iLA310..XF201307

main87910-B2D51iLA300..G201307

main87910-B2D61iLA310..GF201307

main87910-B2D50supersedes 87910-B2D70iLA300..G201204-201307

main87910-B2D60supersedes 87910-B2D80iLA310..GF201204-201307

87915COVER, OUTER MIRROR, RH

main87915-B2340-A0iLA300,310..L,X,XF201307

main87915-B2340-A1iLA300,310..L,X,XF201204-201307

main87915-B2340-B0iLA300,310..L,X,XF201204-201307

main87915-B2340-C0iLA300,310..X,XF; LA300..L201307

main87915-B2340-D0iLA300,310..L,X,XF201204-201307

main87915-B2340-D2iLA300,310..L,X,XF201307

main87915-B2340-E0iLA300,310..L,X,XF201307

main87915-B2340-E1iLA300,310..L,X,XF201204-201307

main87915-B2340-E2iLA300,310..L,X,XF201307

main87915-B2340-F0iLA300,310..X,XF201504-201608

main87915-B2340-J0iLA300,310..L,X,XF201204-201307

main87915-B2340-J1iLA300,310..L,X,XF201307-201608

main87915-B2350-A0iLA300,310..G,GF201204-201307

main87915-B2350-A1iLA300,310..G,GF201307

main87915-B2350-B0iLA300,310..G,GF201204-201307

main87915-B2350-C0iLA300,310..G,GF201204-201307

main87915-B2350-D0iLA300,310..G,GF201307

main87915-B2350-D2iLA300,310..G,GF201307

main87915-B2350-E0iLA300,310..G,GF201307

main87915-B2350-E1iLA300,310..G,GF201204-201307

main87915-B2350-E2iLA300,310..G,GF201307

main87915-B2350-J0iLA300,310..G,GF201204-201307

main87915-B2350-J1iLA300,310..G,GF201307-201608

main87915-B2360iLA300,310..D,LF201307

87917BMIRROR, OUTER REAR VIEW, RH

main87917-B2250iLA300,310..D,G,L,LF,X201307-201704

main87917-B2260iLA310..GF,XF201204-201307

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-B2F80iLA300,310..D,L,LF201204-201307

main87940-B2F81iLA300,310..D,L,LF201307

main87940-B2F90iLA300..X201204-201307

main87940-B2F91iLA300..X201307

main87940-B2G00iLA310..XF201204-201307

main87940-B2G01iLA310..XF201307

main87940-B2G11iLA300..G201307

main87940-B2G21iLA310..GF201307

main87940-B2G10supersedes 87940-B2G30iLA300..G201204-201307

main87940-B2G20supersedes 87940-B2G40iLA310..GF201204-201307

87945COVER, OUTER MIRROR, LH

main87945-B2340-A0iLA300,310..L,XF; LA300..X201204-201307

main87945-B2340-A1iLA300,310..L,XF; LA300..X201204-201307

main87945-B2340-B0iLA300,310..L,XF; LA300..X201204-201307

main87945-B2340-C0iLA300,310..X,XF; LA300..L201307

main87945-B2340-D0iLA300,310..L,XF; LA300..X201204-201307

main87945-B2340-D2iLA300,310..L,X,XF201307

main87945-B2340-E0iLA300,310..L,XF; LA300..X201204-201307

main87945-B2340-E1iLA300,310..L,XF; LA300..X201204-201307

main87945-B2340-E2iLA300,310..L,XF; LA300..X201210-201307

main87945-B2340-F0iLA300,310..X,XF201504-201608

main87945-B2340-J0iLA300,310..L,XF; LA300..X201204-201307

main87945-B2340-J1iLA300,310..L,X,XF201307-201608

main87945-B2350-A0iLA300,310..G,GF201307

main87945-B2350-A1iLA300,310..G,GF201307

main87945-B2350-B0iLA300,310..G,GF201307

main87945-B2350-C0iLA300,310..G,GF201204-201307

main87945-B2350-D0iLA300,310..G,GF201307

main87945-B2350-D2iLA300,310..G,GF201307

main87945-B2350-E0iLA300,310..G,GF201204-201307

main87945-B2350-E1iLA300,310..G,GF201204-201307

main87945-B2350-E2iLA300,310..G,GF201307

main87945-B2350-J0iLA300,310..G,GF201204-201307

main87945-B2350-J1iLA300,310..G,GF201307-201608

main87945-B2360iLA300,310..D,LF201307

87947BMIRROR, OUTER REAR VIEW, LH

main87947-B2300iLA300,310..D,G,L,LF,X201307

main87947-B2310iLA310..GF,XF201307

9004148005

main90041-48005

9004149087

main90041-49087

91671A0616

main91671-A0616

15 parts on this diagram · 1 diagram in section
