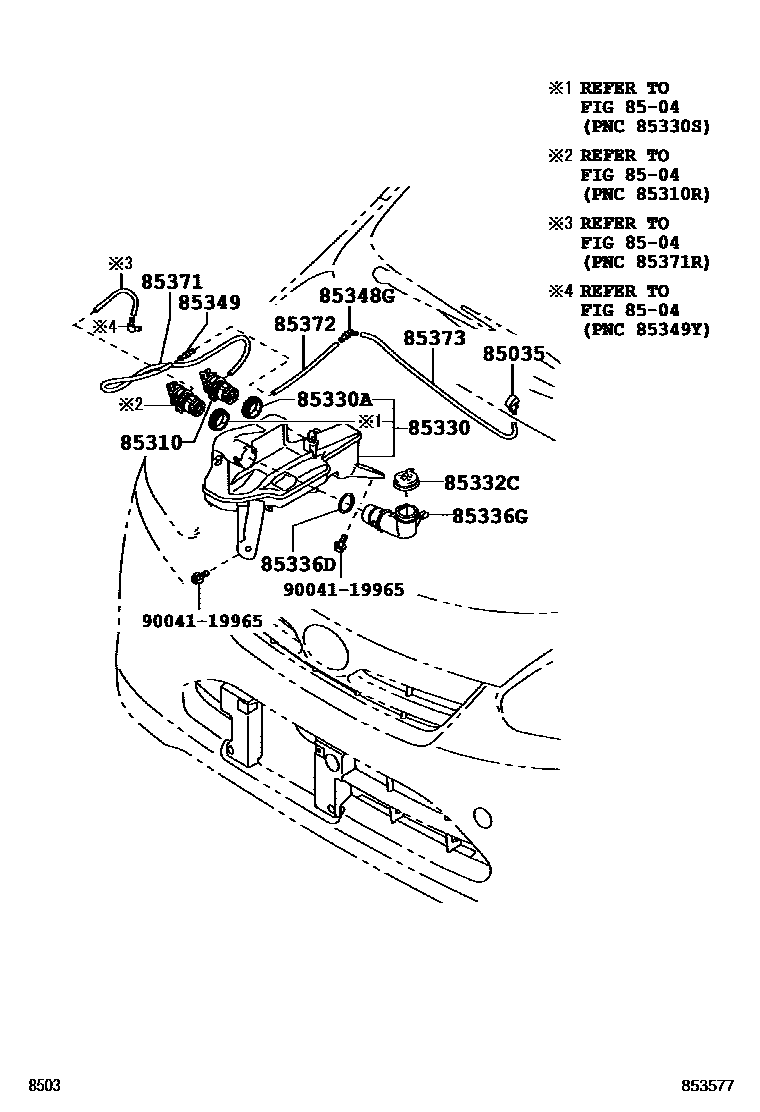

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-B2110iLA300,310201204-201307

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-97203iLA300,310201307

85330JAR ASSY, WINDSHIELD WASHER

main85315-B2120supersedes 85315-B2110iLA300; LA300..G; LA310201204-201307

85330ABUSH, WINDSHIELD WASHER JAR

main85373-97202iLA300,310201204-201307

85332CCAP, FRONT WASHER TANK

main85332-B1020iLA300,310201204-201307

85336DPACKING, WINDSHIELD WASHER JAR

main85336-B2060iLA300,310201204-201307

85336GGAGE, WATER LEVEL

main85318-B2060iLA300,310201204-201307

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85317-B2030iLA300,310201307

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-87201iLA300,310201204-201307

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85343-97401iLA300; LA300,310; LA300..G201204-201307

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85343-97401iLA300,310201204-201307

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85374-87401iLA300,310201204-201307

9004119965

main90041-19965

14 parts on this diagram · 1 diagram in section
