WIRELESS DOOR LOCK

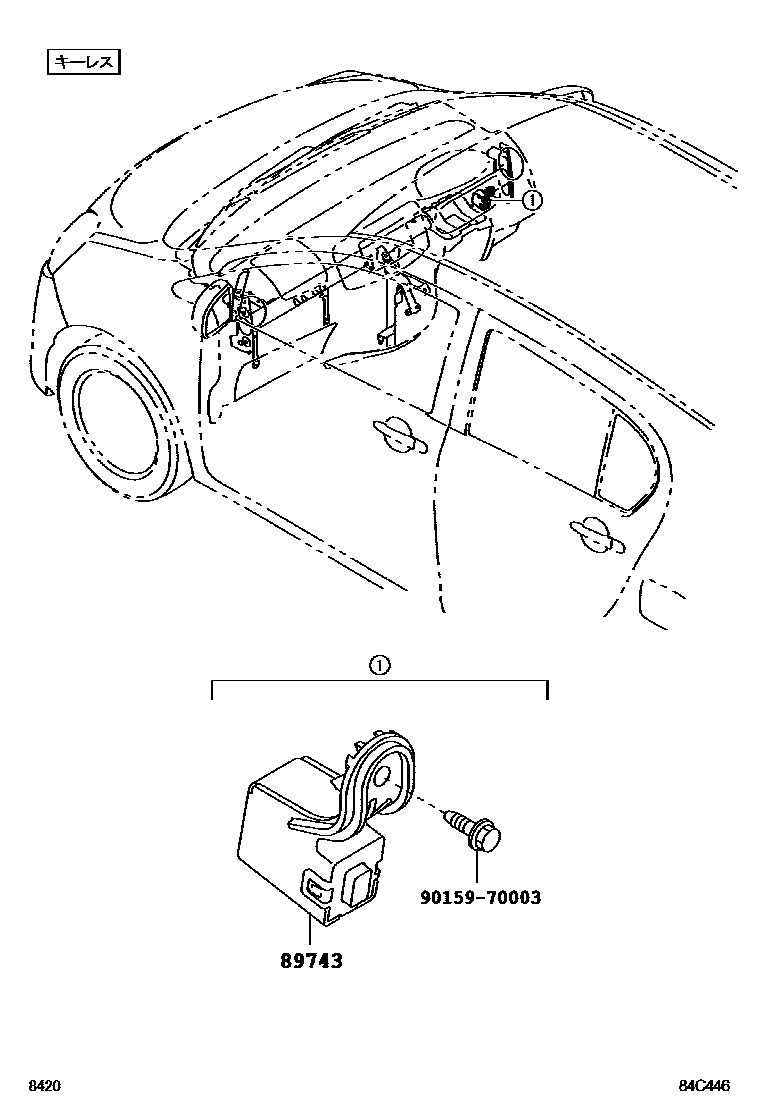

Parts diagram

89743RECEIVER, DOOR CONTROL

main89741-B2290i201307

mainGAITOUNASIsupersedes 89741-B2290i201204

9015970003

main90159-70003

2 parts on this diagram · 2 diagrams in section
