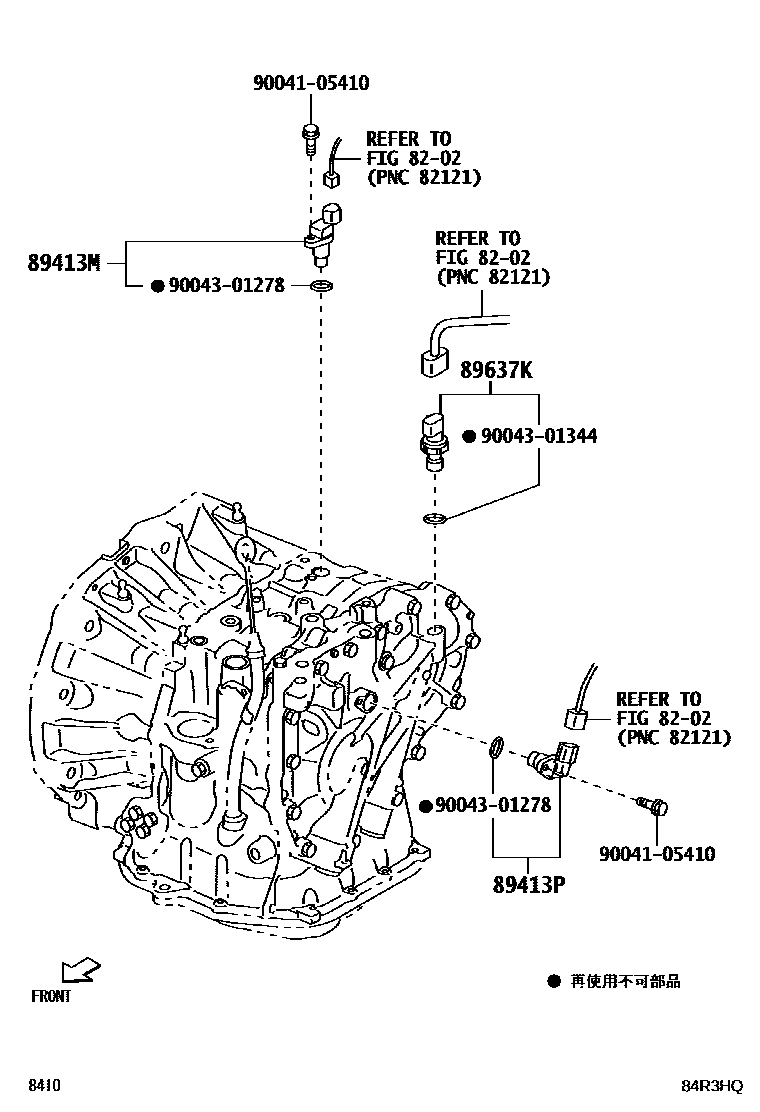

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

8202WIRING & CLAMP

→ Go to FIG 82-02

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-97202iLA300,310201204-201307

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-B2010iLA300,310201204-201307

89637KSENSOR, OIL PRESSURE

main89637-B2010iLA300,310201204-201307

9004105410

main90041-05410

9004301278

main90043-01278

9004301344

main90043-01344

7 parts on this diagram · 1 diagram in section
