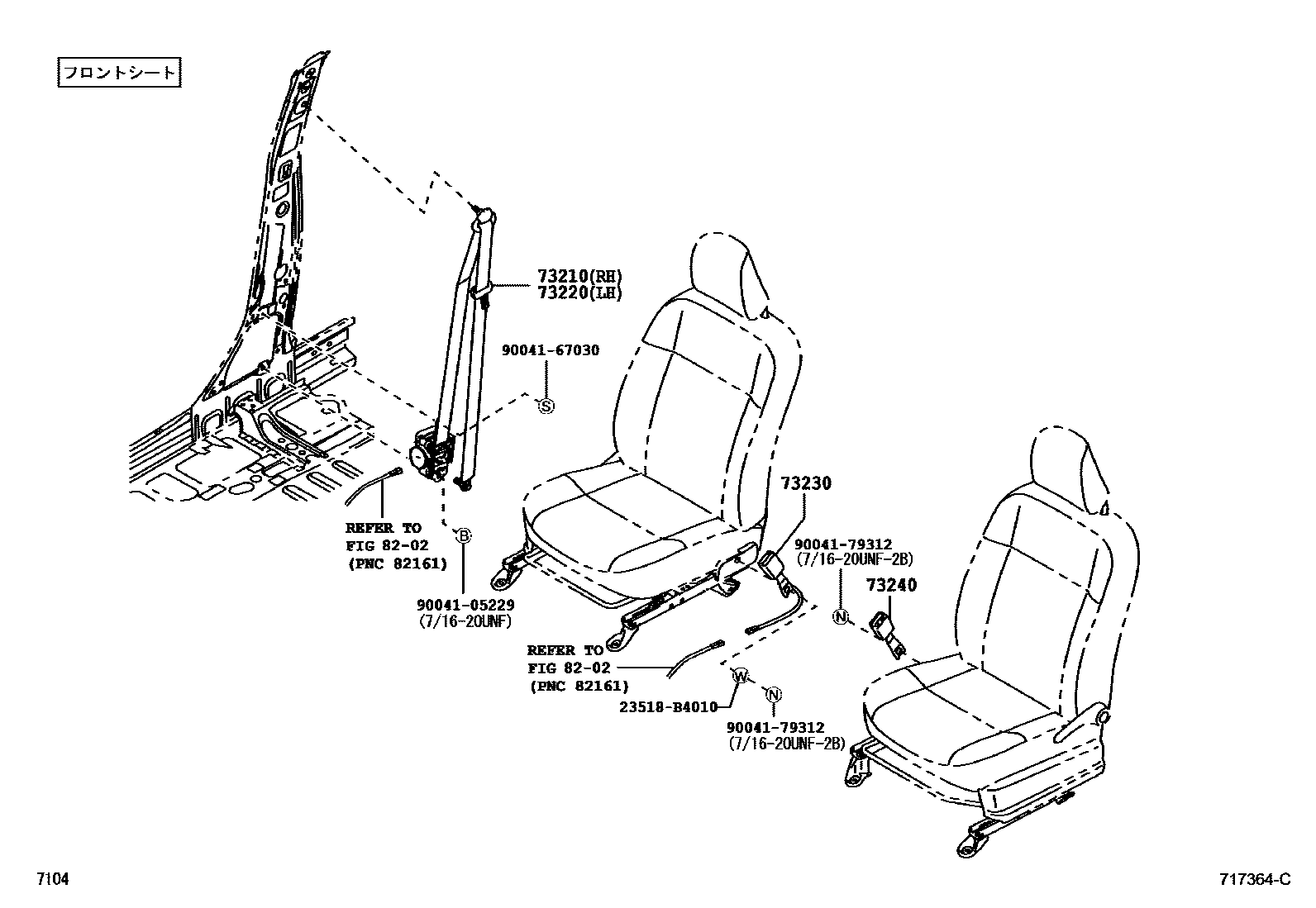

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-B2A10-E0iLA300,310201204-201307

FAWN,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-B2C60-E0iLA300,310201204-201307

FAWN,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-B2540-B0iLA300,310..G,GF201204-201307

DK.GRAY,TRIM1#

main73230-B2541-B0iLA300,310..G,GF201612

DK.GRAY,TRIM1#

main73230-B2570-B0iLA300,310..D,L,LF,X,XF201307

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-B2550-B0iLA300,310201204-201307

DK.GRAY,TRIM1#

8202WIRING & CLAMP

→ Go to FIG 82-02

23518B4010WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-B4010

9004105229

main90041-05229

9004167030

main90041-67030

9004179312

main90041-79312

9 parts on this diagram · 2 diagrams in section
