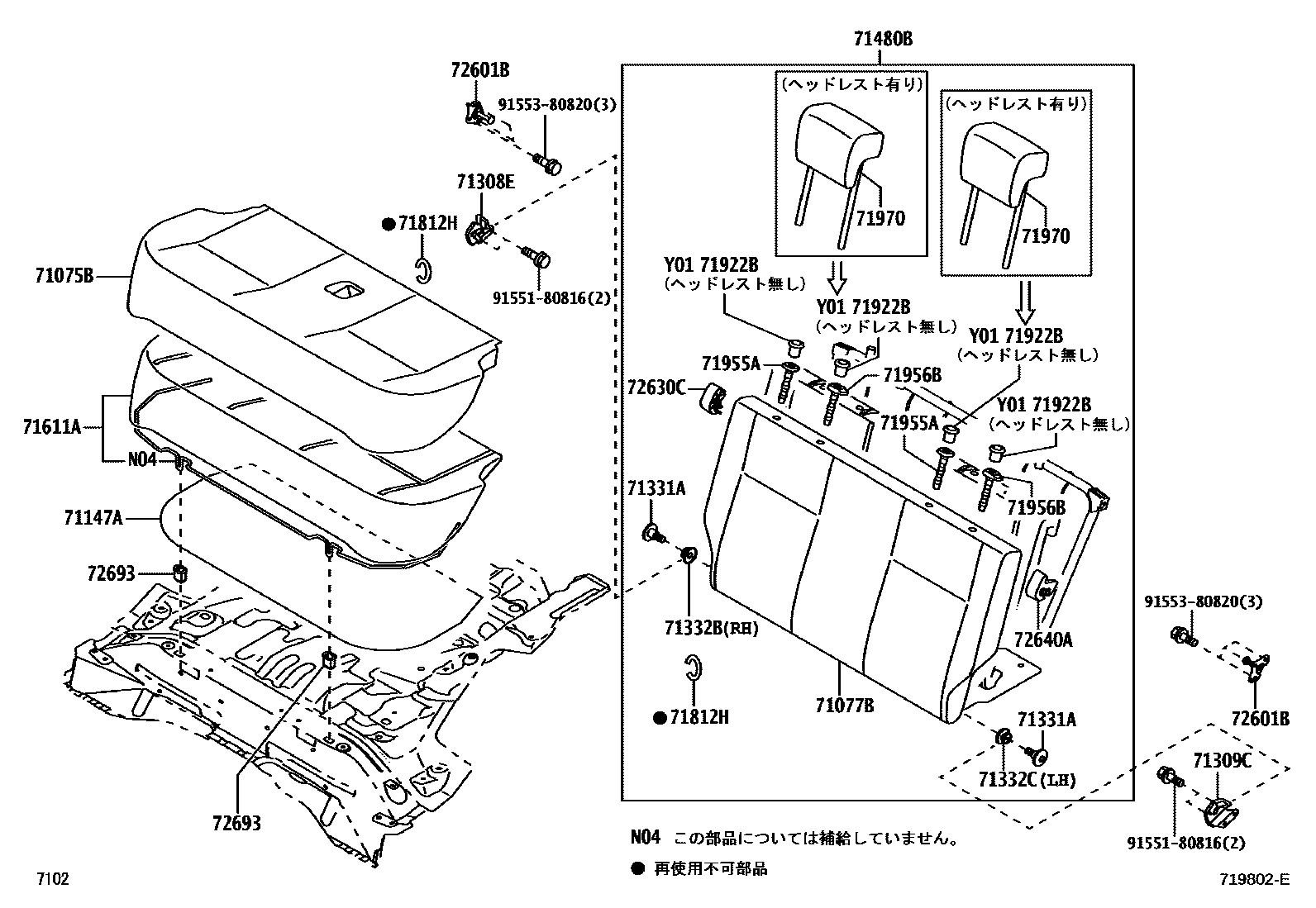

REAR SEAT & SEAT TRACK

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-B2E90-B2iLA300,310..G,GF,X,XF201307-201407

GRAY,TRIM1#

main71075-B2E90-B3iLA300,310..G,GF,X,XF201407

main71075-B2E90-E0iLA300,310201204-201307

BEIGE,TRIM1#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-B2J90-B2iLA300,310..D,L,LF201307

GRAY,TRIM1#

main71077-B2J90-B3iLA300,310..G,GF,X,XF201407

main71077-B2J90-E0iLA300,310201204-201307

BEIGE,TRIM1#

71147ASILENCER, REAR SEAT SPRING

main71147-B2070iLA300,310201204-201307

71308ELEG SUB-ASSY, REAR SEAT, RH

main71308-B2070iLA300,310201204-201307

71309CLEG SUB-ASSY, REAR SEAT, REAR LH

main71309-B2120iLA300,310201204-201307

71331APIN, REAR SEAT HINGE

main71331-B2020×2iLA300,310201204-201307

71332BSPACER, REAR SEATBACK HINGE

main61648-B2020iLA300,310201307-201704

71332CSPACER, REAR SEATBACK HINGE

main61647-B2010iLA300,310201307-201704

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-B2M00-B1iLA300,310..D,L,LF,X,XF201204-201307

BEIGE,TRIM1#

main71480-B2M10-B1iLA300,310..D,L,LF; LA300,310..G,GF201204-201307

main71480-B2M10-B4supersedes 71480-B2M00-B3iLA300,310..G,GF,X,XF201307-201407

GRAY,TRIM1#

main71480-B2M10-B5iLA300,310..G,GF,X,XF201407

DARK GRAY,TRIM10

71611APAD, REAR SEAT CUSHION, RH

main71503-B2540iLA300,310201204-201307

71812HRING, HOG, SMALL (FOR REAR SEAT)

main71812-87201×28iLA300,310201204-201307

71922BCOVER, REAR SEAT HEADREST UNDER

main71991-B1010-E0×4iLA300,310..D,L,LF201307

BEIGE,TRIM1#

71955ASUPPORT, REAR SEAT HEADREST

main71931-97202-B4×2iLA300,310..G,GF,X,XF201407

DK.GRAY,TRIM10

main71931-97202-E4×2iLA300,310201204-201307

BEIGE,TRIM1#

71956BSUPPORT, REAR SEAT HEADREST

main71930-97202-B4×2iLA300,310..G,GF,X,XF201407

main71930-97202-E4×2iLA300,310..G,GF,X,XF201307-201407

71970HEADREST ASSY, REAR SEAT

main71940-B2780-B0×2iLA300,310..G,GF,X,XF201407

GRAY,TRIM10

main71940-B2780-B1×2iLA300,310..G,GF,X,XF201407

DARK GRAY,TRIM10

main71940-B2780-E0×2iLA300,310..D,L,LF; LA300,310..G,GF201204-201307

72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK

main72601-B2090×2iLA300,310201204-201307

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-B2120-E0iLA300,310201204-201307

BEIGE,TRIM1#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-B2110-E0iLA300,310201204-201307

BEIGE,TRIM1#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-97202×2iLA300,310201204-201307

9155180816

main91551-80816

9155380820

main91553-80820

21 parts on this diagram · 1 diagram in section
