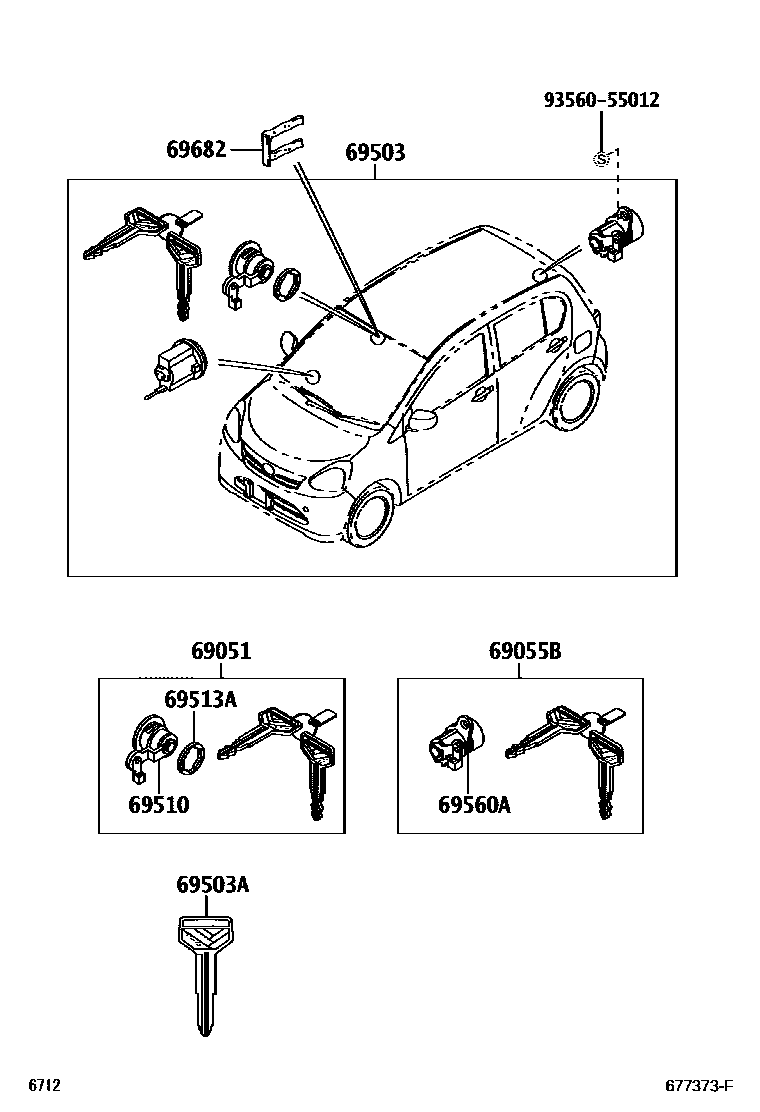

LOCK CYLINDER SET

0001 1 0003 1���� 0005 1�����

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69005-B2C30iLA300,310..G,GF201307

main69051-B2280iLA300,310201204-201307

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-B2190iLA300,310..D,L,LF201204-201307

69503CYLINDER SET, LOCK

main69005-B2C20iLA300,310..G,GF,X,XF201204-201307

main69005-B2C30iLA300,310..G,GF201307

main69005-B2C40iLA300,310..D,L,LF201204-201307

69503AKEY, BLANK

main90999-00153iLA300,310..D,L,LF; LA300,310..G,GF,X,XF201204-201307

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-97205iLA300,310..D,L,LF,X,XF201307-201704

69513APAD, DOOR CYLINDER

main69513-87201iLA300,310201204-201307

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-B2060iLA300,310..D,L,LF201204-201307

69682RETAINER, LOCK CYLINDER

main69682-97202iLA300,310201307

9356055012

main93560-55012

9 parts on this diagram · 3 diagrams in section
