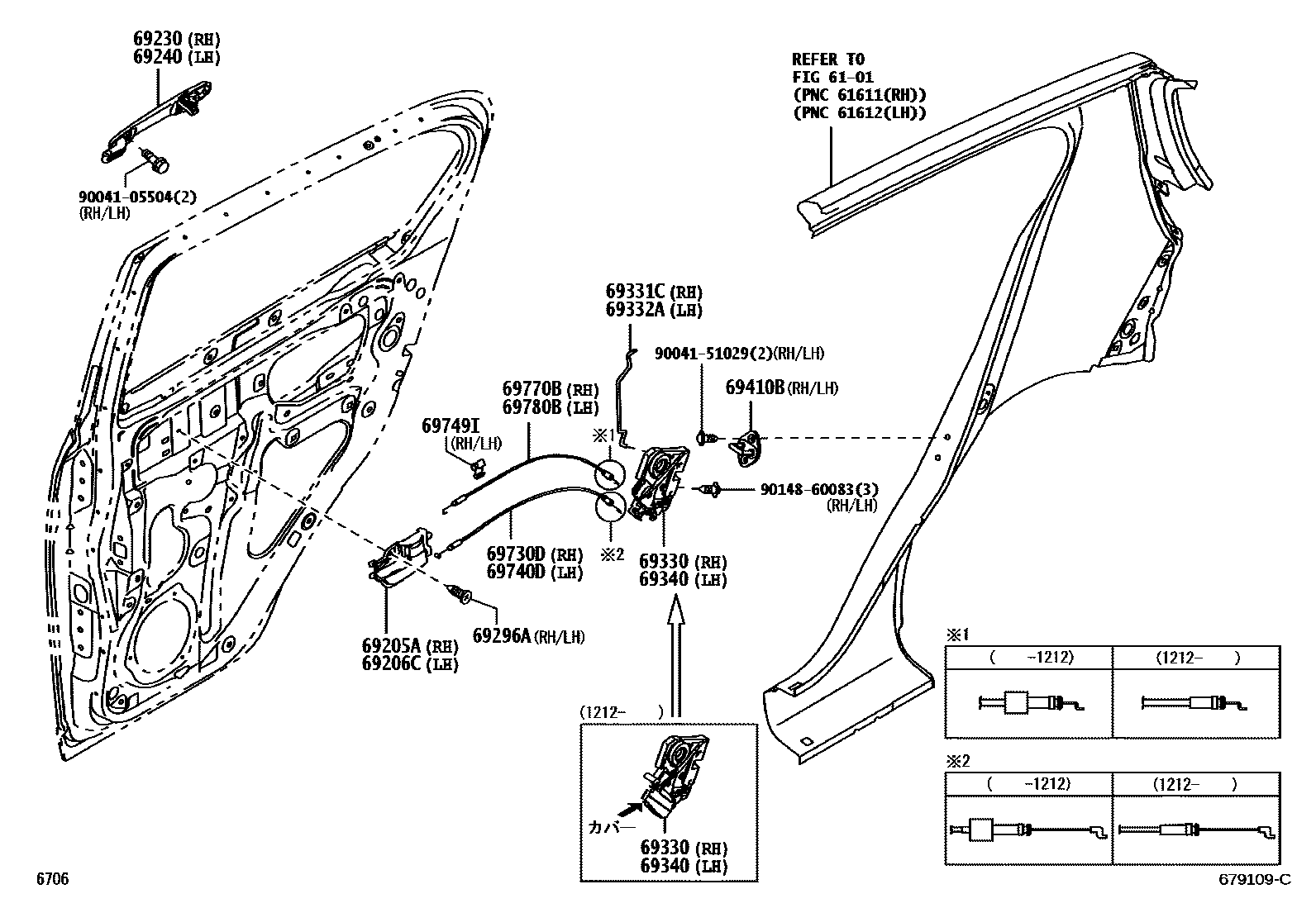

REAR DOOR LOCK & HANDLE
6101SIDE MEMBER
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
WARM GRAY,TRIM1#
WARM GRAY,TRIM1#
WARM GRAY,TRIM1#
WARM GRAY,TRIM1#
WARM GRAY,TRIM1#
WARM GRAY,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
WARM GRAY,TRIM1#
WARM GRAY,TRIM1#
WARM GRAY,TRIM1#
WARM GRAY,TRIM1#
WARM GRAY,TRIM1#
WARM GRAY,TRIM1#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07
SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07
SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07; SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07 ,Y09
PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07; PAINT BLACK DUMMYCOLOR,W09
PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07; PAINT BLACK DUMMYCOLOR,W09
PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07; PAINT BLACK DUMMYCOLOR,W09
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SILVER ME.,B70 ,B73 ,R59 ,S28 ,T19 ,T22 ,T28 ,W09 ,W24 ,X07; SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07
SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07
SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07; SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07 ,Y09
PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R59 ,S28 ,T19 ,T22 ,T28 ,W09 ,W24 ,X07; PAINT BLACK DUMMYCOLOR,W09
PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07; PAINT BLACK DUMMYCOLOR,W09
PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07; PAINT BLACK DUMMYCOLOR,W09
69296ASCREW, DOOR INSIDE HANDLE
69330LOCK ASSY, REAR DOOR, RH
69331CROD, REAR DOOR LOCK OPEN, RH
69332AROD, REAR DOOR LOCK OPEN, LH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749ICLAMP, DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9004105504
main90041-05504
9004151029
main90041-51029
9014860083
main90148-60083
19 parts on this diagram · 1 diagram in section
