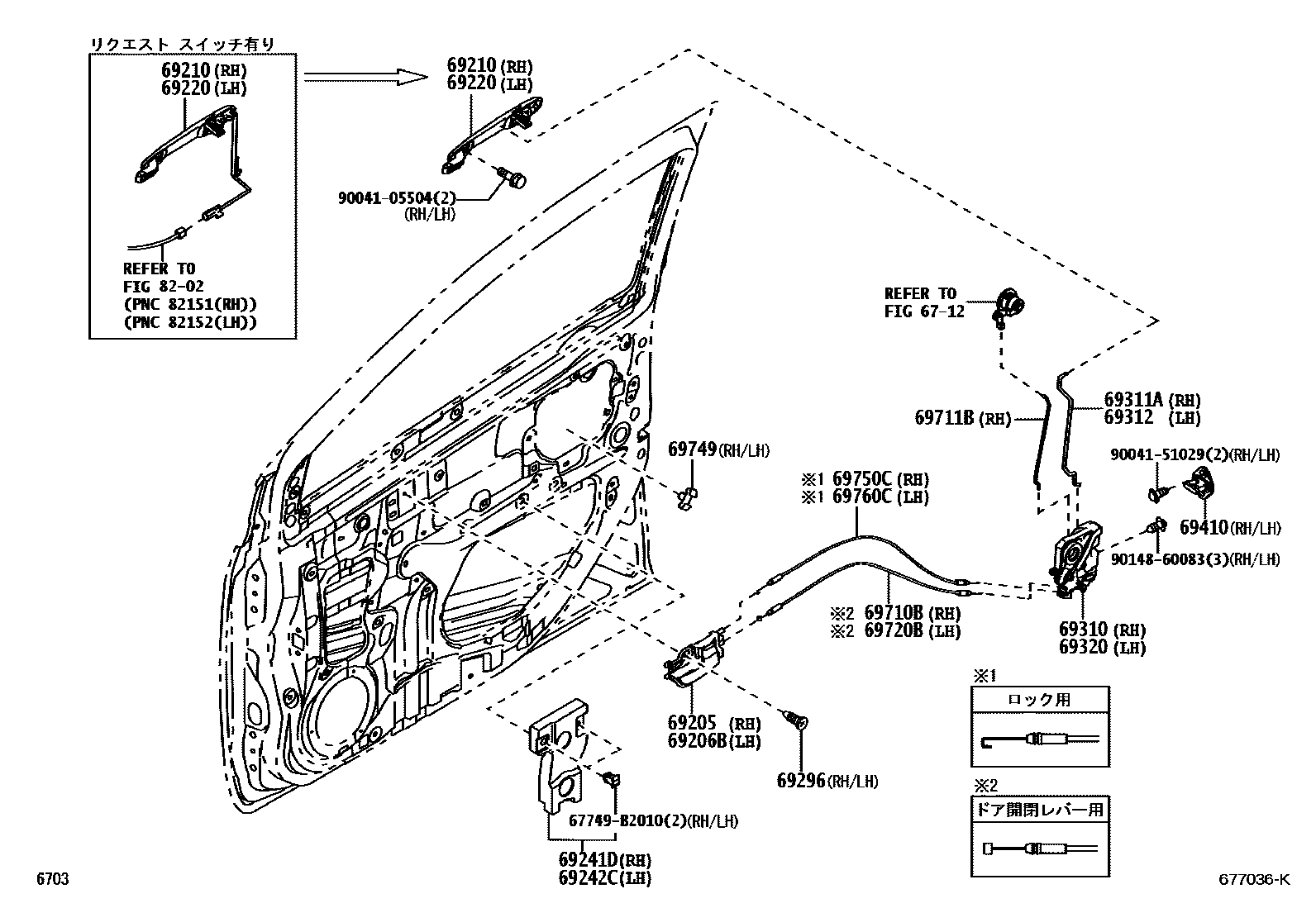

FRONT DOOR LOCK & HANDLE

6712

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-B2100-B0iLA300,310..D,L,LF201204-201302

WARM GRAY,TRIM1#

sub69270-B2101

main69270-B2101-B0iLA300,310..D,L,LF201303-201506

WARM GRAY,TRIM1#

sub69270-B2102

main69270-B2102-B0iLA300,310..D,L,LF201507

WARM GRAY,TRIM1#

main69270-B2110-B2iLA300,310..G,GF,X,XF201204-201304

WARM GRAY,TRIM1#

sub69270-B2111

main69270-B2111-B2iLA300,310..G,GF,X,XF201305-201508

WARM GRAY,TRIM1#

sub69270-B2112

main69270-B2112-B2iLA300,310..G,GF,X,XF201509

WARM GRAY,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-B2110-B0iLA300,310..D,L,LF201204-201302

WARM GRAY,TRIM1#

sub69280-B2111

main69280-B2111-B0iLA300,310..D,L,LF201303-201506

WARM GRAY,TRIM1#

sub69280-B2112

main69280-B2112-B0iLA300,310..D,L,LF201507

WARM GRAY,TRIM1#

main69280-B2120-B2iLA300,310..G,GF,X,XF201204-201304

WARM GRAY,TRIM1#

sub69280-B2121

main69280-B2121-B2iLA300,310..G,GF,X,XF201305-201508

WARM GRAY,TRIM1#

sub69280-B2122

main69280-B2122-B2iLA300,310..G,GF,X,XF201509

WARM GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-B2340-B0iLA300,310..G,GF201204-201307

SILVER ME.,B70 ,B73 ,R59 ,S28 ,T19 ,T22 ,T28 ,W09 ,W24 ,X07

sub69210-B2341

main69210-B2340-B0iLA300,310..L,X,XF201204-201307

SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07

sub69210-B2341

main69210-B2340-B0iLA300,310..L,X,XF201307-201404

SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07

sub69210-B2341

main69210-B2341-B0iLA300,310..L,X,XF201405-201501

SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07

main69210-B2342-B0iLA300..L201502

SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07 ,Y09

sub69210-B1100

main69210-B2342-B0iLA300..L201502

SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07

sub69210-B1100

main69210-B2430-C1iLA310..LF201204-201404

PAINT BLACK DUMMYCOLOR,W09

sub69210-B2431

main69210-B2430-C1iLA310..LF201204-201307

PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R59 ,S28 ,T19 ,T22 ,T28 ,W09 ,W24 ,X07

sub69210-B2431

main69210-B2430-C1iLA300..D201307-201404

PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07

sub69210-B2431

main69210-B2431-C1iLA310..LF201405-201412

PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07

sub69210-B2432

main69210-B2431-C1iLA300..D201405-201412

PAINT BLACK DUMMYCOLOR,W09

sub69210-B2432

main69210-B2432-C1iLA310..LF201501

PAINT BLACK DUMMYCOLOR,W09

main69210-B2432-C1iLA310..LF201501

PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07

main69210-B2470-B0iLA300,310..G,GF201307-201401

sub69210-B2471

main69210-B2471-B0iLA300,310..G,GF201402-201501

sub69210-B2472

main69210-B2472-B0iLA300,310..G,GF201502

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-B2240-B0iLA300,310..G,GF201307-201401

sub69220-B2241

main69220-B2241-B0iLA300,310..G,GF201402-201501

sub69220-B2242

main69220-B2242-B0iLA300,310..G,GF201502

main69220-B2320-B0iLA300,310..L,X,XF201204-201307

SILVER ME.,B70 ,B73 ,R59 ,S28 ,T19 ,T22 ,T28 ,W09 ,W24 ,X07

sub69220-B2321

main69220-B2320-B0iLA300,310..L,X,XF201204-201307

SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07

sub69220-B2321

main69220-B2320-B0iLA300,310..L,X,XF201307-201404

SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07

sub69220-B2321

main69220-B2321-B0iLA300,310..L,X,XF201405-201501

SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07

main69220-B2322-B0iLA300,310..X,XF201502

SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07

sub69220-B1070

main69220-B2322-B0iLA300,310..X,XF201502

SILVER ME.,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07 ,Y09

sub69220-B1070

main69220-B2410-C1iLA310..LF201204-201307

PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R59 ,S28 ,T19 ,T22 ,T28 ,W09 ,W24 ,X07

sub69220-B2411

main69220-B2410-C1iLA300..D201204-201404

PAINT BLACK DUMMYCOLOR,W09

sub69220-B2411

main69220-B2410-C1iLA300..D201307-201404

PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07

sub69220-B2411

main69220-B2411-C1iLA310..LF201405-201412

PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07

sub69220-B2412

main69220-B2411-C1iLA310..LF201405-201412

PAINT BLACK DUMMYCOLOR,W09

sub69220-B2412

main69220-B2412-C1iLA300..D201501

PAINT BLACK DUMMYCOLOR,B70 ,B73 ,R40 ,R59 ,S28 ,T19 ,T22 ,W09 ,W24 ,X07

main69220-B2412-C1iLA310..LF201501

PAINT BLACK DUMMYCOLOR,W09

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main75787-B2130iLA300,310201204-201704

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main75788-B2130iLA300,310201204-201704

69296SCREW, DOOR INSIDE HANDLE

main90041-67041iLA300,310201204-201704

69310LOCK ASSY, FRONT DOOR, RH

main69310-B2330iLA300,310201204-201309

sub69310-B2331

main69310-B2331iLA300,310201310-201507

sub69310-B2332

main69310-B2332iLA300,310201508-201609

sub69310-B2333

main69310-B2333iLA300,310201610

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-B2140iLA300,310201204-201307

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-B2060iLA300,310201204-201307

69320LOCK ASSY, FRONT DOOR, LH

main69320-B2350iLA300,310..G,GF,L,LF,X,XF201204-201309

sub69320-B2351

main69320-B2351iLA300,310..G,GF,L,LF,X,XF201310-201507

sub69320-B2352

main69320-B2352iLA300,310..G,GF,L,LF,X,XF201508-201609

sub69320-B2353

main69320-B2353iLA300,310..G,GF,L,LF,X,XF201610

main69320-B2360iLA300..D201204-201309

sub69320-B2361

main69320-B2361iLA300..D201310-201507

sub69320-B2362

main69320-B2362iLA300..D201508

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-B2020iLA300,310201204-201307

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-B2210iLA300,310201204-201704

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-B2060iLA300,310201204-201307

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-B2210iLA300,310201204-201704

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iLA300,310201204-201307

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-B2200iLA300,310201204-201704

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-B2200iLA300,310201204-201704

8202

67749B2010CLIP, DOOR TRIM MOULDING

main67749-B2010

9004105504

main90041-05504

9004151029

main90041-51029

9014860083

main90148-60083

24 parts on this diagram · 1 diagram in section
