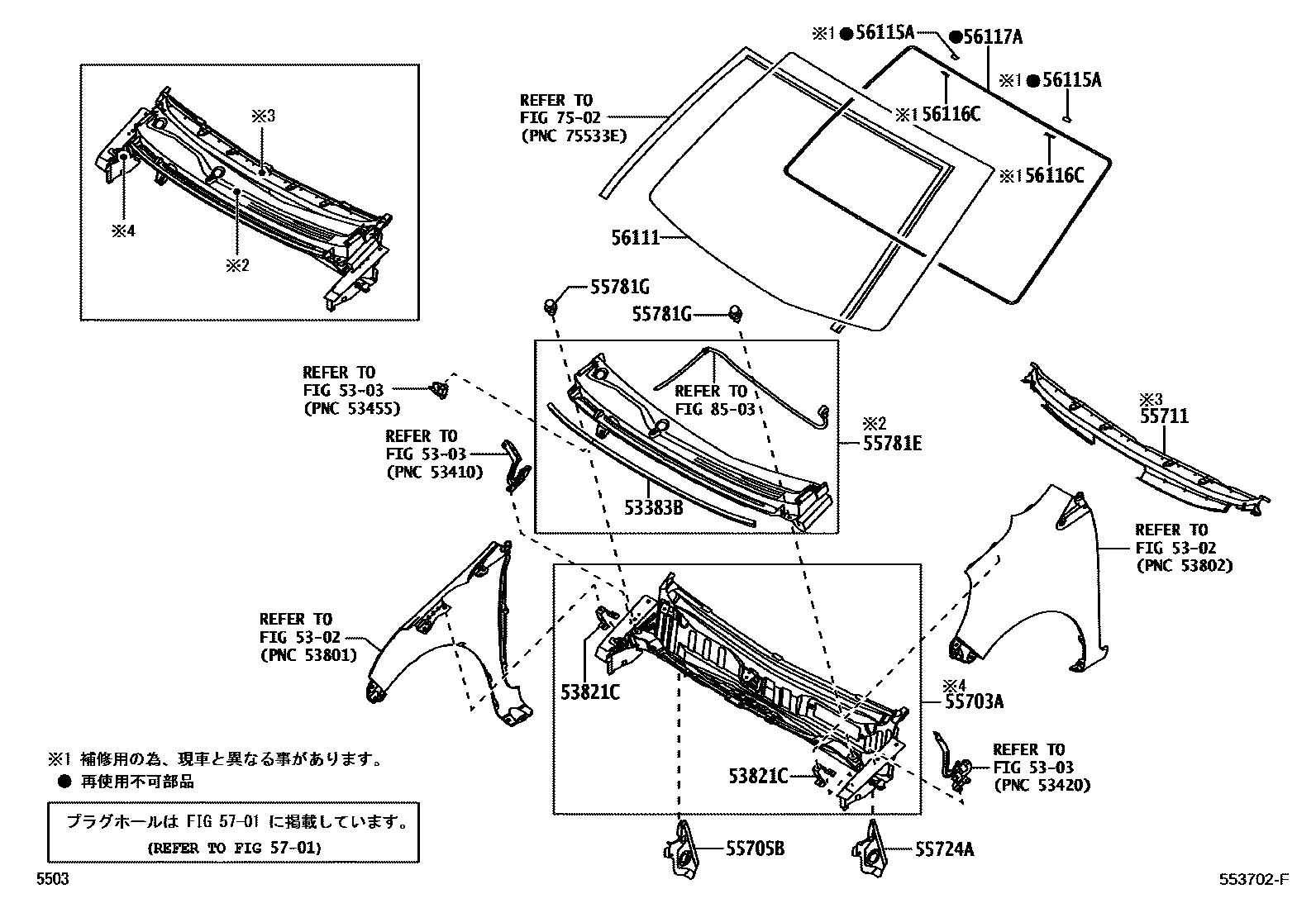

COWL PANEL & WINDSHIELD GLASS

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

53383BSEAL, HOOD TO COWL TOP

main53383-B2110iLA300,310201204-201307

53821CBRACKET, FRONT FENDER, REAR

main53717-B2120×2iLA300,310201204-201307

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-B2351iLA300,310201204-201307

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55706-B2120iLA300,310201204-201307

55711PANEL, COWL TOP, OUTER

main55711-B2260iLA300,310201204-201307

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-B2120iLA300,310201204-201307

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-B2060iLA300,310201204-201307

main55708-B2290iLA300,310201510-201704

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90044-67569×2iLA300,310201204-201307

56111GLASS, WINDSHIELD

main56111-B2400iLA300,310201204-201307

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-97402×2iLA300,310201204-201307

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401×2iLA300,310201204-201307

56117ADAM, WINDOW GLASS ADHESIVE

main56117-B2190iLA300,310201204-201307

main56117-B2191iLA300,310201606

5701HOLE PLUG

→ Go to FIG 57-01

7502FRONT MOULDING

→ Go to FIG 75-02

8503WINDSHIELD WASHER

→ Go to FIG 85-03

17 parts on this diagram · 1 diagram in section
