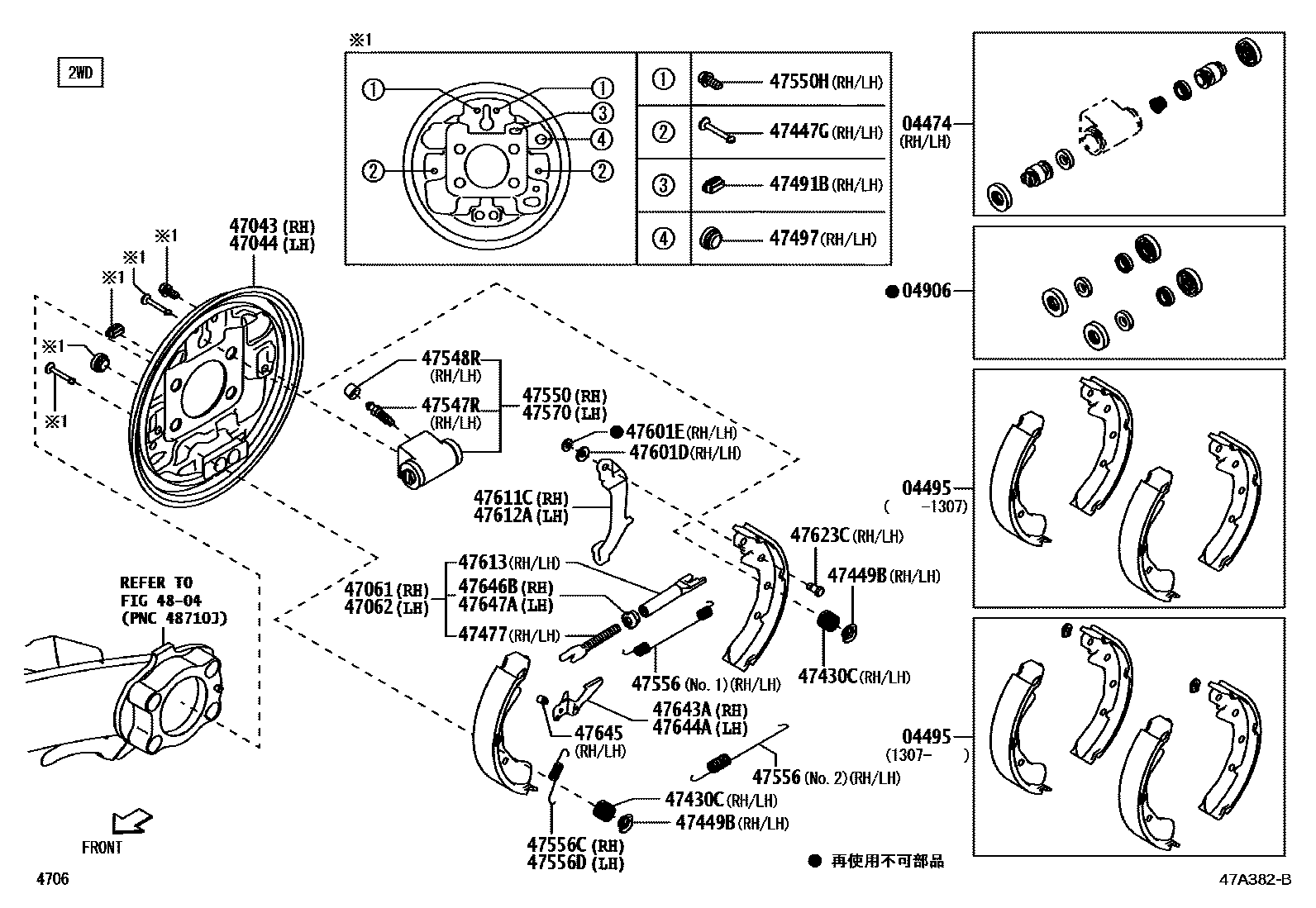

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 12WD 0002 14WD

04474CYLINDER KIT, REAR WHEEL

main04474-B1010×2iLA310201204-201307

main04474-B2090×2iLA300201204-201307

04495SHOE KIT, REAR BRAKE

main04495-B2210iLA310201204-201307

main04495-B2260iLA310201307

main04495-B2270iLA300201204-201307

main04495-B2271iLA300201307-201511

main04495-B2420iLA300201512

04906CUP KIT, REAR WHEEL CYLINDER

main04906-B2010iLA310201204-201307

main04906-B2050iLA300201204-201307

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-B2060iLA310201204-201307

main47043-B2080iLA300201307

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-B2060iLA310201204-201307

main47044-B2080iLA300201307

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-B2030iLA300201204-201307

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-B2030iLA300201204-201307

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-B2010×4iLA300201204-201307

main90045-01854×4iLA310201204-201307

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87501×4iLA310201307

main47447-B2010×4iLA300201307

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-97201×4iLA310201307

main47449-B2010×4iLA300201204-201307

47477PIECE, SHOE SUPPORT (FOR REAR BRAKE)

main47477-B2010iLA300201204-201307

main47477-B2020iLA300201204-201307

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-B1010×2iLA310201307

main47491-B2020×2iLA300201204-201307

47497PLUG, HOLE NO.2(FOR REAR BRAKE)

main47491-B2010×2iLA300201204-201307

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-87203×2iLA310201204-201307

main47547-B2010×2iLA300201204-201307

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-87501×2iLA310201204-201307

main47548-B2030×2iLA300201307

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-B2040iLA300201307

main47560-B5010iLA310201307

47550HBOLT(FOR REAR WHEEL CYLINDER)

main47553-B2010×4iLA300201204-201307

main90041-19848×4iLA310201204-201307

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-B2020×2iLA300201204-201307

main47556-B2010×2iLA300201307

47556CSPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)

main47555-B2030iLA300201204-201307

47556DSPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)

main47555-B2030iLA300201204-201307

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-B2040iLA300201307

main47560-B5010iLA310201307

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-97501iLA310201204-201307

47601DWASHER, WAVE(FOR REAR BRAKE)

main44645-B2010×2iLA300201204-201307

47601ERING, E(FOR REAR BRAKE)

main22498-B2020×2iLA300201204-201307

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-B2060iLA300201204-201307

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-B2060iLA300201204-201307

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-B1010×2iLA310201204-201307

main47613-B2060×2iLA300201307

47623CPIN, PARKING BRAKE LEVER

main47623-B2020×2iLA300201204-201307

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47608-87501iLA310201204-201307

main47643-B2010iLA300201204-201307

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47609-87501iLA310201204-201307

main47644-B2010iLA300201204-201307

47645PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)

main47645-87201×2iLA310201204-201307

main47645-B2030×2iLA300201204-201307

47646BLATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47646-97201iLA310201307

main47646-B2010iLA300201204-201307

47647ALATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47646-B2020iLA300201204-201307

main47647-97201iLA310201204-201307
