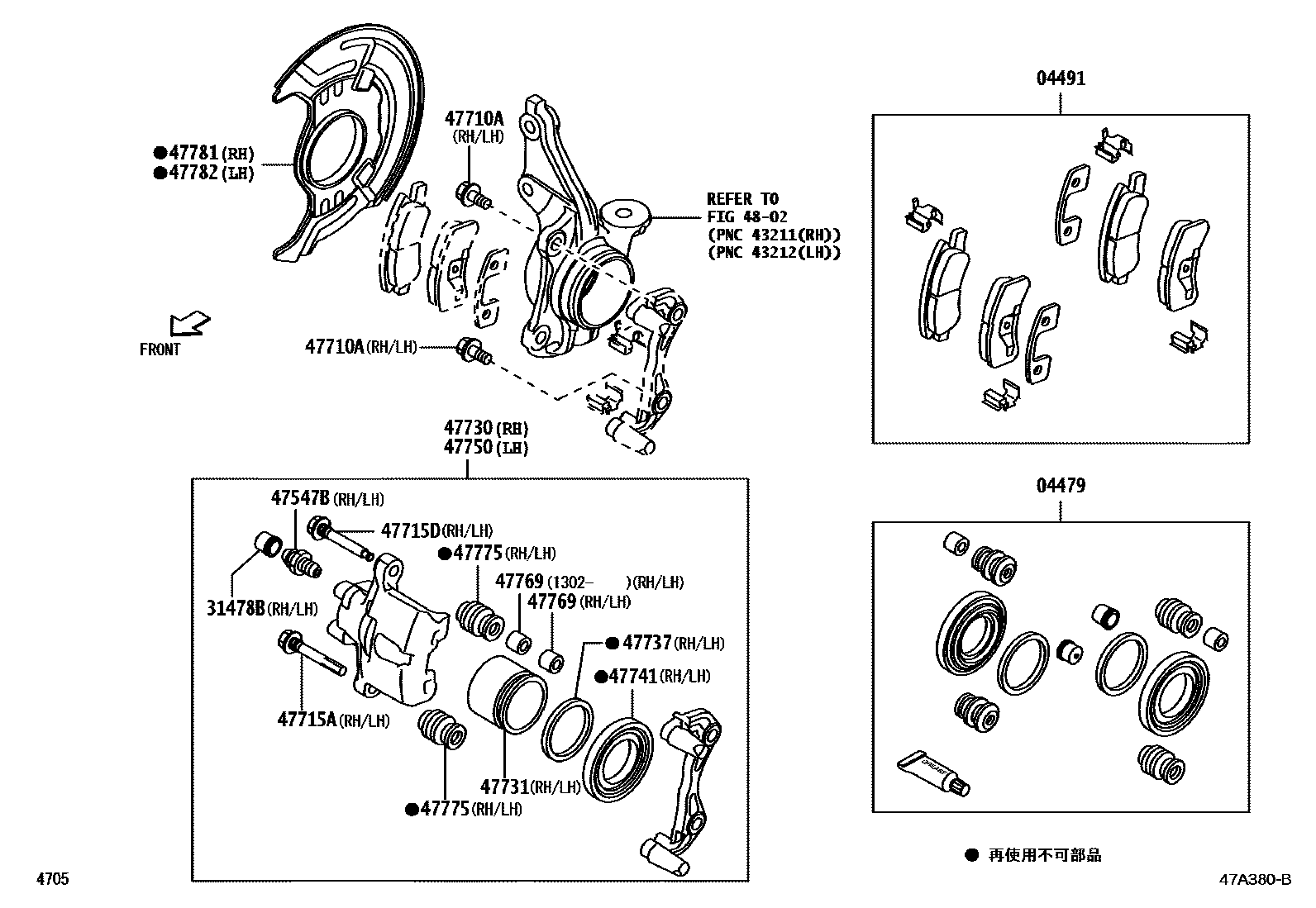

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-B2140iLA300,310201204-201307

main04478-B2141iLA300,310201507

04491PAD KIT, DISC BRAKE, FRONT

main04465-B2150iLA300,310201204-201307

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-B3010×2iLA300,310201204-201307

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-87207×2iLA300,310201204-201307

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90041-05242×4iLA300,310201204-201307

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-97201×2iLA300,310201204-201307

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-B2020×2iLA300,310201307

main47715-97202×2iLA300,310201204-201301

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-B2012iLA300,310201204-201301

main47730-B2013iLA300,310201302-201307

47731PISTON, FRONT DISC BRAKE

main47731-97201×2iLA300,310201204-201307

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-97201×2iLA300,310201204-201307

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-97201×2iLA300,310201307

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-B2012iLA300,310201204-201301

main47750-B2013iLA300,310201302-201307

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-97201×4iLA300,310201307

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-97201×4iLA300,310201204-201307

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-B2030iLA300,310201511-201704

main47781-B2060iLA300,310201307-201510

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-B2010iLA300,310201511-201704

main47782-B2060iLA300,310201204-201307

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

17 parts on this diagram · 2 diagrams in section
