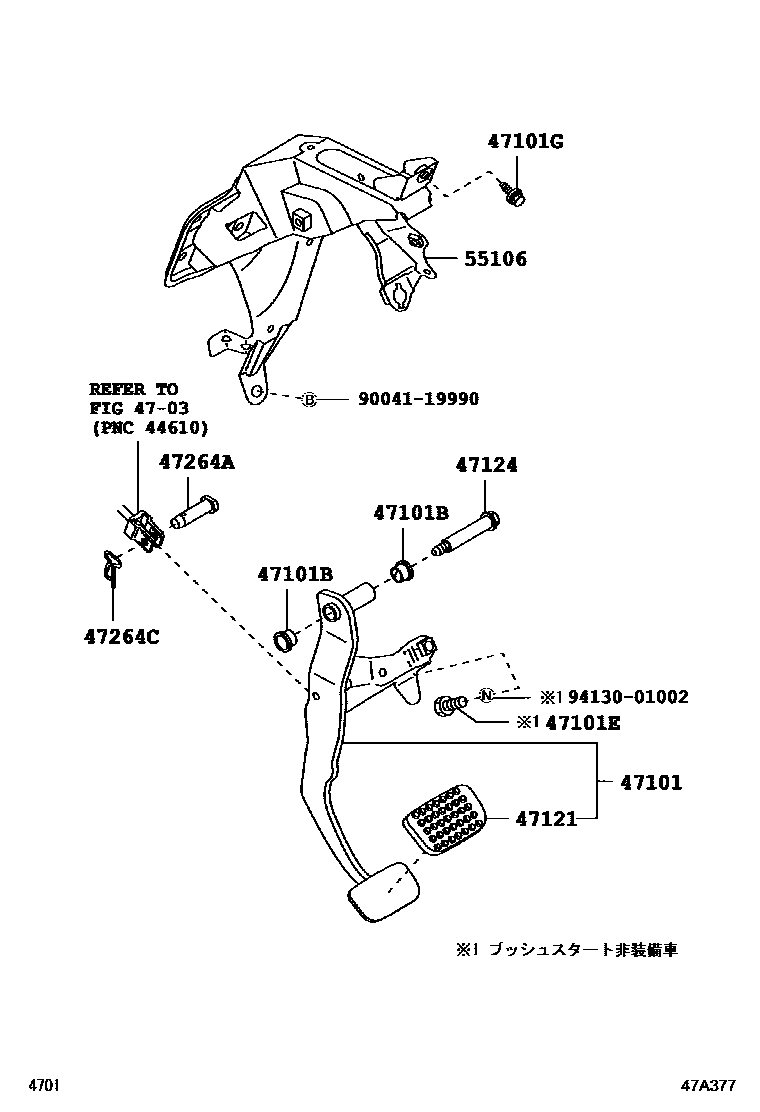

BRAKE PEDAL & BRACKET

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101PEDAL SUB-ASSY, BRAKE

main47110-B2270iLA300,310201204-201307

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121×2iLA300,310201204-201307

47101ESTOPPER, SHIFT LOCK

main31322-87403iLA300,310201204-201307

47101GBOLT, BRAKE PEDAL STOP, NO.1

main45898-B2010iLA300,310201204-201307

main90041-19A17iLA300,310201703

47121PAD, BRAKE PEDAL

main47121-87202iLA300,310201204-201307

47124SHAFT, BRAKE PEDAL

main31324-B2010iLA300,310201204-201307

47264APIN(FOR PUSH ROD)

main90042-40151iLA300,310201204-201307

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iLA300,310201204-201307

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-B2360iLA300,310201204-201307

9004119990

main90041-19990

9413001002

main94130-01002

12 parts on this diagram · 1 diagram in section
