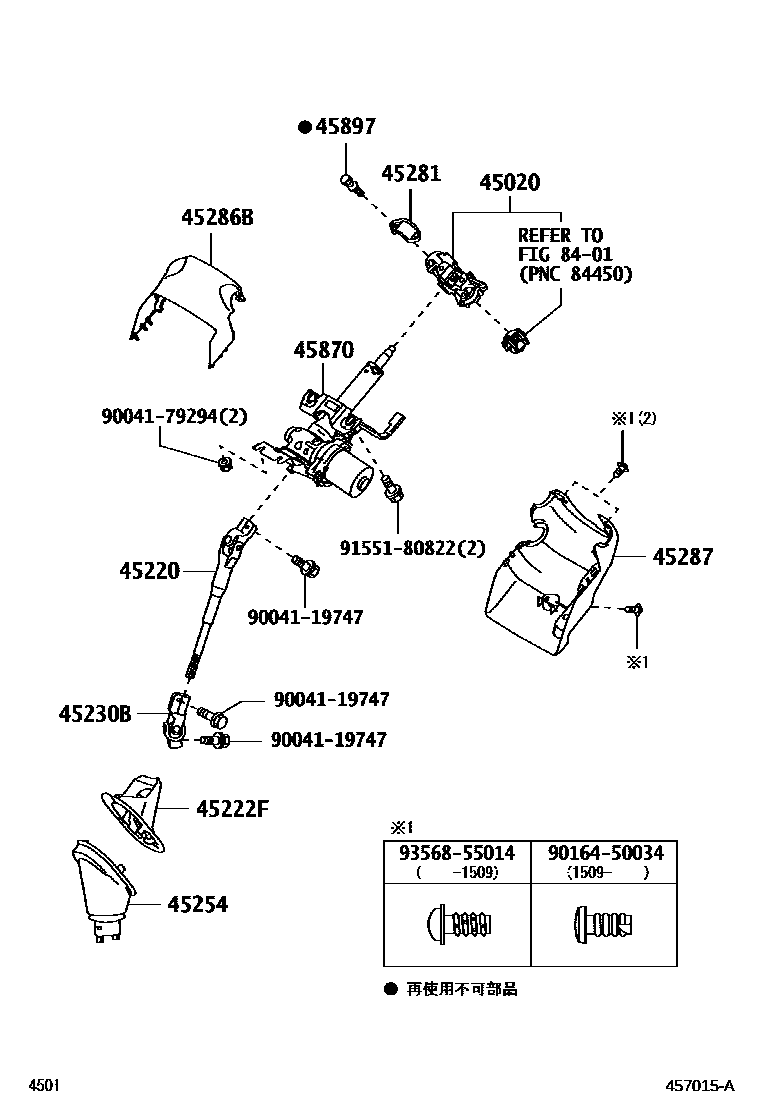

STEERING COLUMN & SHAFT

0001 1 0002 1����� ����

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-B2320iLA300,310201204-201307

main00000-00000iLA300,310..G,GF201204-201307

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-B2170iLA300,310201204-201307

45222FCOVER, DUST

main45222-B2120iLA300,310201204-201307

main45222-B2121iLA300,310201307

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45290-B2090iLA300,310201204-201207

main45290-B2092iLA300,310201208-201307

45254SHIELD, STEERING COLUMN HOLE

main45254-B2110iLA300,310201204-201307

main45254-B2111iLA300,310201307

45281HOUSING, STEERING COLUMN

main45281-B2040iLA300,310201204-201307

main45281-B2050iLA300,310..G,GF201307

45286BCOVER, STEERING COLUMN, UPR

main45286-B2180-B0iLA300,310201307

DK.GRAY,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-B2260-B0iLA300,310..D,L,LF,X,XF201204-201307

DK.GRAY,TRIM1#

main45287-B2270-B0iLA300,310..G,GF201204-201307

DK.GRAY,TRIM1#

45870TUBE ASSY, STEERING COLUMN

main45870-B2400iLA300,310..D,L,LF,X,XF201204-201307

main45870-B2401iLA300,310..D,L,LF,X,XF201311

main45870-B2430supersedes 45870-B2420iLA300,310..G,GF201307-201310

main45870-B2431iLA300,310..G,GF201311

45897BOLT, STEERING LOCK SET

main45897-B1020×2iLA300,310..G,GF201610

main45897-B2010×2iLA300,310201204-201307

main45897-B5010×2iLA300,310..G,GF201307-201609

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004119747

main90041-19747

9004179294

main90041-79294

9016450034

main90164-50034

9155180822

main91551-80822

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section
