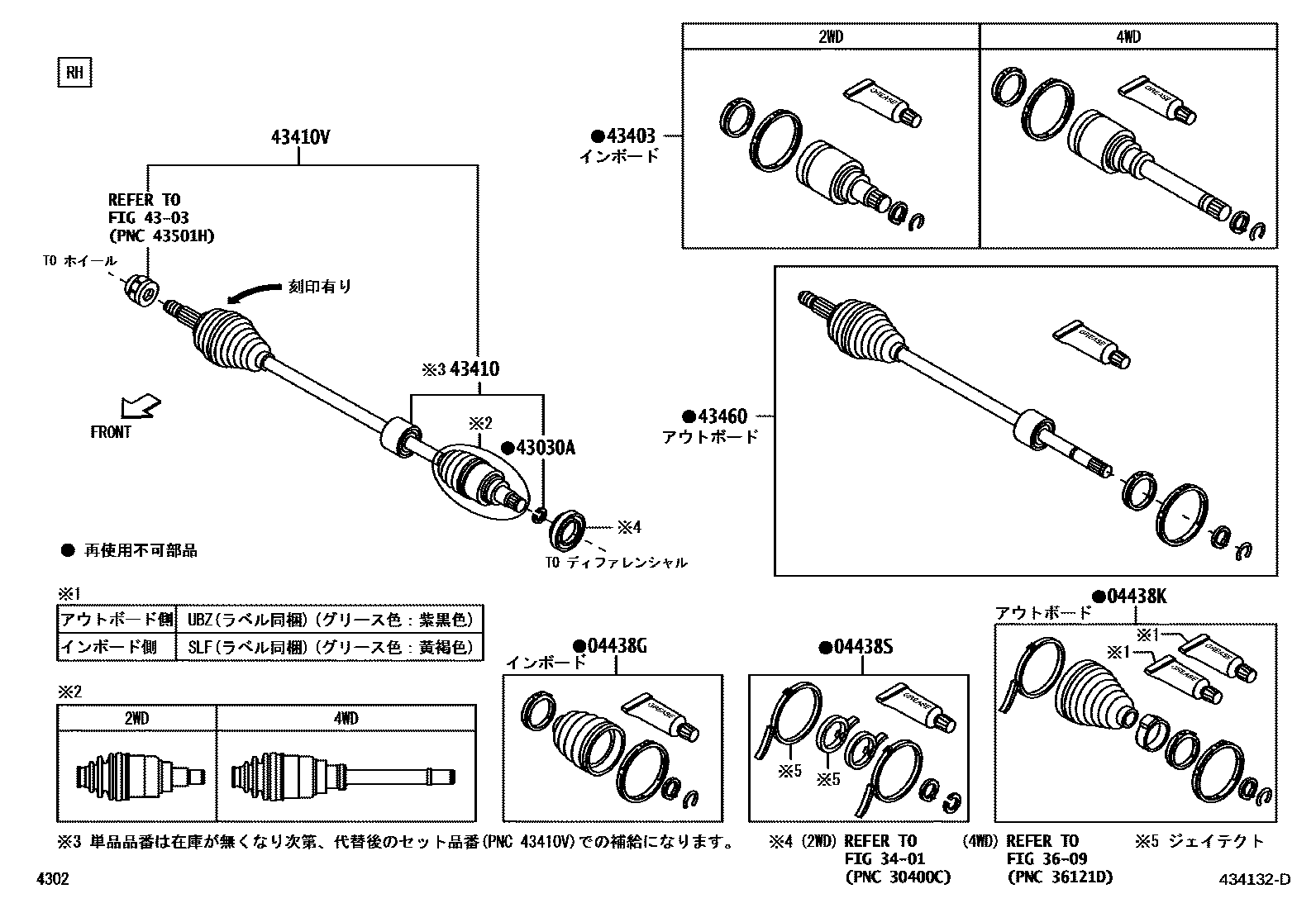

FRONT DRIVE SHAFT

0001 12WD 4WD RH 0002 12WD 4WD LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-B2300iLA300,310201307

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-B2200iLA300,310201204-201307

main04425-B2201iLA300,310201505-201704

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-B2310iLA300,310201204-201307

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

4303FRONT AXLE HUB

→ Go to FIG 43-03

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90045-20232×2iLA300,310201204-201307

43403JOINT SET, FRONT AXLE INBOARD, RH

main43408-B9450iLA300201307

main43408-B9460iLA310201307

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-B2380iLA300201204-201307

main43410-B2381iLA300201505

main43410-B2390iLA310201204-201307

main43410-B2391iLA310201505

43410VSHAFT SET, FRONT DRIVE, RH

main43410-B9640iLA300201307-201704

main43410-B9650iLA310201307-201704

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43411-B9370iLA300201307-201505

main43411-B9371iLA300201505

main43411-B9380iLA310201307-201505

main43411-B9381iLA310201505

11 parts on this diagram · 2 diagrams in section
