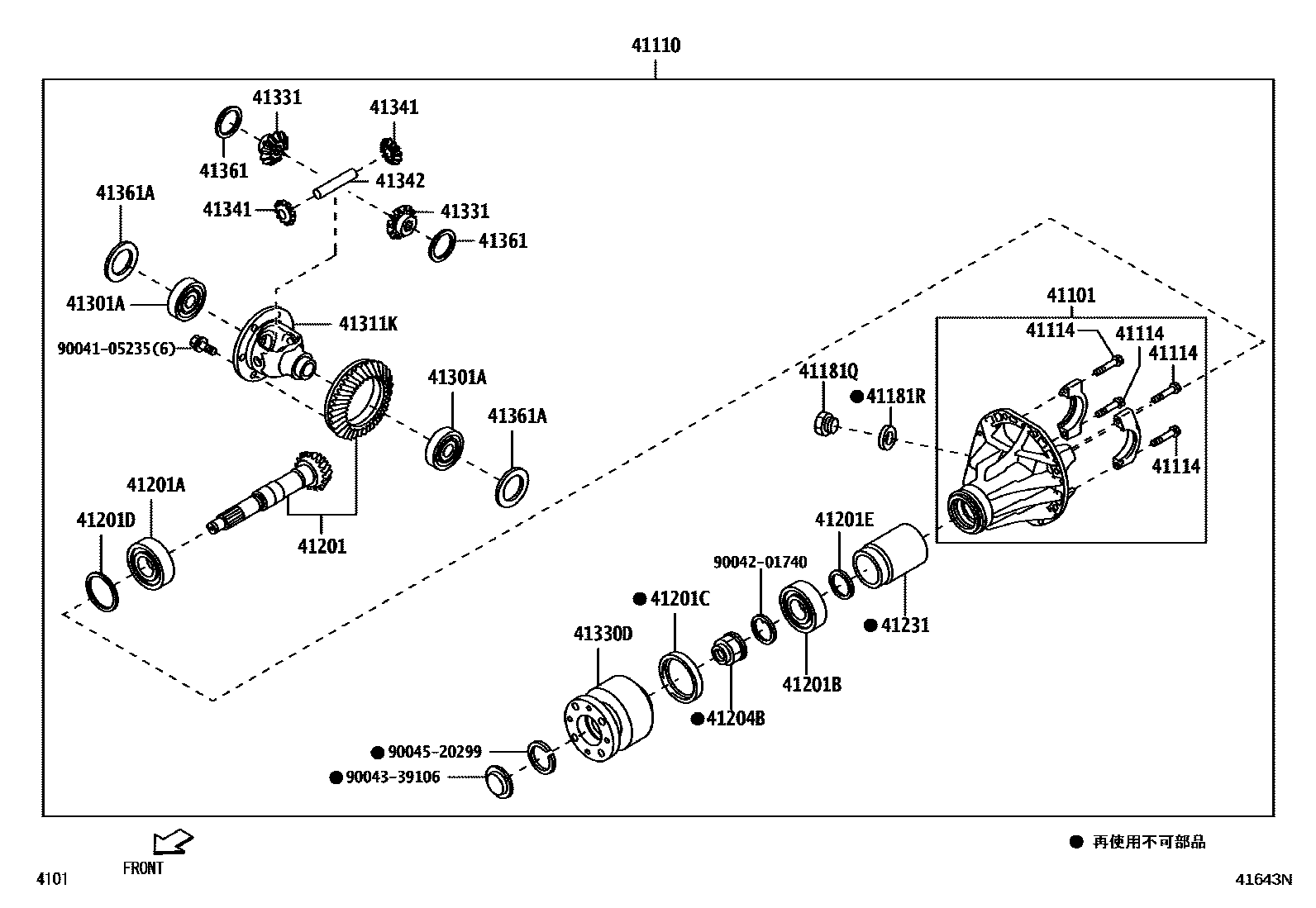

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41181QPLUG(FOR REAR DIFFERENTIAL CARRIER)
41181RGASKET(FOR REAR DIFFERENTIAL CARRIER PLUG)
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
41204BNUT (FOR REAR DRIVE PINION)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41311KCASE, REAR DIFFERENTIAL
41331GEAR, REAR DIFFERENTIAL SIDE
41341PINION, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361ASHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST)
9004105235
main90041-05235
9004201740
main90042-01740
9004339106
main90043-39106
9004520299
main90045-20299
25 parts on this diagram · 3 diagrams in section
