ALTERNATOR

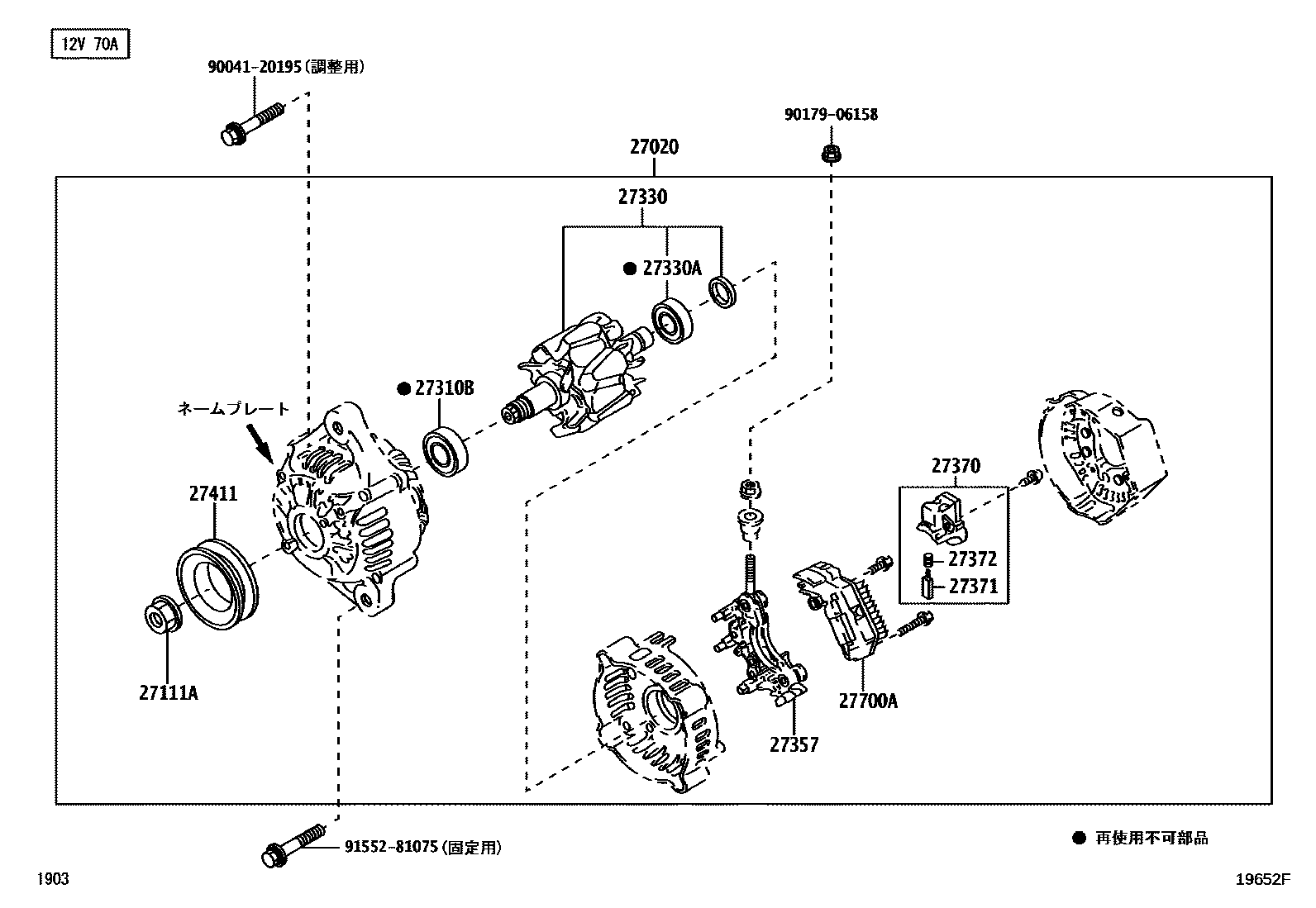

Parts diagram

27020ALTERNATOR ASSY

main27060-B2070i201204-201307

main27060-B2130i201307-201502

main27060-B2170i201502

27111ANUT, ALTERNATOR

main90099-05171i201204-201307

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main9004C-37002i201307

27330ROTOR ASSY, ALTERNATOR

main27330-87716i201204-201307

main27330-B2010i201307-201502

main27330-B5010i201502

27330ABEARING(FOR ALTERNATOR ROTOR)

main27791-87708i201204-201307

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-B1010i201307-201502

main27357-B2010i201204-201307

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-B1010i201307-201502

main27370-B2010i201204-201307

27371BRUSH, ALTERNATOR

main27371-87501×2i201204-201307

27372SPRING, ALTERNATOR BRUSH

main27372-87501×2i201204-201307

27411PULLEY, ALTERNATOR

main27411-97202i201204-201307

main27411-B2010i201307-201704

27700AREGULATOR ASSY, GENERATOR

main27700-B2040i201204-201307

9004120195

main90041-20195

9017906158

main90179-06158

9155281075

main91552-81075

14 parts on this diagram · 3 diagrams in section
