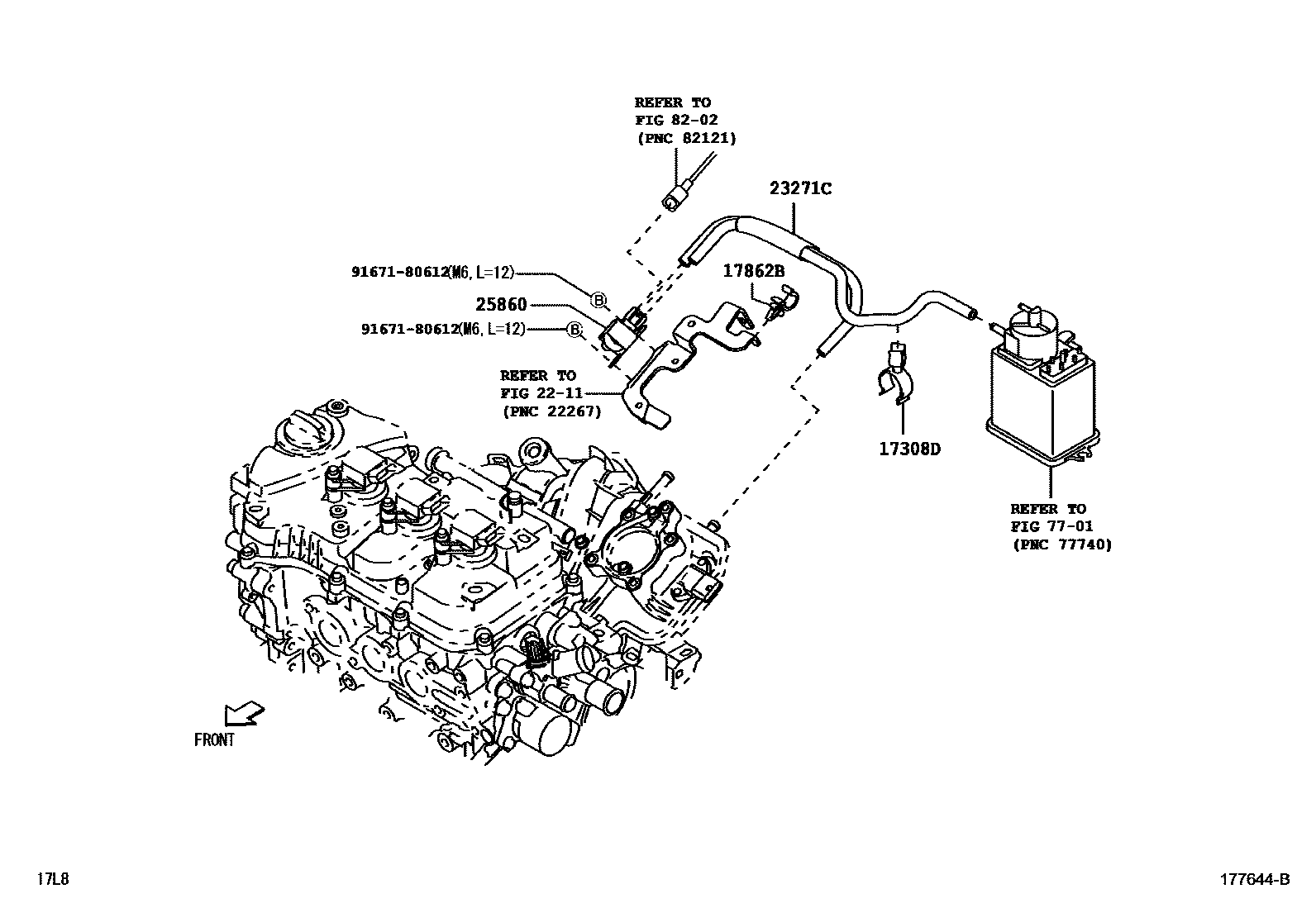

VACUUM PIPING

17308DCLAMP, NO.2(FOR VACUUM HOSE)

main90044-64831iKFVE..LA300,310201204-201307

17862BCLAMP, HOSE

main90044-64779iKFVE..LA300,310201204-201307

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23271CHOSE, FUEL

main77795-B2050iKFVE..LA300,310201204-201307

main77795-B2100iKFVE..LA300,310201407

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main89470-B1020iKFVE..LA300,310201204-201307

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8202WIRING & CLAMP

→ Go to FIG 82-02

9167180612

main91671-80612

8 parts on this diagram · 1 diagram in section
