V-BELT

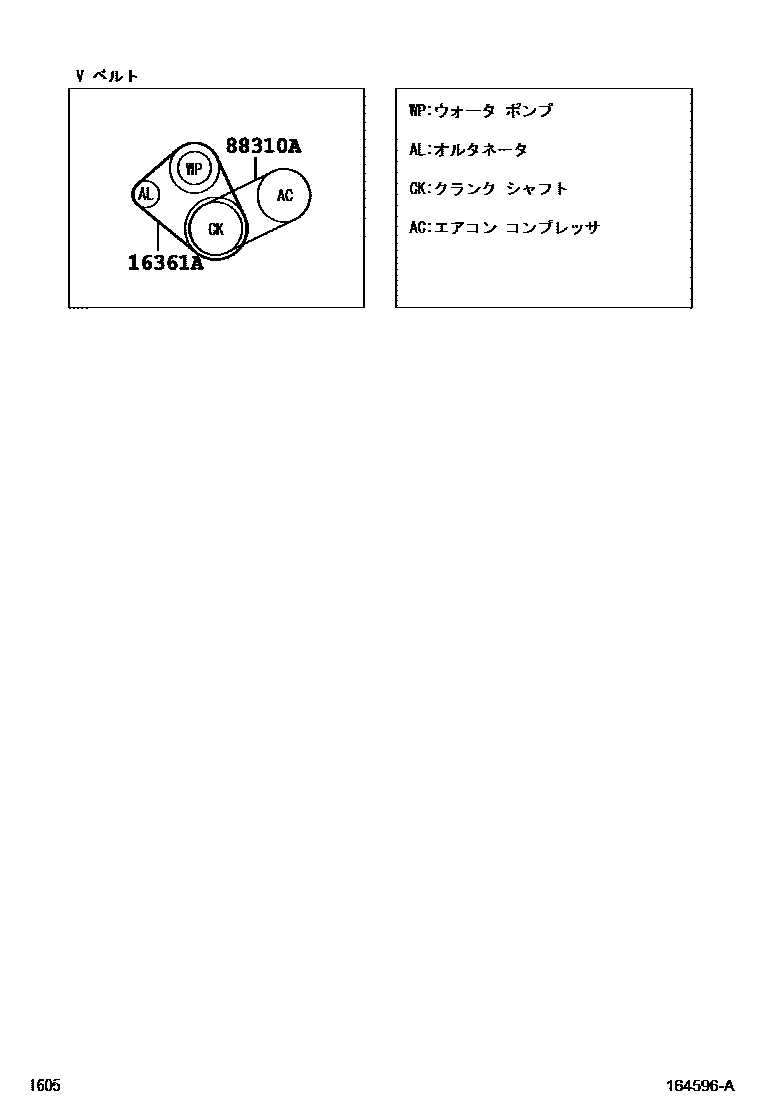

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90048-31089i201204-201307

main90048-31093i201307

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90048-31086i201204-201307

2 parts on this diagram · 1 diagram in section
