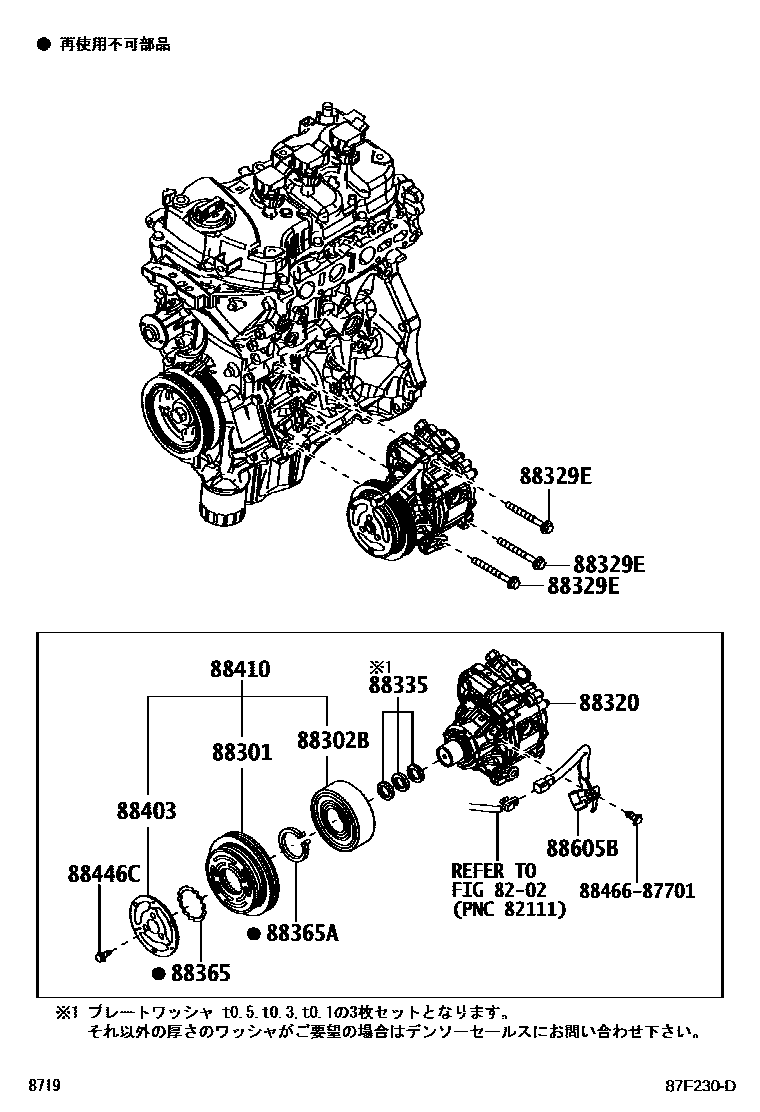

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

8202WIRING & CLAMP

→ Go to FIG 82-02

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B2050iLA250,260201609-201710

main88412-B2060iLA250,260201710-202306

88302BSTATOR, MAGNET CLUTCH

main88411-B1010iLA250,260201609-202306

88320COMPRESSOR ASSY, COOLER

main88320-B2100iLA250,260..CG,CX,FG,FX201609-201807

main88320-B2120iLA250,260..CGT,FGT,S201609-201807

main88320-B2140iLA250,260..CG,CX,FG,FX201808-202207

main88320-B2150iLA250,260..CGT,FGT,S201808-202207

main88320-B2180iLA250,260..FG,FX202207

main88320-B2190iLA250,260..FGT202207

88329EBOLT, COMPRESSOR, NO.1

main88899-12400×3iLA250,260..CG,CGT,CX,S201609-202001

88335GASKET KIT, OVERHAUL

main88335-14020iLA250,260..CGT,FGT,S201710-202207

88365RING, SNAP

main90099-07125iLA250,260201609

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201iLA250,260201609

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-B2020iLA250,260201609-201802

main88403-B2040iLA250,260201802-202306

88410CLUTCH ASSY, MAGNET

main88410-B2090iLA250,260201609-201710

main88410-B2100iLA250,260201710-201801

main88410-B2130iLA250,260201802

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iLA250,260201609

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-B2270iLA250,260201609

8846687701

main88466-87701

13 parts on this diagram · 3 diagrams in section
