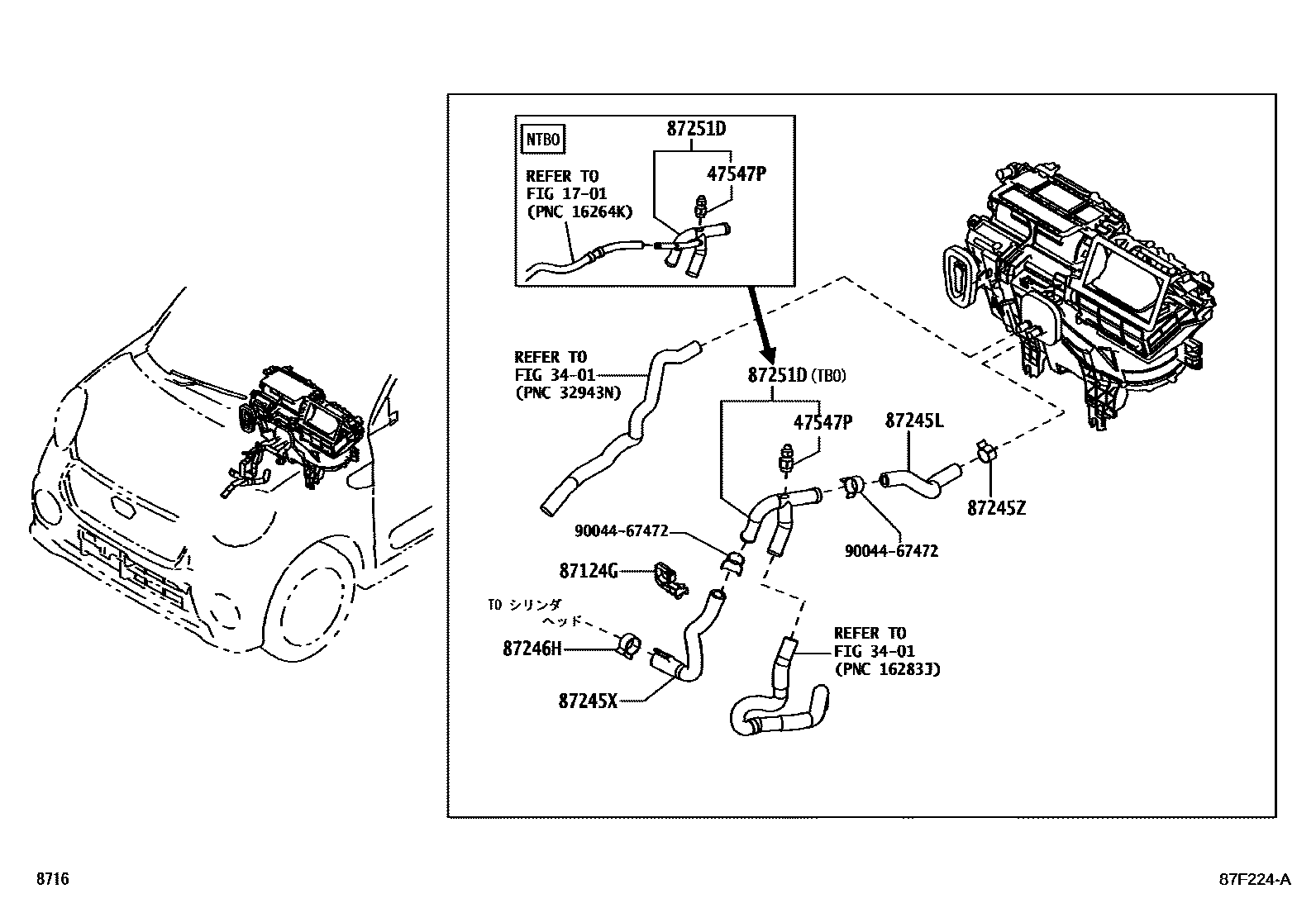

HEATING & AIR CONDITIONING - WATER PIPING

1701MANIFOLD

→ Go to FIG 17-01

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

47547PPLUG, BLEEDER(FOR WATER JOINT)

main47547-B2030iLA250,260201609-202306

87124GCLAMP, HEATER HOSE, NO.2

main87124-B2060iLA250,260..CG,CGT,CX,S201609-202001

87245LHOSE, HEATER WATER, L

main87245-B2240iLA250,260..CG,CGT,CX,S201609-202001

87245XHOSE, HEATER WATER

main87242-B2060iLA250,260..CG,CX201609-202001

main87242-B2150iLA250,260..FGT201609

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96136-42101iLA250,260..CG,CGT,CX,S201609-202001

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96136-42501iLA250,260..CG,CGT,CX,S201609-202001

87251DJOINT, WATER, NO.1

main16035-B2030iLA250,260..CGT,S201609-202001

main16035-B2040iLA250,260..FG,FX201609

9004467472

main90044-67472

10 parts on this diagram · 1 diagram in section
