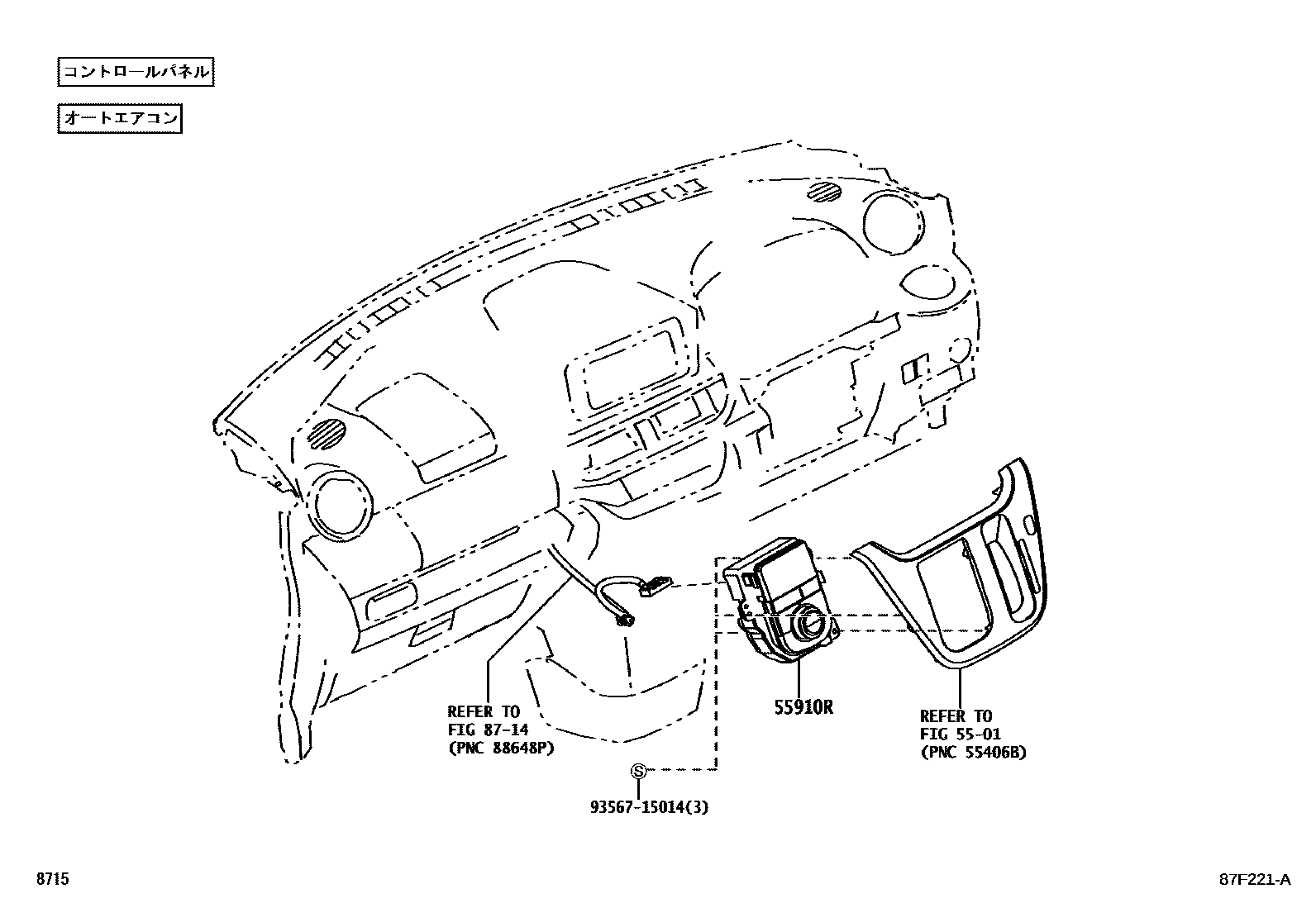

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL ASSY,HEATER 0002 1AIR DUCT 0003 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55910RCONTROL ASSY, HEATER

main55910-B2660iLA250,260..CG,CGT; LA250,260..S; LA250..FG,FGT;LA250..FX..PS1;LA260..(FG,FGT)..PS2;LA260..(FG,FGT,FX)..PS1201609-201807

main55910-B2661iLA250,260..CG,CGT; LA250,260..S201808-202001

main55910-B2670iLA250,260..CG,CGT,CX,FG,FGT,FX201609-201807

main55910-B2671iLA250,260..CG,CGT,CX,FG,FGT,FX201808-202105

main55910-B2672iLA250,260202105

main55910-B2700iLA250,260..FG,FGT202007-202105

main55910-B2701iLA250,260..FG,FGT202105

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

9356715014

main93567-15014

4 parts on this diagram · 3 diagrams in section
