HEATING & AIR CONDITIONING - COOLER UNIT

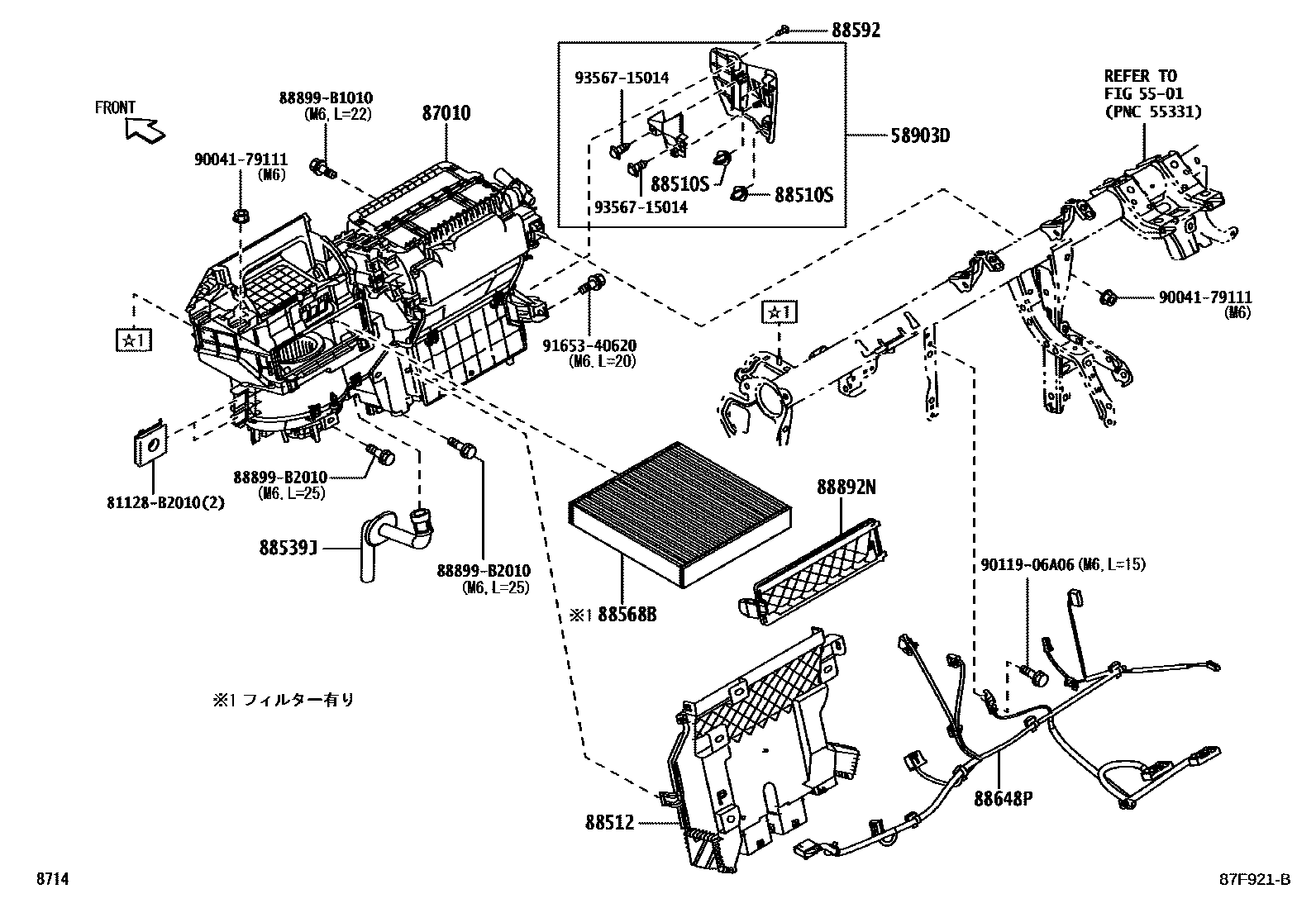

0001 1AIR CONDITIONER 0002 1UNIT ASSY 0003 1UNIT ASSY 0004 1MOTOR ASSY,BLOWER

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

58903DPANEL SUB-ASSY, CONSOLE REAR END(FOR COOL BOX)

main58805-B2020-B0iLA250,260..FG,FGT; LA250,260..FX201710

DK.GRAY,TRIM3#,4#; DK.GRAY,TRIM4#

87010UNIT ASSY, AIR CONDITIONER

main87010-B2D00iLA250,260201609-201701

main87010-B2D30iLA250; LA250..CX,FX; LA260201702-201803

main87010-B2D31iLA250,260201804-201806

main87010-B2D32iLA250,260201807-202207

main87010-B2D33iLA250,260202207-202306

88510SCLIP (FOR COOLER UNIT COVER)

main90467-10161×2iLA250,260201609-202306

88512DUCT, AIR

main87211-B2050supersedes 87211-B2040iLA250; LA250..CX,FX; LA260201609-201701

main87211-B2110supersedes 87211-B2100iLA250; LA260201702

88539JHOSE, DRAIN COOLER

main88539-B2101iLA250,260201609

88568BFILTER, AIR

main88568-B2070supersedes 88568-B2030iLA250,260..CG,CGT,CX,S201609-202001

88592RETAINER (FOR COOLER UNIT BRACKET)

main90044-67579-B0iLA250,260201609-201610

DK.GRAY

main90044-67579-C2iLA250,260..CG,CGT,CX,S201610-202001

BLACK

88648PWIRE,AIR CONDITIONER,NO.1

main88648-B2550iLA250,260..CG,CGT,CX,S201609-202001

88892NCOVER, COOLER, NO.2

main88892-B2080iLA250,260201609

81128B2010NUT, HEADLAMP

main81128-B2010

88899B1010COVER, EVAPORATOR

main88899-B1010

88899B2010COVER, EVAPORATOR

main88899-B2010

9004179111

main90041-79111

9011906A06

main90119-06A06

9165340620

main91653-40620

9356715014

main93567-15014

17 parts on this diagram · 4 diagrams in section
