MIRROR

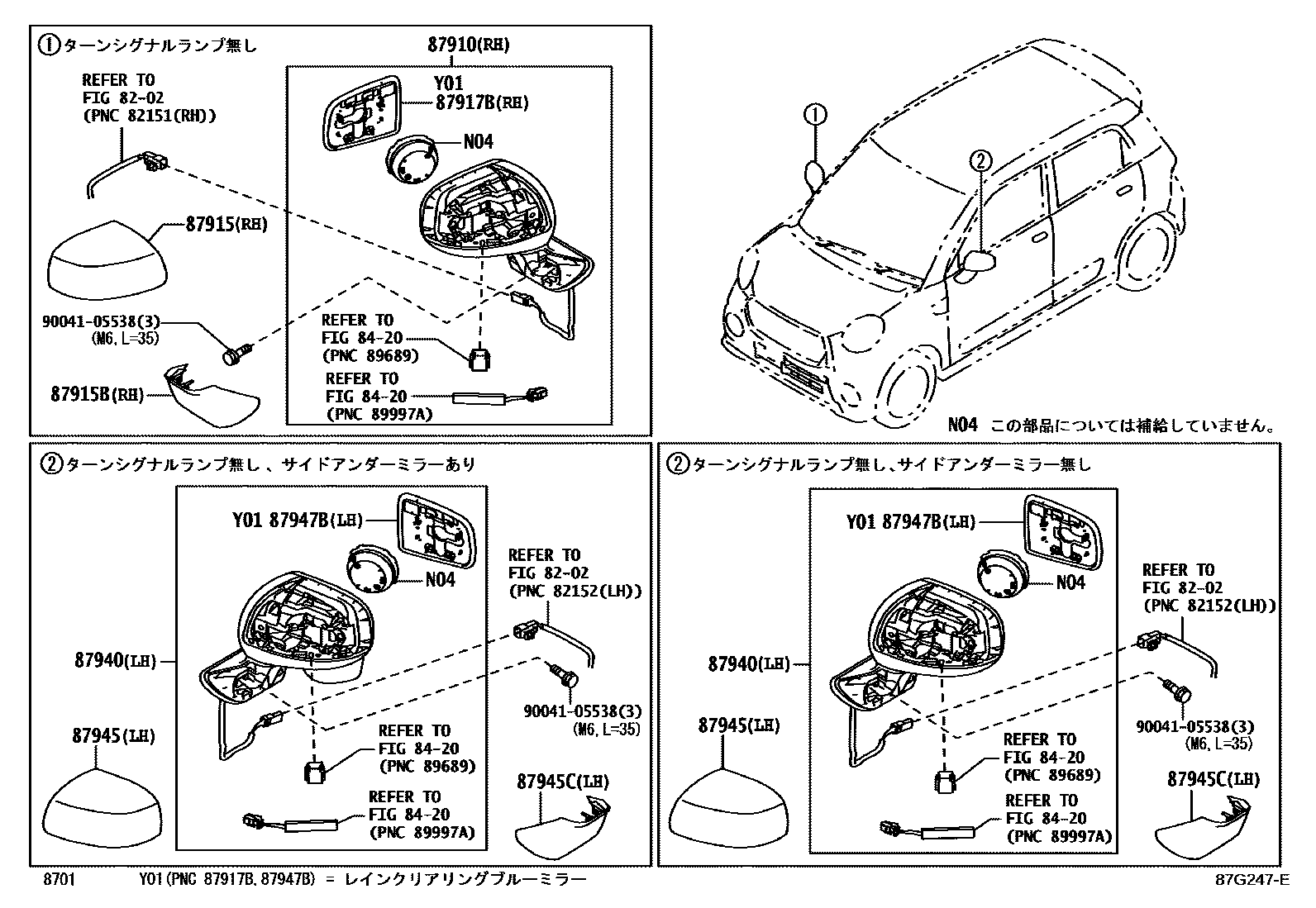

0001 1OUTER MIRROR 0002 1INNER MIRROR

8202WIRING & CLAMP

→ Go to FIG 82-02

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-B2K40supersedes 87910-B2K30iLA250; LA260201609-202012

main87910-B2K41supersedes 87910-B2K31iLA250; LA260202101-202306

87915COVER, OUTER MIRROR, RH

main87915-B2300-A1iLA250,260201609-202009

WHITE PEARL MC.CS,W24

main87915-B2300-A2iLA250,260202008

WHITE PEARL SE.,W25

main87915-B2300-B0iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX201710

SILVER ME.,S28

main87915-B2300-C0supersedes 87915-B2300-D3iLA250,260..CG,CGT,CX; LA250,260..S201710-202001

main87915-B2300-D0iLA250,260..FG,FGT,FX201609

BROWN MC.CS,R59

main87915-B2300-D1iLA250,260..CG,CGT,CX,FG,FGT,FX201609

RED ME.,R67

main87915-B2300-D2iLA250,260..CG,CGT,CX201609-201710

ORANGE ME.,R71

main87915-B2300-D3supersedes 87915-B2300-C0iLA250,260..FG,FGT,FX; LA250,260..S201609-201710

main87915-B2300-E0iLA250,260..FG,FGT,FX201609

LT.ROSE M.M.,T22

main87915-B2300-F1iLA250,260..CG,CGT,CX201710-202001

YELLOW SE.,Y13

main87915-B2300-G1iLA250,260..CG,CGT,CX201710-202001

KHAKI ME.,G55

main87915-B2300-G4iLA250,260..FG,FGT,FX201710

DARK GREEN MC.,G58

main87915-B2300-J5iLA250,260..S201710

DARK BLUE SE.,B79

main87915-B2300-J6iLA250,260..CG,CGT,CX201609-202001

BLUE,B80

main87915-B2300-A0iLA250,260..CG,CGT,CX201609

87915BCOVER, OUTER MIRROR, LOWER RH

main87915-B2400iLA250,260201609

87917BMIRROR, OUTER REAR VIEW, RH

main87917-B2260supersedes 87917-B2250iLA250; LA260201609-202012

main87917-B2390supersedes 87917-B2380iLA250; LA260202101-202306

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-B2M70supersedes 87940-B2M60iLA250..CG,CGT,CX; LA250..CX; LA260..CG,CGT,CX201609-202001

main87940-B2M90supersedes 87940-B2M80iLA250..FG,FGT,FX,S; LA260..FG,FGT,FX,S201609-202012

main87940-B2M91supersedes 87940-B2M81iLA250; LA260202101-202306

87945COVER, OUTER MIRROR, LH

main87945-B2300-A1iLA250,260201609-202009

WHITE PEARL MC.CS,W24

main87945-B2300-A2iLA250,260202008

WHITE PEARL SE.,W25

main87945-B2300-B0iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX201710

SILVER ME,S28

main87945-B2300-C0supersedes 87945-B2300-D3iLA250,260..CG,CGT,CX; LA250,260..S201710-202001

main87945-B2300-D0iLA250,260..FG,FGT,FX201609

BROWN MC.CS,R59

main87945-B2300-D1iLA250,260..CG,CGT,CX,FG,FGT,FX201609

RED ME.,R67

main87945-B2300-D2iLA250,260..CG,CGT,CX201609-201710

ORANGE ME.,R71

main87945-B2300-D3supersedes 87945-B2300-C0iLA250,260..FG,FGT,FX; LA250,260..S201609-201710

main87945-B2300-E0iLA250,260..FG,FGT,FX201609

LT.ROSE M.M.,T22

main87945-B2300-F1iLA250,260..CG,CGT,CX201710-202001

YELLOW SE.,Y13

main87945-B2300-G1iLA250,260..CG,CGT,CX201710-202001

KHAKI ME.,G55

main87945-B2300-G4iLA250,260..FG,FGT,FX201710

DARK GREEN MC.,G58

main87945-B2300-J5iLA250,260..S..PS1;LA250,260..CG,CGT,CX,FG,FGT,FX201609-202001

DARK BLUE SE.,B79

main87945-B2300-J6iLA250,260..CG,CGT,CX201609-202001

BLUE,B80

main87945-B2300-A0iLA250,260..CG,CGT,CX201609

87945CCOVER, OUTER MIRROR, LOWER LH

main87945-B2400iLA250,260201609

87947BMIRROR, OUTER REAR VIEW, LH

main87947-B2310supersedes 87947-B2300iLA250; LA260201609-202012

main87947-B2430supersedes 87947-B2420iLA250; LA260202101-202306

9004105538

main90041-05538

11 parts on this diagram · 2 diagrams in section
