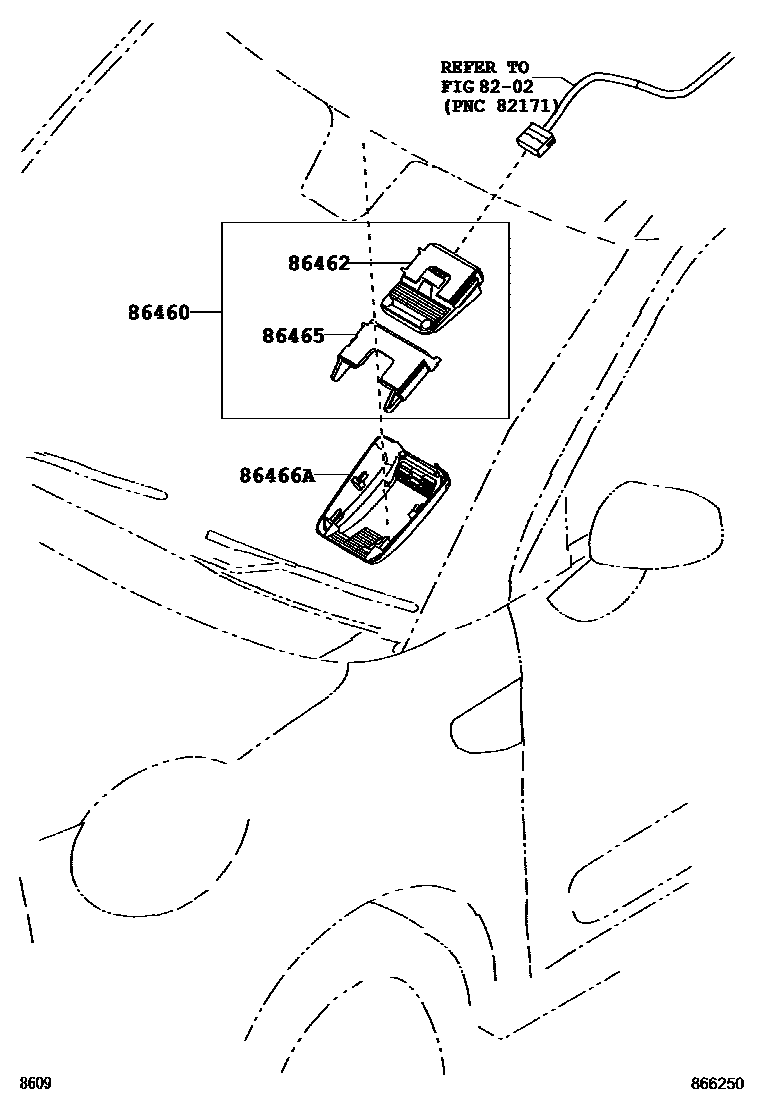

LANE-KEEPING ASSIST

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

86460SENSOR ASSY, LANE RECOGNITION CAMERA

main86460-B2020iLA250,260; LA250,260..CX,FX201609-201710

main86460-B2080iLA250,260; LA250,260..CX,FX201710-201808

main86460-B2081iLA250,260201809

mainGAITONASHIiLA250,260..CX,FX201609-201710

86462CAMERA, OBJECT RECOGNITION

main8646C-B2030iLA250,260; LA250,260..CX,FX201609-201710

main8646C-B2090iLA250,260; LA250,260..CX,FX201710-201808

main8646C-B2091iLA250,260201809

mainGAITONASHIiLA250,260..CX,FX201710

86465BRACKET, LANE RECOGNITION

main87241-B2090iLA250,260; LA250,260..CX,FX201609-201710

main87241-B2120iLA250,260201710

mainGAITONASHIiLA250,260..CX,FX201609-201710

86466ACOVER, LANE RECOGNITION, NO.1

main86466-B2050-B1iLA250,260..CG,CGT,CX; LA250,260..CX; LA250,260..FG,FGT,FX; LA250,260..FX; LA250,260..S201609-201710

main86466-B2160-C0iLA250,260..FG,FGT; LA250,260..FX201710

BLACK,TRIM3#,4#; BLACK,TRIM4#

mainGAITONASHIiLA250,260..CX,FX201710

5 parts on this diagram · 2 diagrams in section
