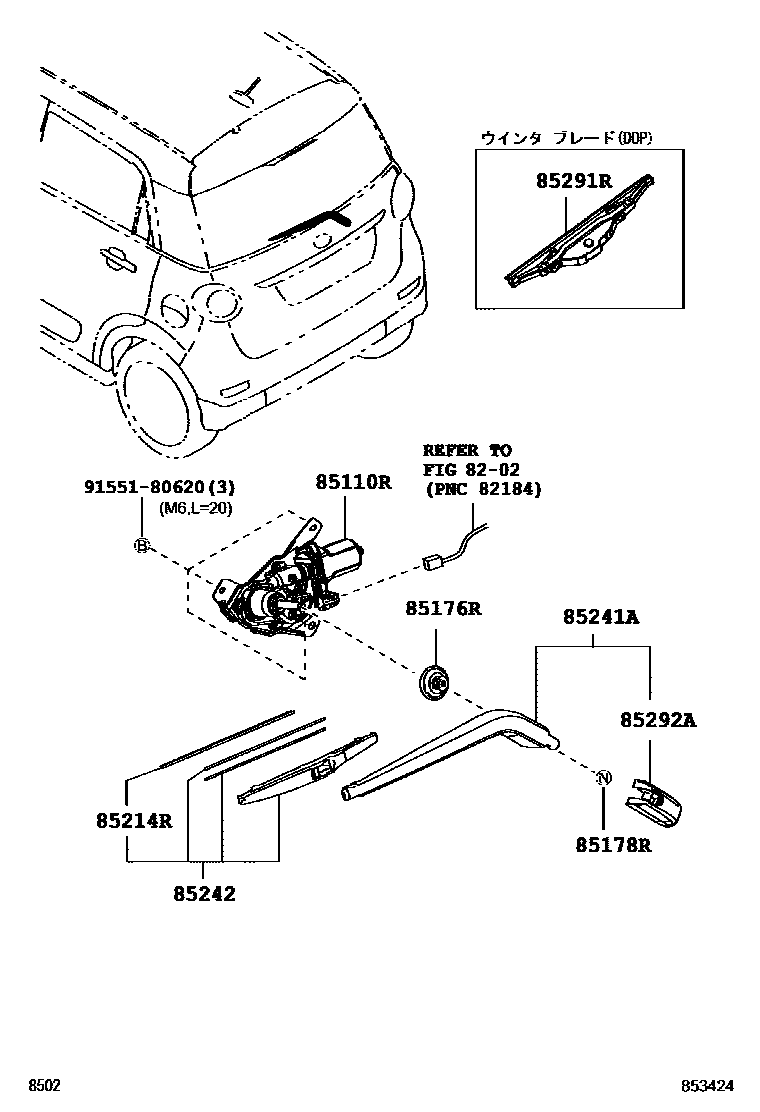

REAR WIPER

8202WIRING & CLAMP

→ Go to FIG 82-02

85110RMOTOR ASSY, REAR WIPER

main85130-B2180iLA250,260201609

85176RCAP, REAR WIPER LINK

main85176-B2060iLA250,260201609

85178RNUT (FOR REAR WIPER ARM SETTING)

main94130-60640iLA250,260201609

85214RRUBBER, REAR WIPER

main85214-12310iLA250,260201609

85241AARM, REAR WIPER

main85241-B2090iLA250,260201609

85242BLADE, RR WIPER

main85242-B2060iLA250,260201609

85291RBLADE,REAR WIPER, WINTER

main85291-97403iLA250,260201609

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iLA250,260201609

9155180620

main91551-80620

10 parts on this diagram · 1 diagram in section
