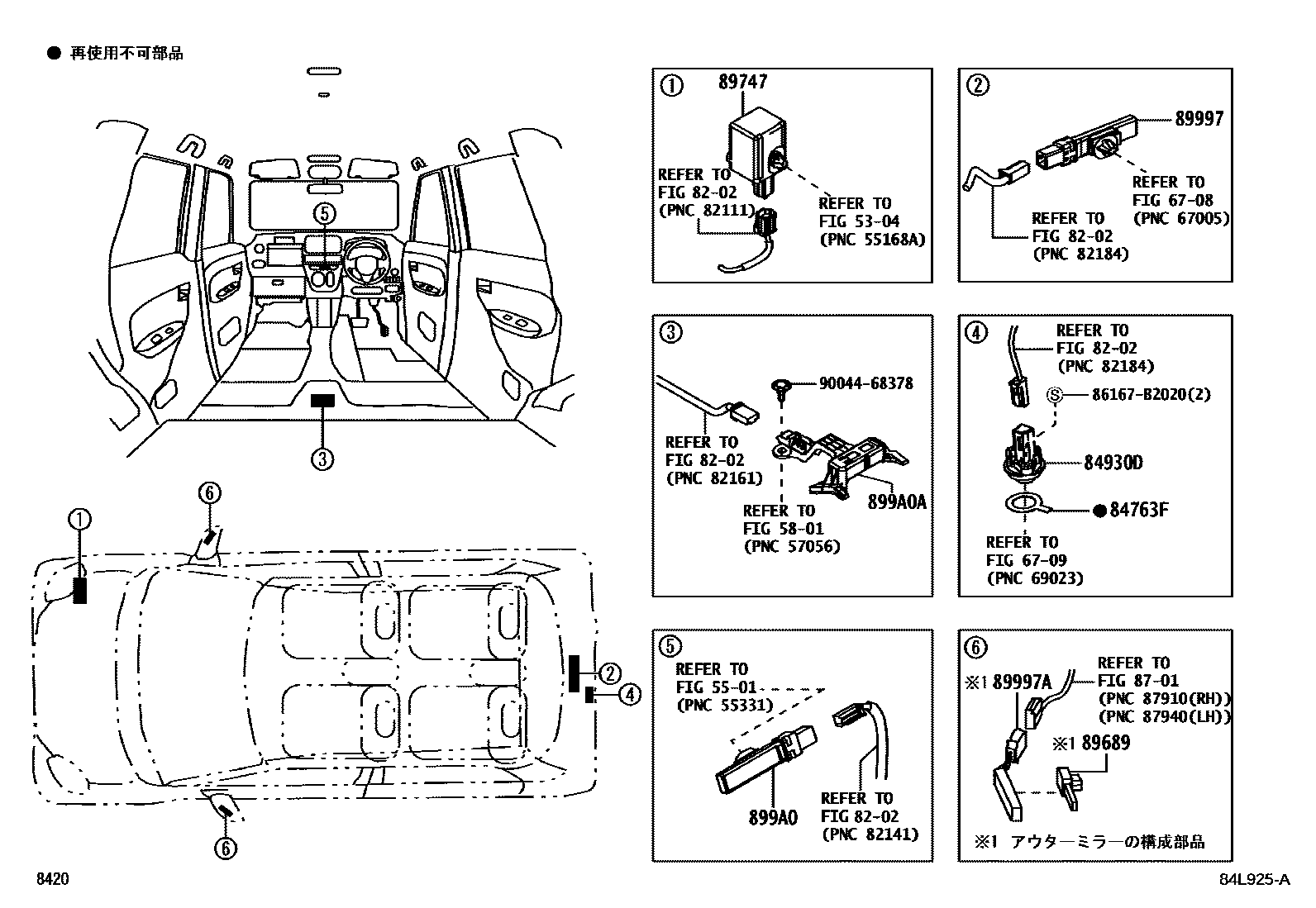

WIRELESS DOOR LOCK

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

8202WIRING & CLAMP

→ Go to FIG 82-02

84763FPLATE, SWITCH

main81818-B2090iLA250,260201609

84930DSWITCH, DOOR CONTROL

main84905-B2110iLA250,260201609

8701MIRROR

→ Go to FIG 87-01

89689CLAMP, WIRELESS DOOR LOCK

main87616-B2010×2iLA250,260201609

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iLA250,260201609

89997ANTENNA, ELECTRICAL KEY

main89997-B2360iLA250,260201609

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-B2380×2iLA250,260201609

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main89997-B2360iLA250,260201609

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main89997-B2370iLA250,260201609

86167B2020SCREW, SPEAKER

main86167-B2020

9004468378

main90044-68378

17 parts on this diagram · 1 diagram in section
