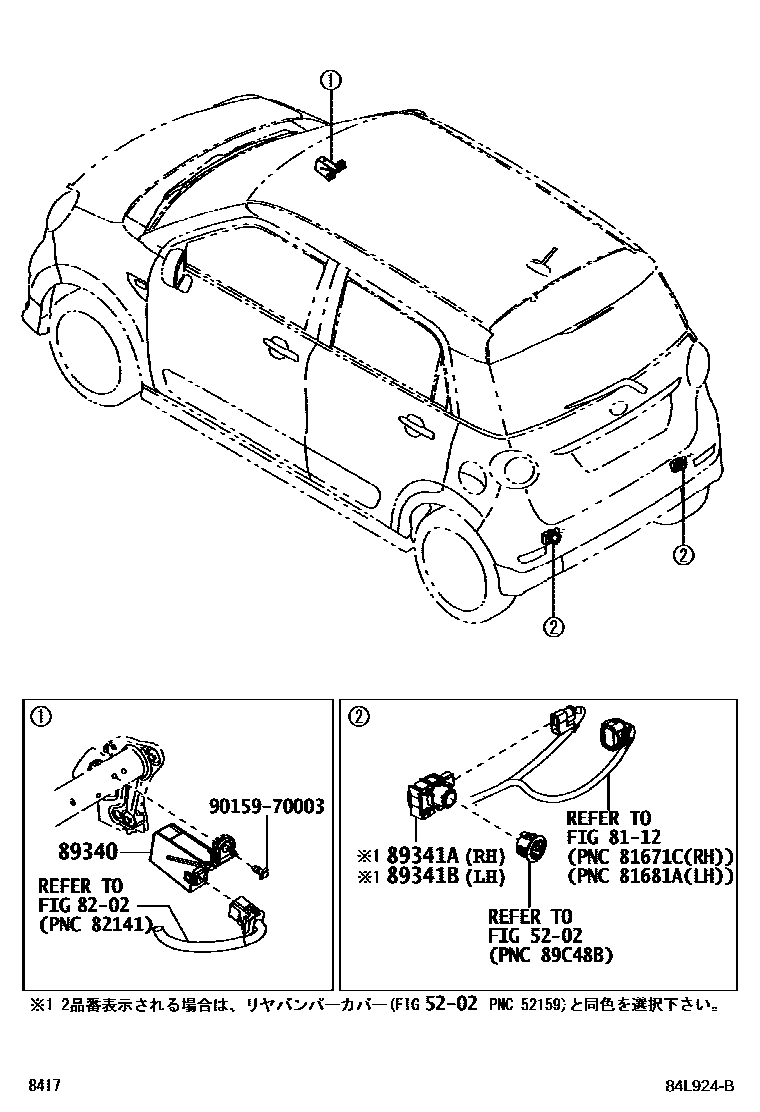

CLEARANCE & BACK SONAR

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

8112BACK UP LAMP

→ Go to FIG 81-12

8202WIRING & CLAMP

→ Go to FIG 82-02

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-B2060iLA250,260201609

mainGAITONASHIiLA250,260..CX,FX201710

89341ASENSOR, ULTRASONIC, NO.1

main89341-B2020-A1iLA250,260..FG,FGT,FX,S201609-202009

WHITE PEARL MC.CS,W24

main89341-B2020-A3iLA250,260202008

WHITE PEARL SE.,W25

main89341-B2020-B0iLA250,260..S..PS2;LA250,260..(FG,FGT,FX)..PS1201609-202001

SILVER ME.,S28

main89341-B2020-B2iLA250,260..CG,CGT,CX; LA250,260..CX201609-201710

main89341-B2020-C0iLA250,260..FG,FGT,FX,S201609

BLACK M.M.,X07

main89341-B2020-D0iLA250,260..FG,FGT,FX201609

BROWN MC.CS,R59

main89341-B2020-D1iLA250,260..FG,FGT,FX201609

RED ME.,R67

main89341-B2020-D3iLA250,260..FG,FGT,FX,S; LA250,260..FX201609-201710

main89341-B2020-E1iLA250,260..FG,FGT,FX201609

LT.ROSE M.M.,T22

main89341-B2020-G2iLA250,260..FG,FGT,FX201710

DARK GREEN MC.,G58

main89341-B2020-J1iLA250,260..S..PS1;LA250,260..FG,FGT,FX201609-202001

DARK BLUE SE.,B79

mainGAITONASHIiLA250,260..CX,FX201710

89341BSENSOR, ULTRASONIC, NO.2

main89341-B2020-A1iLA250,260..FG,FGT,FX,S201609-202009

WHITE PEARL MC.CS,W24

main89341-B2020-A3iLA250,260202008

WHITE PEARL SE.,W25

main89341-B2020-B0iLA250,260..S..PS2;LA250,260..(FG,FGT,FX)..PS1201609-202001

SILVER ME.,S28

main89341-B2020-B2iLA250,260..CG,CGT,CX; LA250,260..CX201609-201710

main89341-B2020-C0iLA250,260..FG,FGT,FX,S201609

BLACK M.M.,X07

main89341-B2020-D0iLA250,260..FG,FGT,FX201609

BROWN MC.CS,R59

main89341-B2020-D1iLA250,260..FG,FGT,FX201609

RED ME.,R67

main89341-B2020-D3iLA250,260..FG,FGT,FX,S; LA250,260..FX201609-201710

main89341-B2020-E1iLA250,260..FG,FGT,FX201609

LT.ROSE M.M.,T22

main89341-B2020-G2iLA250,260..FG,FGT,FX201710

DARK GREEN MC.,G58

main89341-B2020-J1iLA250,260..S..PS1;LA250,260..FG,FGT,FX201609-202001

DARK BLUE SE.,B79

mainGAITONASHIiLA250,260..CX,FX201609-201710

9015970003

main90159-70003

7 parts on this diagram · 1 diagram in section
