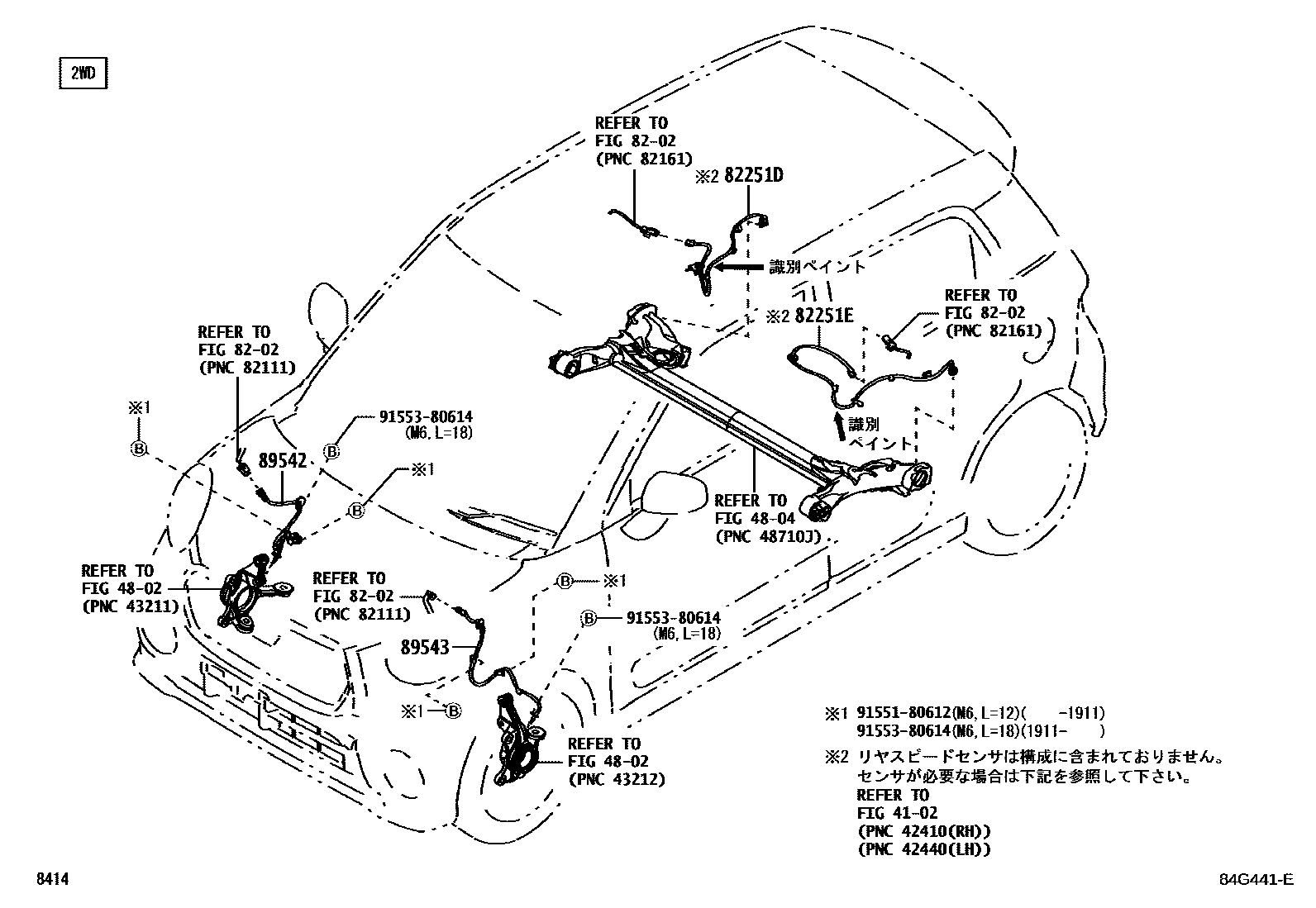

ABS & VSC

0001 12WD 0002 14WD

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8202WIRING & CLAMP

→ Go to FIG 82-02

82251DWIRE, SPEED SENSOR, RH

main82251-B2250iLA250201609-202306

82251EWIRE, SPEED SENSOR, LH

main82251-B2160iLA260201609-202306

main82251-B2260iLA250201609-202306

89542SENSOR, SPEED, FRONT RH

main89542-B2090iLA250,260201609-201703

main89542-B2130iLA250,260201704-202306

89543SENSOR, SPEED, FRONT LH

main89543-B2030iLA250,260201609-201703

main89543-B2130iLA250,260201704

9155180612

main91551-80612

9155380614

main91553-80614

10 parts on this diagram · 2 diagrams in section
