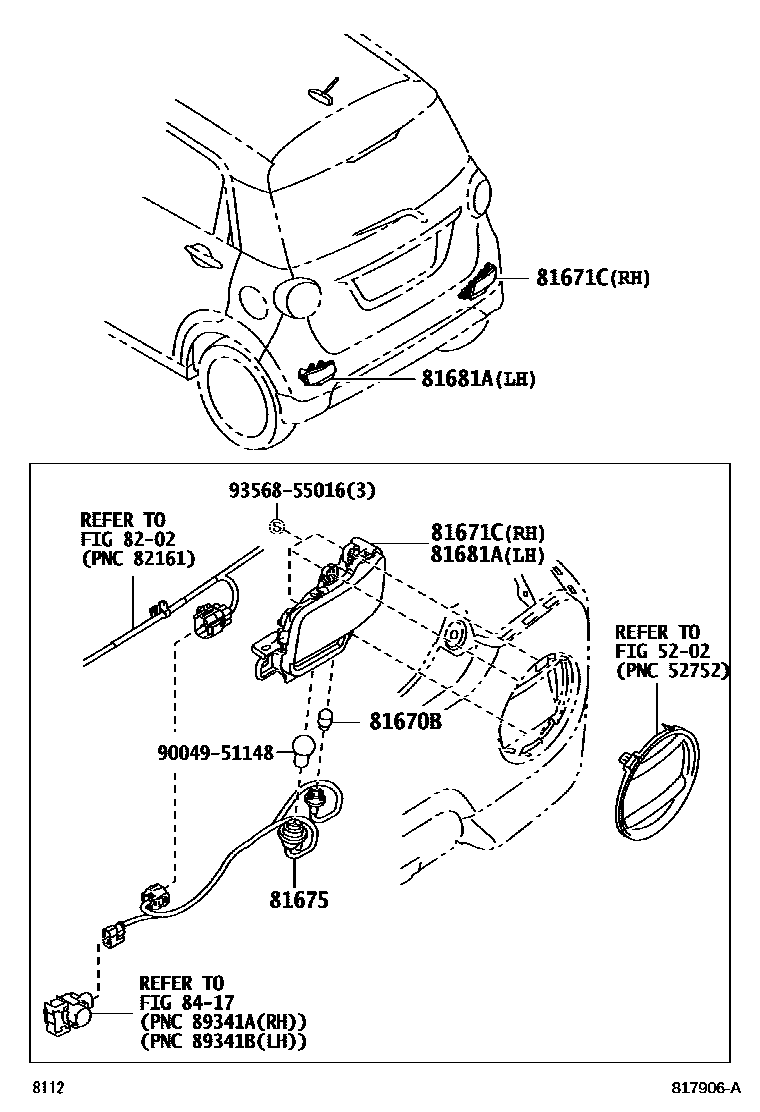

BACK UP LAMP

0001 1 0002 1

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

81670BBULB(FOR BACK-UP LAMP)

main90981-11059×2iLA250,260201609

81671CLENS & BODY, BACK-UP LAMP, RH

main81671-B2040iLA250,260..CG,CGT,CX201609-202001

main81671-B2050iLA250,260..FG,FGT,FX,S201609-202306

81675SOCKET & WIRE, BACK-UP LAMP

main81675-B2010×2iLA250,260201609

main81675-B2030×2iLA250,260..CX,FX201710-202001

81681ALENS & BODY, BACK-UP LAMP, LH

main81681-B2040iLA250,260..CG,CGT,CX201609-202001

main81681-B2050iLA250,260..FG,FGT,FX,S201609-202306

8202WIRING & CLAMP

→ Go to FIG 82-02

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9004951148

main90049-51148

9356855016

main93568-55016

9 parts on this diagram · 2 diagrams in section
