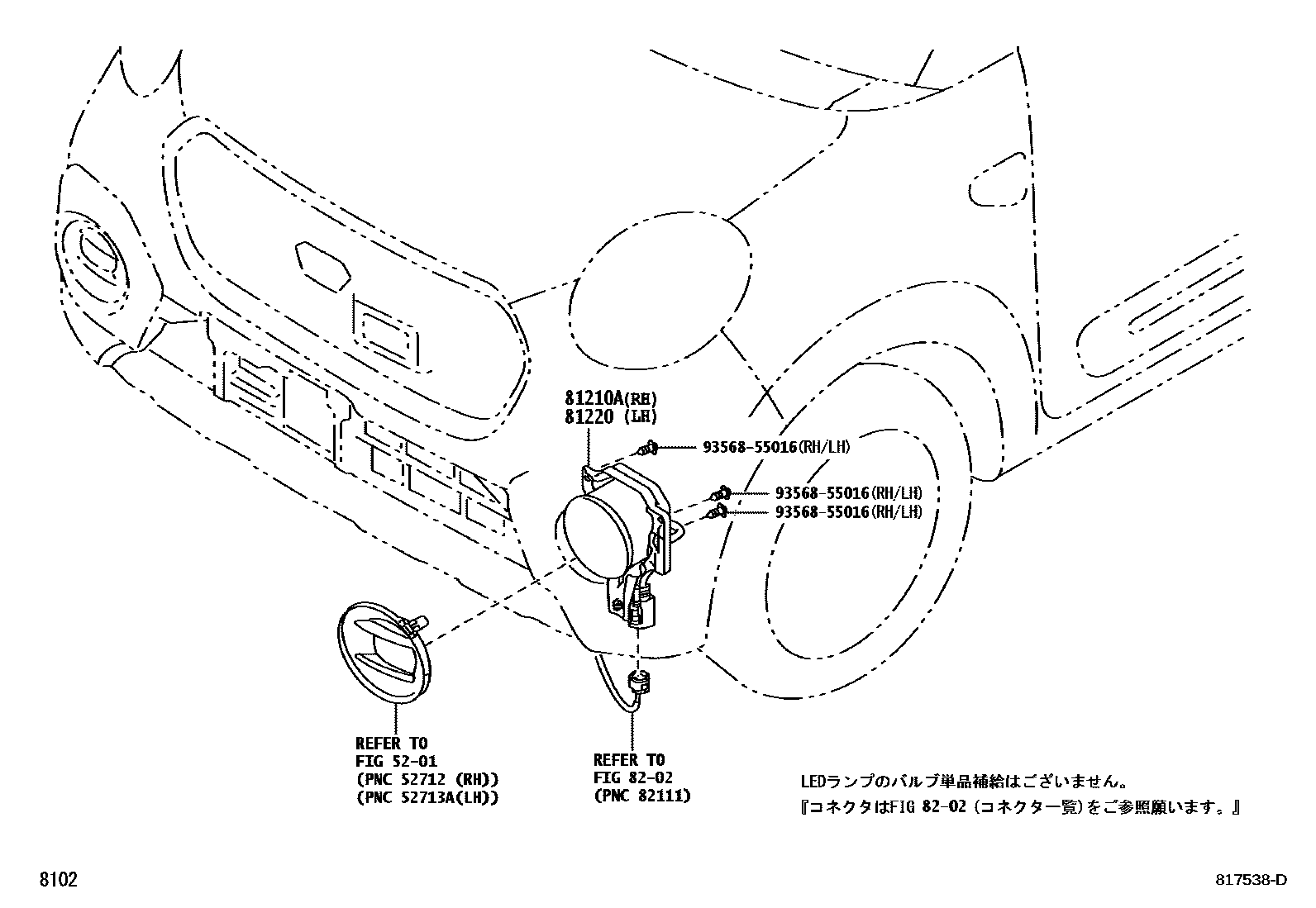

FOG LAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-B2510iLA250,260..CG,CGT,FG,FGT,S201609-202306

81220LAMP ASSY, FOG, LH

main81220-B2280iLA250,260..CG,CGT,FG,FGT,S201609

8202WIRING & CLAMP

→ Go to FIG 82-02

9356855016

main93568-55016

5 parts on this diagram · 2 diagrams in section
