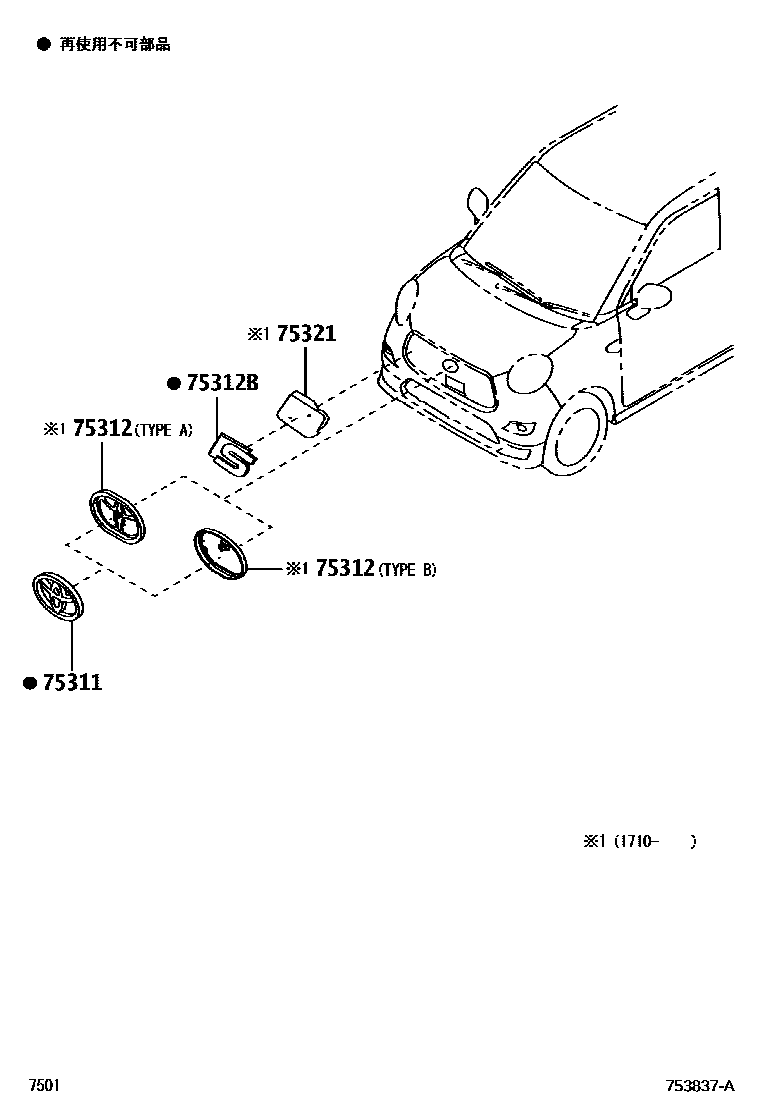

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-02064iLA250,260201710-202306

main90975-02176iLA250,260201609-201710

75312BASE, RADIATOR GRILLE EMBLEM

main75312-B2110iLA250,260..CG,CGT,CX201710-202001

main75312-B2130iLA250,260..FG,FGT,FX201710-202306

main75312-B2150iLA250,260..S201710-202001

75312BEMBLEM, RADIATOR GRILLE, NO.2

main75312-B2060iLA250,260..S201609-202001

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-B2010iLA250,260..S201710-202001

4 parts on this diagram · 2 diagrams in section
