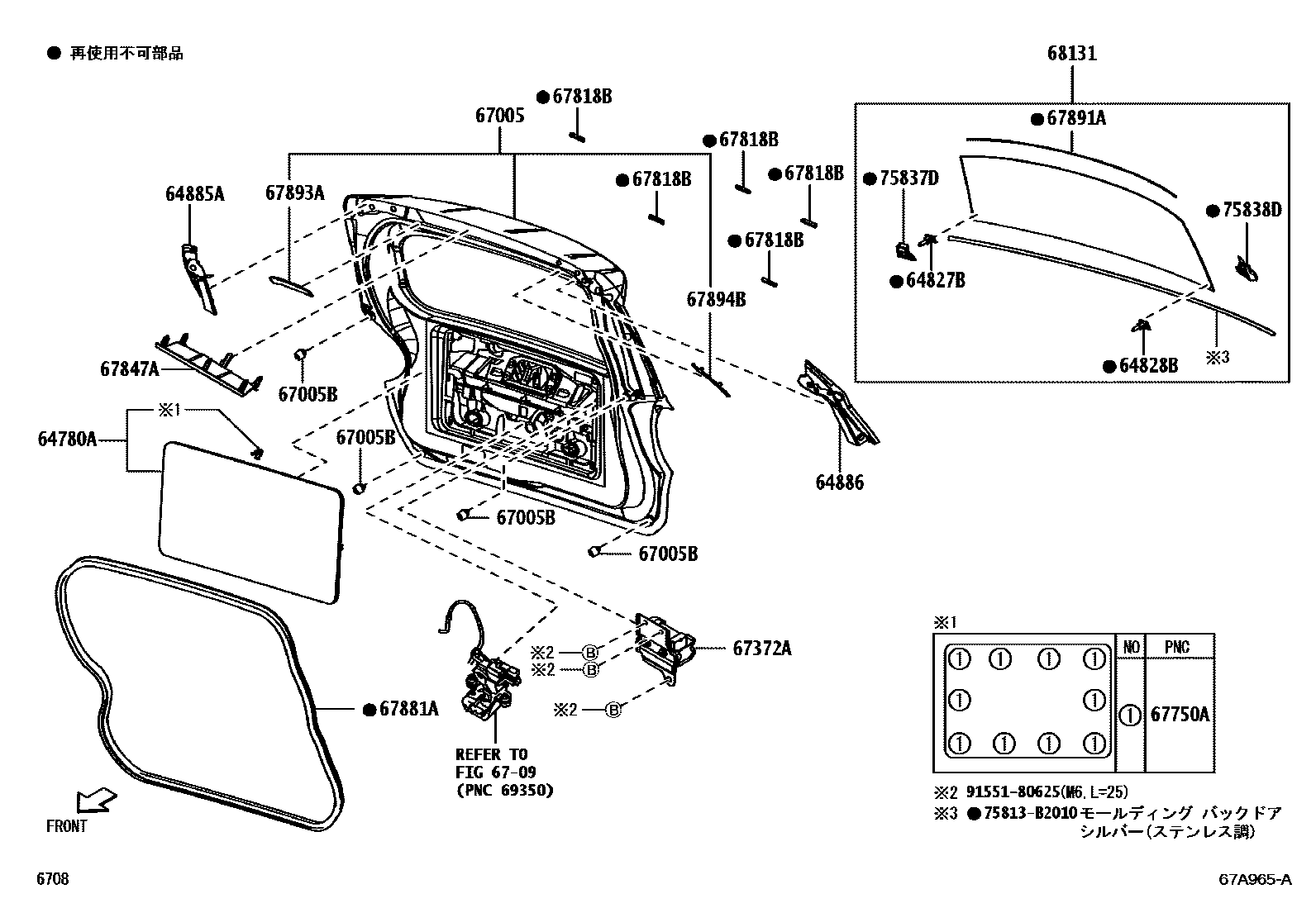

BACK DOOR PANEL & GLASS

0001 1ILLUST NO.1 OF 2 0002 1ILLUST NO.2 OF 2 0003 1ILLUST NO.1 OF 3 0004 1ILLUST NO.2 OF 3 0005 1ILLUST NO.3 OF 3

64780APANEL ASSY, BACK DOOR TRIM

main64780-B2160-B0iLA250,260..FG,FGT,FX201609-201710

LT.GRAY,TRIM1#,4#

64827BCLIP, BACK WINDOW GLASS, RH

main64827-B2080iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

64828BCLIP, BACK WINDOW GLASS, LH

main64828-B2020iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

64885ACHANNEL, BACK WINDOW GLASS, RH

main64885-B2040iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

64886CHANNEL, BACK WINDOW GLASS, LH

main64886-B2040iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

67005PANEL SUB-ASSY, BACK DOOR

main67005-B2A01-B0iLA250,260..CG,CGT,CX201609-201811

main67005-B2C91-B0iLA250,260..S201609-201811

main67005-B2G60-B0iLA250,260..CG,CGT,CX201812-202001

main67005-B2G70-B0iLA250,260..FG,FGT; LA250,260..FX201812-202306

67005BCUSHION(FOR BACK DOOR PANEL)

main90045-41273×4iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

67372AWEIGHT, BACK DOOR

main67049-B2020iLA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1201609

67750ACLIP(FOR BACK DOOR TRIM)

main90467-05172×10iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

67818BSPACER, BACK WINDOW GLASS

main64818-B2010×5iLA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1201609

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-B2110iLA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1201609

67881AWEATHERSTRIP, BACK DOOR

main67881-B2270iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

67891ASEAL, BACK DOOR

main67891-B2050iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

67893APROTECTOR, BACK DOOR PANEL, NO.1

main76835-B2040-B0iLA250,260..FG,FGT; LA250,260..FX201710

LT.GRAY,TRIM3#,4#; LT.GRAY,TRIM4#

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main76836-B2040-B0iLA250,260..CG,CGT,CX; LA250,260..S201609-202001

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#

68131GLASS, BACK DOOR

main68105-B2350iLA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1201609

75837DCOVER, BACK DOOR FINISH, RH

main75583-B2010iLA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1201609

75838DCOVER, BACK DOOR FINISH, LH

main75584-B2010iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

75813B2010MOULDING, BACK DOOR

main75813-B2010

9155180625

main91551-80625

21 parts on this diagram · 5 diagrams in section
