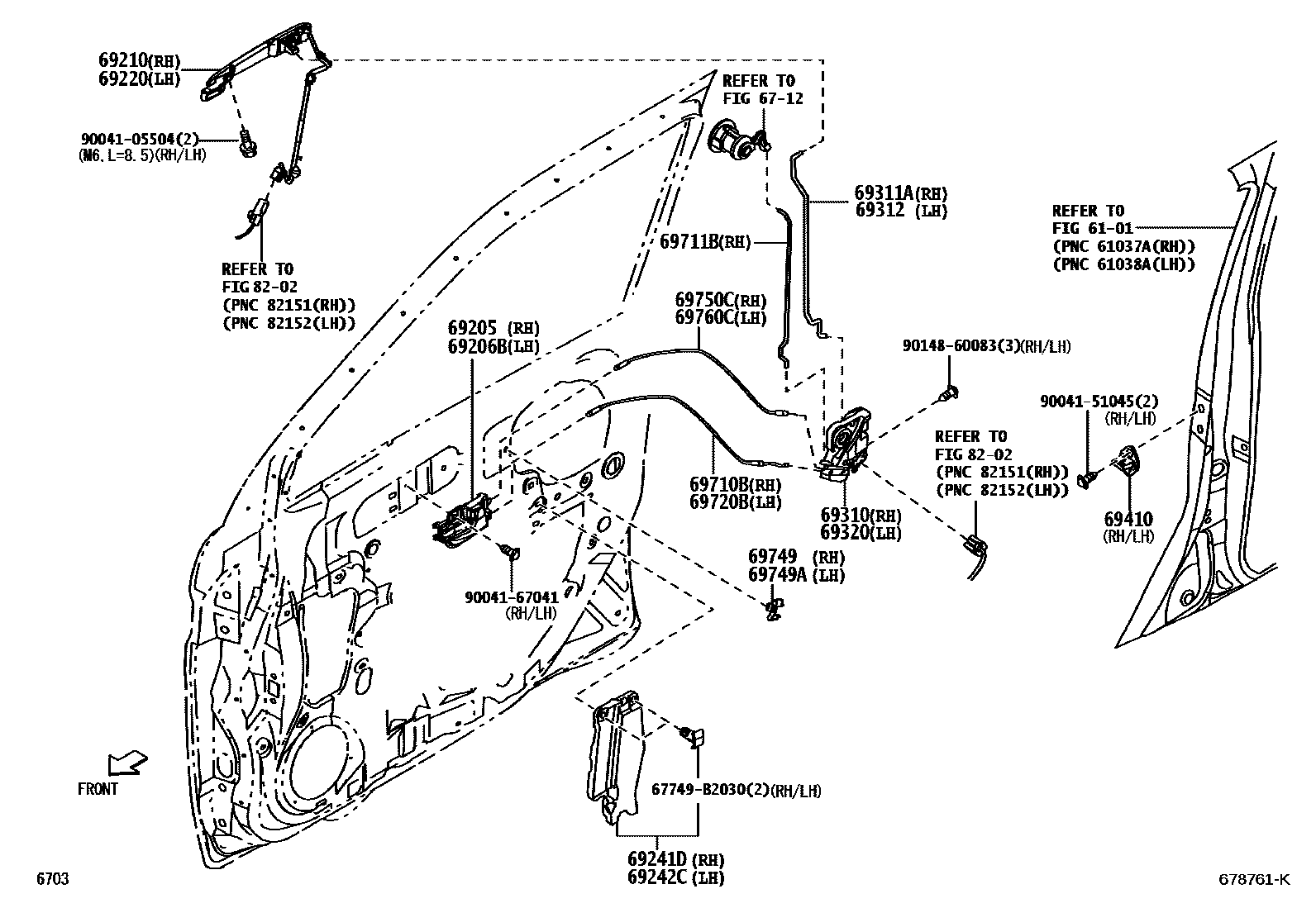

FRONT DOOR LOCK & HANDLE

6101

6712

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-B2112-B1iLA250,260..S201609-201611

DK.GRAY,TRIM1#

main69270-B2112-B1iLA250,260..S201609-201611

DK.GRAY,TRIM1#,2#

main69270-B2112-B1iLA250,260..S201609-201611

DK.GRAY,TRIM1#,4#

main69270-B2112-C0iLA250,260..FG,FGT,FX201611-201710

BLACK,TRIM1#,4#

main69270-B2112-C0iLA250,260..S201611-202001

BLACK,TRIM1#

main69270-B2112-C0iLA250,260..S201611-202001

BLACK,TRIM1#,2#

main69270-B2112-C0iLA250,260..FX201710-202306

BLACK,TRIM4#

main69270-B2112-C0iLA250,260..FX201710-202306

BLACK,TRIM3#,4#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-B2122-B1iLA250,260..S201609-201611

DK.GRAY,TRIM1#

main69280-B2122-B1iLA250,260..S201609-201611

DK.GRAY,TRIM1#,2#

main69280-B2122-B1iLA250,260..S201609-201611

DK.GRAY,TRIM1#,4#

main69280-B2122-C0iLA250,260..FG,FGT,FX201611-201710

BLACK,TRIM1#,4#

main69280-B2122-C0iLA250,260..S201611-202001

BLACK,TRIM1#

main69280-B2122-C0iLA250,260..S201611-202001

BLACK,TRIM1#,2#

main69280-B2122-C0iLA250,260..FX201710-202306

BLACK,TRIM4#

main69280-B2122-C0iLA250,260..FX201710-202306

BLACK,TRIM3#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-B2280-B0iLA250,260..CG,CGT,CX201609-201710

SILVER ME.,B79 ,B80 ,G57 ,R67 ,R71 ,S28 ,W24 ,X07

main69210-B2280-B0iLA250,260..CG,CGT,CX201710-202001

SILVER ME.,B79 ,B80 ,G55 ,R67 ,W24 ,X07 ,Y13

main69210-B2410iLA250,260..FG,FGT,FX,S201609-202306

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-B2370-B0iLA250,260..CG,CGT,CX201609-201710

SILVER ME.,B79 ,B80 ,G57 ,R67 ,R71 ,S28 ,W24 ,X07

main69220-B2370-B0iLA250,260..CG,CGT,CX201710-202001

SILVER ME.,B79 ,B80 ,G55 ,R67 ,W24 ,X07 ,Y13

main69220-B2400iLA250,260..FG,FGT,FX,S201609-202306

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main75787-B2190iLA250,260201609-202306

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main75788-B2190iLA250,260201609-202306

69310LOCK ASSY, FRONT DOOR, RH

main69310-B2420iLA250,260201609-202306

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-B2220iLA250,260201609-202306

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-B2210iLA250,260201609-202306

69320LOCK ASSY, FRONT DOOR, LH

main69320-B2352iLA250,260201609-201610

sub69320-B2353

main69320-B2353iLA250,260201610-202306

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-B2020iLA250,260201609-202306

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-B2250iLA250,260201609-202306

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-B2160iLA250,260201609-202306

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-B2250iLA250,260201609-202306

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iLA250,260201609-202306

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-32040iLA250,260201609-202306

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-B2240iLA250,260201609-202306

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-B2240iLA250,260201609-202306

8202

67749B2030CLIP, DOOR TRIM MOULDING

main67749-B2030

9004105504

main90041-05504

9004151045

main90041-51045

9004167041

main90041-67041

9014860083

main90148-60083

26 parts on this diagram · 1 diagram in section
