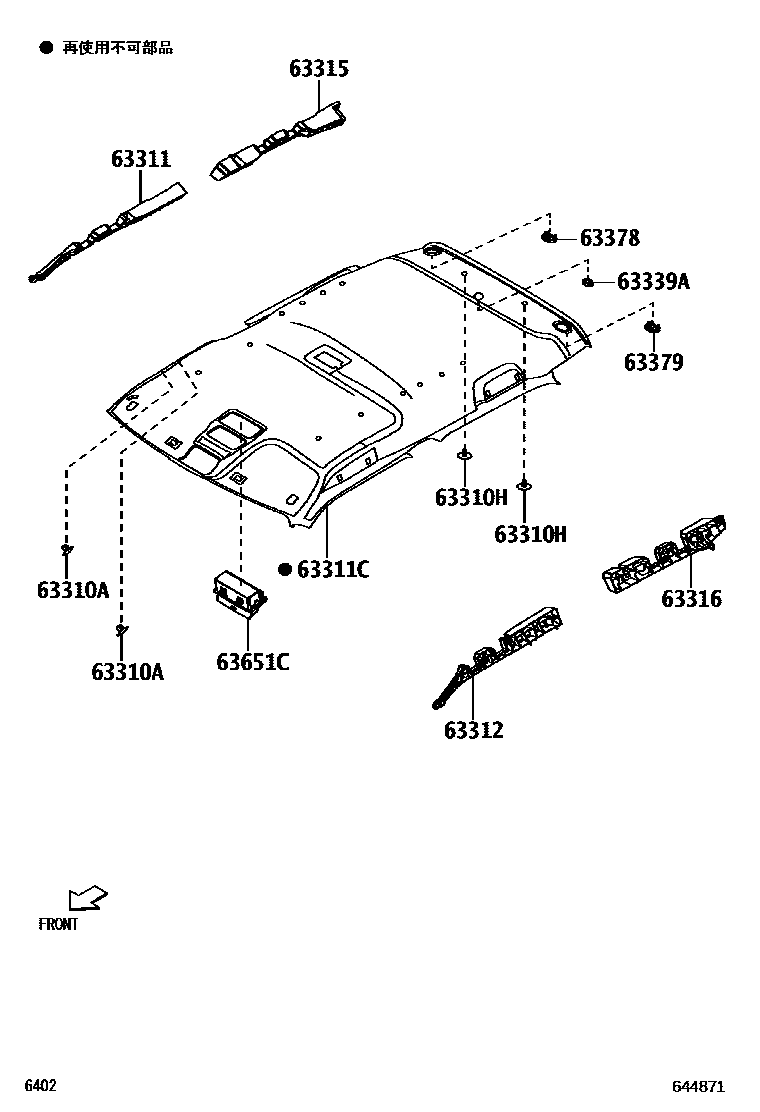

ROOF HEADLINING & SILENCER PAD

63310APLUG, HOLE(FOR ROOF HEADLINING ASSY)

main58707-B2060-B0×2iLA250,260..CG,CGT,CX; LA250,260..S201609-202001

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#

63310HCLIP(FOR ROOF HEADLINING)

main90044-67467-B2×2iLA250,260..CG,CGT,CX; LA250,260..S201609-202001

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#

63311GARNISH, ROOF HEADLINING, FRONT RH

main63691-B2140iLA250,260..FG,FGT,FX201609

main00000-00000iLA250,260..S201710-202001

63311CHEADLINING, ROOF

main63311-B2050-B0supersedes 63311-B2020-B0iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX; LA250,260..S201609-201710

main63311-B2110-B0supersedes 63311-B2100-B0iLA250,260..FG,FGT; LA250,260..FX201710

63312GARNISH, ROOF HEADLINING, FRONT LH

main63692-B2140iLA250,260..FG,FGT,FX201609

main00000-00000iLA250,260..S201710-202001

63315GARNISH, ROOF HEADLINING, REAR RH

main63693-B2160iLA250,260..CG,CGT,CX,S201609-202001

main00000-00000iLA250,260..S201710-202001

63316GARNISH, ROOF HEADLINING, REAR LH

main63694-B2160iLA250,260..CG,CGT,CX,S201609-202001

main00000-00000iLA250,260..CG,CGT,FG,FGT,S201609-201710

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-B1010-B1iLA250,260..FG,FGT,FX201609-201710

63378COVER, ROOF HEADLINING REAR TRIM, RH

main63378-B2010-B0iLA250,260..FG,FGT,FX201609-201710

LT.GRAY,TRIM1#,4#

63379COVER, ROOF HEADLINING REAR TRIM, LH

main63378-B2010-B0iLA250,260..FG,FGT,FX201609-201710

LT.GRAY,TRIM1#,4#

63651CBOX, ROOF CONSOLE

main63650-B2070-B0iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX; LA250,260..S201609-201706

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,4#

main63650-B2071-B0iLA250,260..FG,FGT,FX201707-201710

LT.GRAY,TRIM1#,4#

11 parts on this diagram · 1 diagram in section
