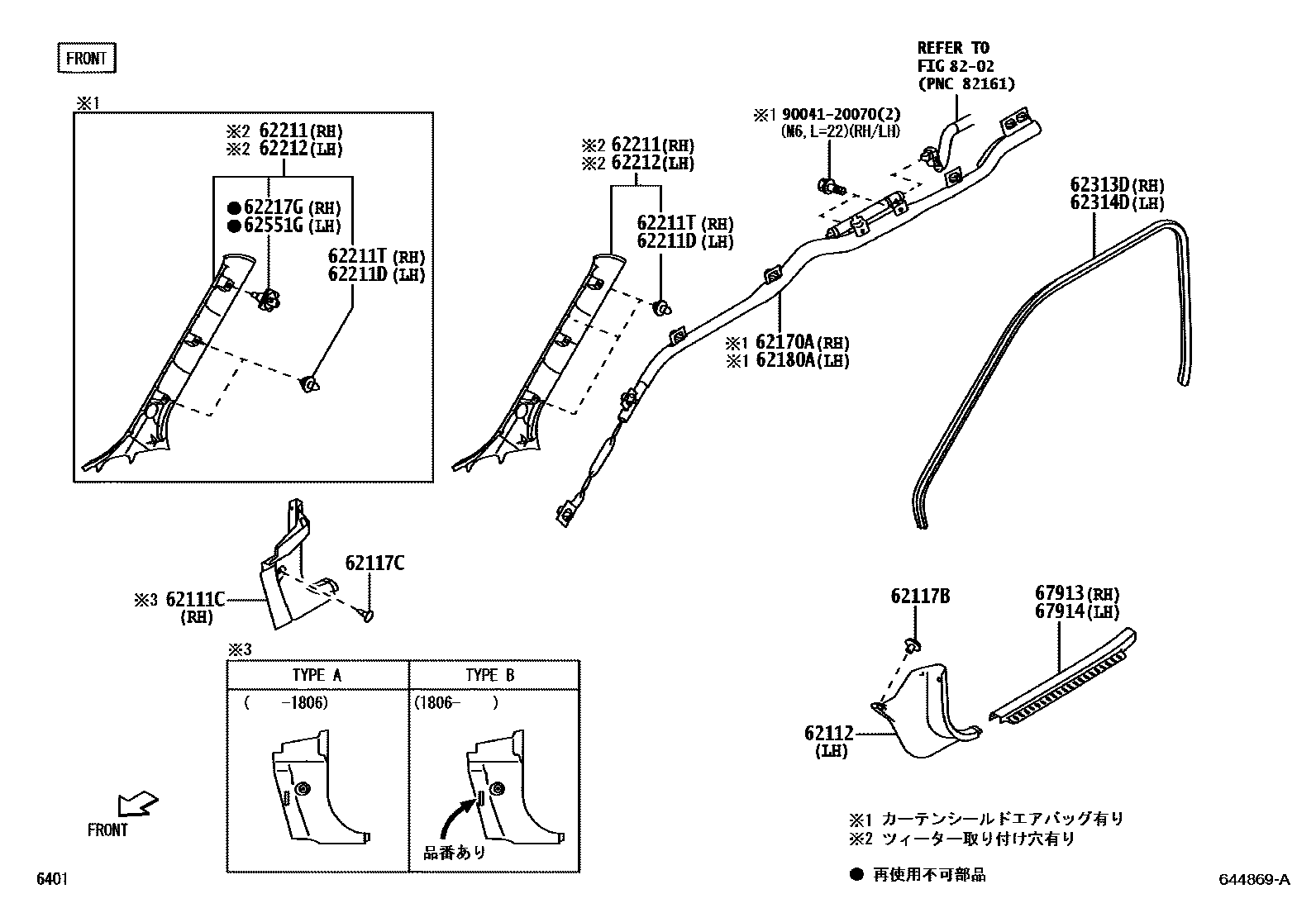

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1���� 0002 1��

62111CBOARD, COWL SIDE TRIM, RH

main62111-B2210-B0iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX; LA250,260..S201609-201704

main62111-B2210-C0iLA250,260..FG,FGT,FX201704-201710

main62111-B2300-C0iLA250,260..CG,CGT,CX; LA250,260..S201806-202001

62112BOARD, COWL SIDE TRIM, LH

main62112-B2180-B0iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX; LA250,260..S201609-201611

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,2#; DK.GRAY,TRIM1#,4#

main62112-B2180-C0iLA250,260..FG,FGT,FX201611-201710

BLACK,TRIM1#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90044-67397iLA250,260201609-202306

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90044-67579-B0iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX; LA250,260..S201609-201611

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,2#; DK.GRAY,TRIM1#,4#

main90044-67579-C2iLA250,260..FG,FGT,FX201611-201710

BLACK,TRIM1#,4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-B2120iLA250,260..S..PS2;LA250,260..(CG,CGT,FG,FGT,S)..PS1201609-201812

main62170-B2121iLA250,260..S201901-202001

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-B2120iLA250,260..S..PS2;LA250,260..(CG,CGT,FG,FGT,S)..PS1201609-201812

main62180-B2121iLA250,260..S201901-202001

62211GARNISH, FRONT PILLAR, RH

main62211-B2570-B0iLA250,260..FG,FGT; LA250,260..FX201710-202306

LT.GRAY,TRIM3#,4#; LT.GRAY,TRIM4#

main62211-B2590-B0iLA250,260..S..PS2;LA250,260..(FG,FGT,S)..PS1201609-202001

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main67771-B2010×3iLA250,260201609-202306

62211TCLIP(FOR FRONT PILLAR GARNISH)

main67771-B2010×3iLA250,260201609-202306

62212GARNISH, FRONT PILLAR, LH

main62212-B2570-B0iLA250,260..FG,FGT; LA250,260..FX201710-202306

LT.GRAY,TRIM3#,4#; LT.GRAY,TRIM4#

main62212-B2590-B0iLA250,260..S..PS2;LA250,260..(FG,FGT,S)..PS1201609-202001

62217GCLIP, FRONT PILLAR GARNISH

main62217-20010iLA250,260..S..PS2;LA250,260..(CG,CGT,FG,FGT,S)..PS1201609-202001

62313DTRIM, FRONT DOOR OPENING, RH

main62313-B2420-C0iLA250,260..CG,CGT,CX; LA250,260..S201609-202001

BLACK,TRIM1#; BLACK,TRIM1#,2#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-B2420-C0iLA250,260..FG,FGT; LA250,260..FX201710-202306

BLACK,TRIM3#,4#; BLACK,TRIM4#

62551GCLIP

main62217-52050iLA250,260..S..PS2;LA250,260..(CG,CGT,FG,FGT,S)..PS1201609-202001

67913PLATE, FRONT DOOR SCUFF, RH

main67913-B2190-B0iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX; LA250,260..S201609-201611

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,2#; DK.GRAY,TRIM1#,4#

main67913-B2190-C0iLA250,260..FG,FGT,FX201611-201710

BLACK,TRIM1#,4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-B2190-B0iLA250,260..CG,CGT,CX; LA250,260..FG,FGT,FX; LA250,260..S201609-201611

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,2#; DK.GRAY,TRIM1#,4#

main67914-B2190-C0iLA250,260..FG,FGT,FX201611-201710

BLACK,TRIM1#,4#

8202WIRING & CLAMP

→ Go to FIG 82-02

9004120070

main90041-20070

18 parts on this diagram · 2 diagrams in section
